Summary of Contents for Chiayo DH2400

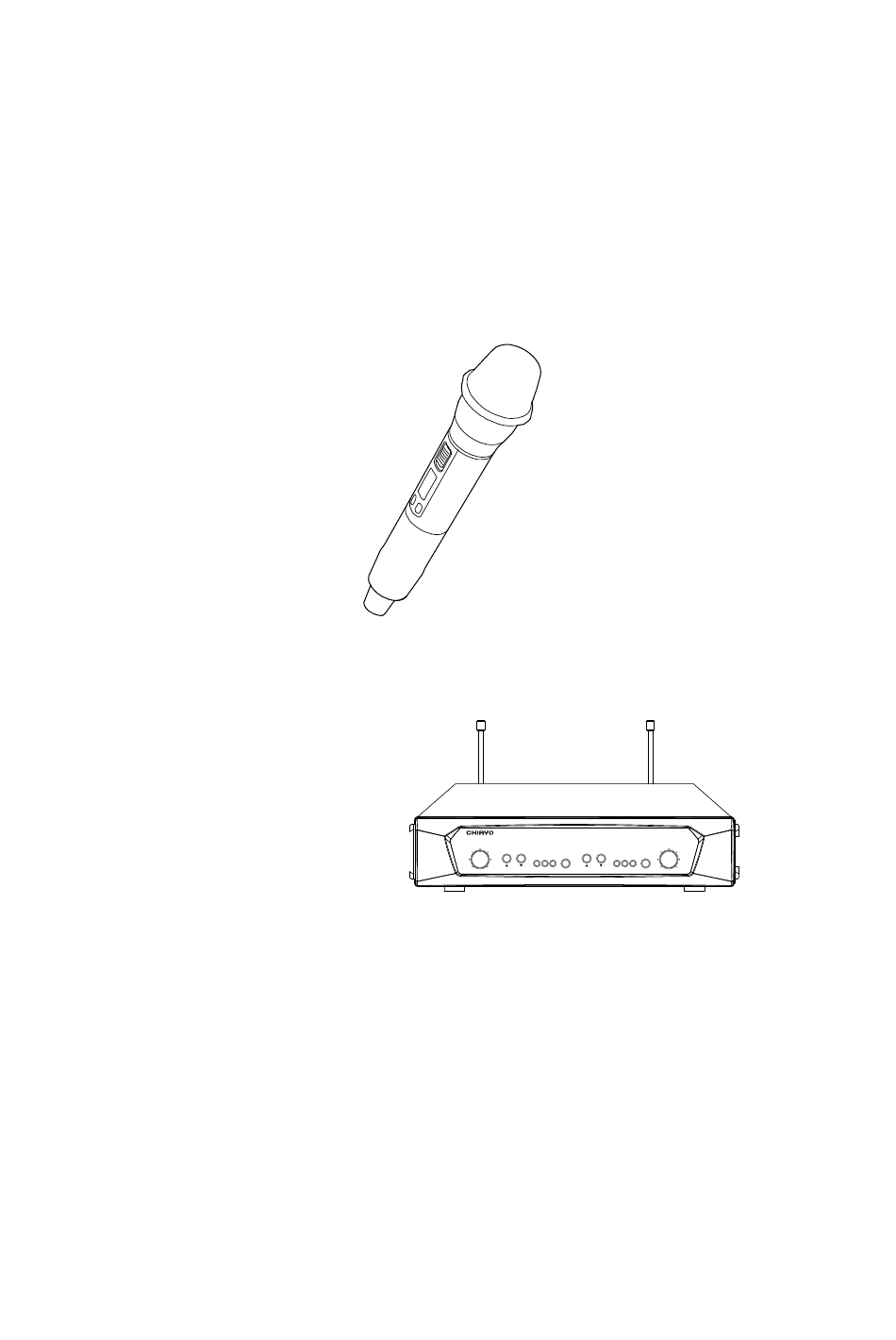

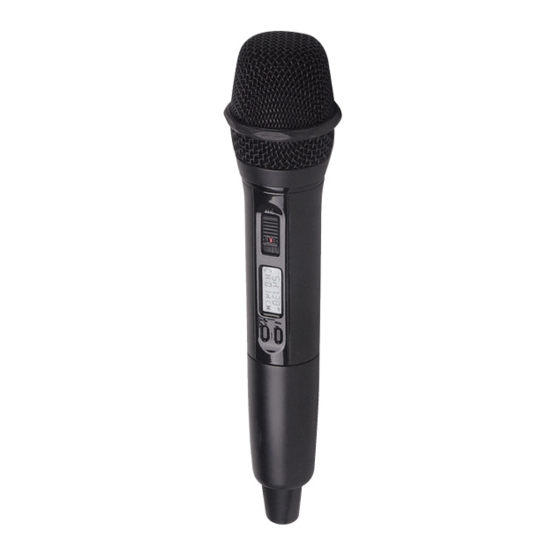

- Page 1 DH-2400 Digital Handheld Microphone NDR-3120 DIVERSITY RECEIVER CHANNEL 1 SYNC CHANNEL 2 SYNC M IN M IN...
-
Page 2: Parts And Functions
Parts and functions Cartridge Battery power LED Power switch Setting button Menu button Channel synchronizing button attery compartment Color cap Charging port 3-STEP power switch To prevent other user from turning off the power, you may slide this switch to the right to lock the microphone on stand-by or mute status. Slide to the left to unlock. - Page 3 Battery installation & indicator When the transmitter is switched If the LED remains illuminated, it ON, a blue LED will blink once to means the batteries are weak and denote the batteries installed are require replacement. in good condition. This transmitter requires 2 x AA To install, remove the battery cover batteries to operate.
- Page 4 Changing CHANNEL / FREQUENCY Press-release MENU button until the CHANNEL-FREQUENCY page appears. CH:079 2480 Press and hold SET button until the channel number flashes to denote readiness for setting. CH:079 2480 Press-release SET (UP) or MENU (DOWN) button to select a new channel.
- Page 5 Channel synchronizing of the receiver and transmitter Unscrew the microphone’s lower housing and then press and hold the synchronizing button until LINK flashes on the LCD. CH:000 LINK Press and press and hold the receiver’s SYNC button until the frequency icon appears.
-
Page 6: Battery Type Setting
Battery type setting Press-release MENU button until the CHANNEL-BATTERY TYPE page appears. CH:076 AKLN Press and hold SET button until NIMH or AKLN flashes to denote readiness for setting. CH:076 AKLN Press-release SET or MENU button to select either NiMH (rechargeable battery) or AKLN (alkaline battery). -
Page 7: Rf Power Setting
RF power setting Press-release MENU button until the CHANNEL-RF POWER page appears. CH:076 RF08 Press and hold SET button until the RF power figure flashes to denote readiness for setting. CH:076 RF08 Press-release SET (UP) or MENU (DOWN) button to choose an output level from 0db to 20db. - Page 8 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Frequency: 2400~2483.5MHz Maximal power: 9.14mW CE declaration info: www.chiayo.com.tw/declaration.html...
- Page 9 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
