- Page 1 UHF 2-Way Synchronising True Diversity / Diversity Wireless Microphone System Operation Manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT...
-
Page 2: Front Panel

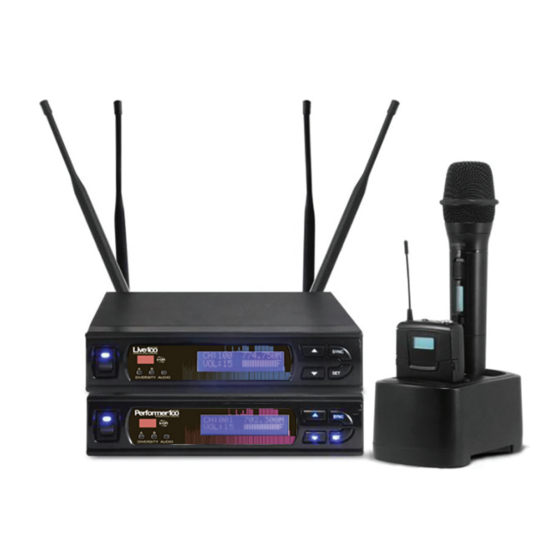

Thank you for choosing this wireless microphone system! Our products are designed to last and for user-friendly operation. Each system consists of: 1. A receiver 2. A handheld or beltpack transmitter 3. A pair of antennas 4. A switching adaptor 5. - Page 3 10. Antenna B socket (TNC) 11. Balanced audio output 12. Unbalanced audio output 13. Antenna A socket (TNC) 14. DC in Changing CHANNEL / FREQUENCY First, press "SET" till the display shows Then press UP or DOWN to select a new channel. As the channel changes, the frequency changes accordingly, too.
- Page 4 Adjusting VOLUME level The setting can be made right on the main menu Press UP or DOWN to choose a new level. After the setting is made, the data will be automatically saved. Adjusting SQUELCH level First, press "SET" till the display shows Then press UP or DOWN to choose a new level.
- Page 5 UHF handheld microphones（SQ-6100 IrDA/SQ-2100 IrDA/SQ-1100 IrDA） SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Parts and functions SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Cartridge Battery power LED Power switch Menu button Setting button IrDA synchronising button Battery compartment Color cap IrDA sensor area Charging port Battery installation &...
- Page 6 Channel synchronising of the receiver and microphone 1. Limit the distance between the receiver and transmitter within 30cm. 2. Align both sensor areas 3. To change the receiver’s channel, please press the synchronising button of the microphone. The microphone's LED will grow to imply synchronising signal transmitted to the receiver and change its channel.
- Page 7 UHF belt-pack transmitters（SM-7100 IrDA/SM-6100 IrDA/SM-1100 IrDA） 11 12 SM-7100 IrDA/SM-6100 IrDA SM-1100 IrDA Parts and functions SM-7100 IrDA SM-6100 IrDA SM-1100 IrDA Antenna Cover release button Power switch IrDA synchronising button Menu button Setting button High-impedance gain control (GT) Low-impedance gain control (MT) Battery compartment Audio mute switch Battery power LED...
- Page 8 Battery installation & indicator This belt-pack requires 2 x AA batteries to operate. To install, open the battery cover using the cover release buttons and insert the batteries into the battery compartment. Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period.
- Page 9 2. Battery type setting Use SET button to go to the BATTERY TYPE page.︰ After pressing the SET button for 3 seconds, the cursor will flash to allow changes to be made. Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery). 3 seconds after selecting a channel, it will be automatically saved.
- Page 11 -10-...
- Page 13 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan / Tel: 886-2-27415741 / Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan / Tel: 886-5-2711000 / Fax: 886-5-5767611 12I1311...
