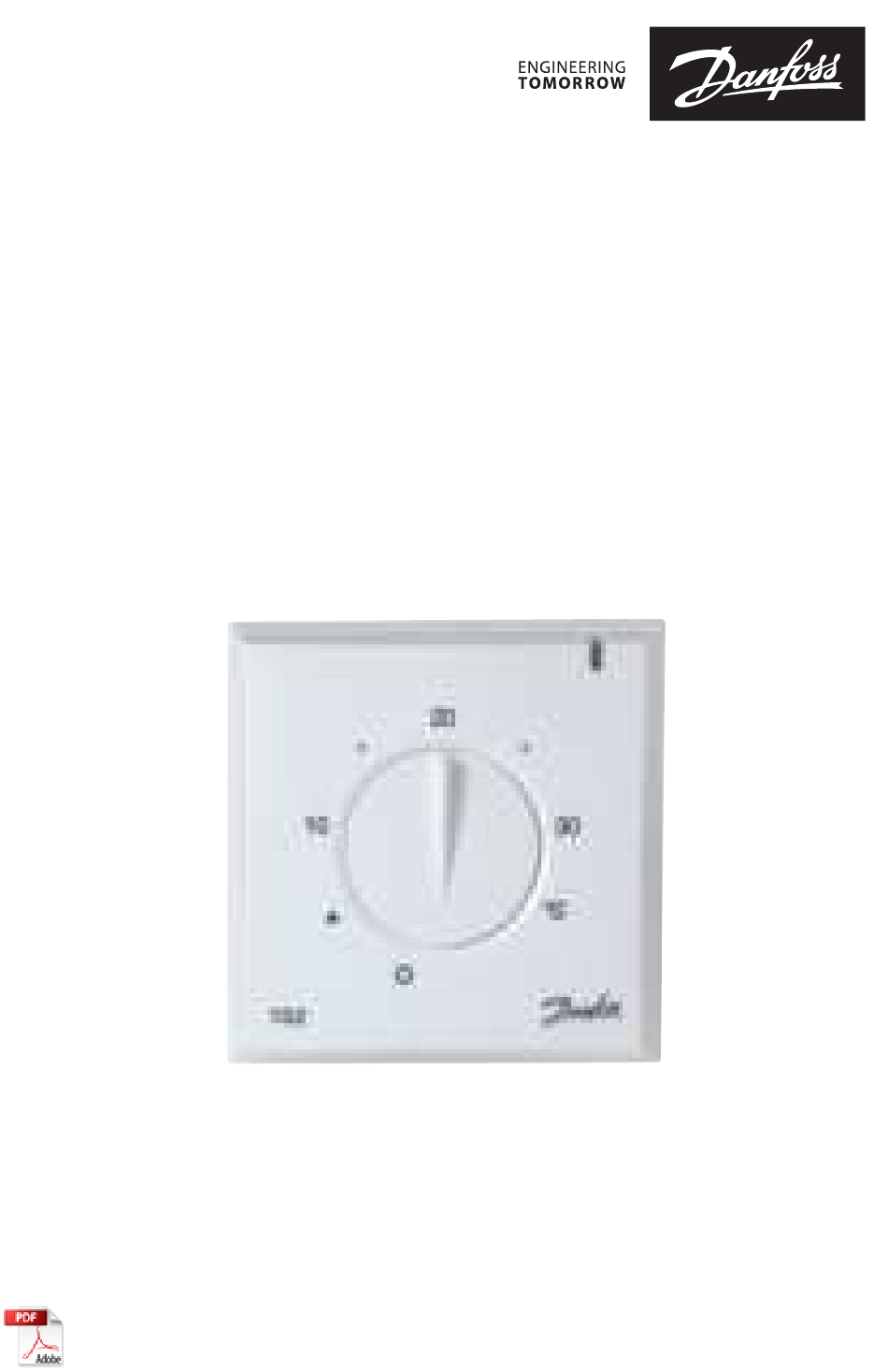

- Page 1 Installation Guide ECtemp 132 Electronic Thermostat electricheating.danfoss.com...
- Page 2 ECtemp 132 Installation Guide...
- Page 3 Disposal Instruction ....16 Introduction ECtemp 132 is an electronic thermostat to be installed di- rectly on the wall. It is provided with a room sensor to control the room temperature and an additional floor sensor to limit...
- Page 4 ECtemp 132 Technical Specifications Operation voltage 220-240 V~, 50 Hz Standby power consump- Max 5 W tion Relay: Resistive load Max 16 A / 3680 W @ 230 V Inductive load cos φ= 0.3 max 1 A Sensing units NTC 15 kOhm at 25 °C Sensing values: 0 °C...
- Page 5 ECtemp 132 IP class Protection class Class II - Dimensions 82 x 82 x 36 mm Weight 90 g The product complies with the EN/IEC Standard «Automatic electrical controls for household and similar use»: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) Safety Instructions Make sure the mains supply to the thermostat is turned off...
- Page 6 ECtemp 132 • The sensor is to be considered as live voltage. Have this in mind if the sensor must be extended. • Always connect the thermostat to continuous power supply. • Do not expose the thermostat to moisture, water, dust, and excessive heat.
- Page 7 ECtemp 132 Do not place the thermostat in a way that it will be exposed to direct sunlight. Note: A floor sensor enables a more accurate temperature control and is recommended in all floor heating applications and mandatory under wooden floors to reduce the risk of over-heating the floor.
- Page 8 ECtemp 132 Follow the steps below to mount the thermostat: Open the thermostat: • Remove the button to get access to the screw which holds the front. • Loosen the screw. • Push down the release tab at the top of the thermostat using a flat object while slowly pulling off...
- Page 9 ECtemp 132 Fasten the thermostat directly to the wall by driving the screws through the holes in each side of the thermostat. = Screw holes for fastening the thermostat. Connect the thermostat according to the connection diagram. LOAD LOAD Max.Load...
- Page 10 ECtemp 132 Set the maximum floor temperature between 20° and 50 °C by using a thin screwdriver on the black electronic component with temperature indications in the upper right corner. Install the front cover and button in the reverse order of disassembly.
- Page 11 ECtemp 132 • The temperature of the bottom of a wooden floor can be up to 10 degrees higher than the top. • Floor manufactures often specify the max temperature on the top surface of the floor (usually 27-28 °C).
- Page 12 ECtemp 132 Thermal Examples of Details Approximate resist- flooring setting for ance 25 °C floor [m²K/W] temperature 0,05 8 mm HDF > 800 28 °C based laminate kg/m³ 0,10 14 mm beech 650–800 31 °C parquet kg/m³ 0,13 22 mm solid oak >...
- Page 13 ECtemp 132 Installation Guide...
- Page 14 All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The Danfoss warranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and effective response to...
- Page 15 WARRANTY CERTIFICATE The Danfoss warranty is granted to: Address Stamp Purchase date Serial number of the product Product Art. No. *Connected output [W] Installation Date Connection Date & Signature & Signature *Not mandatory...
- Page 16 ECtemp 132 Disposal Instruction Installation Guide...
- Page 17 ECtemp 132 Installation Guide...
- Page 18 ECtemp 132 Installation Guide...
- Page 19 Danfoss ECtemp 132 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 8091277 & AQ059486451969en-010105 Produced by Danfoss © 04/2024...
- Page 20 ECtemp 132 WE C-skala 088L0032 220-240V~ Product Documentation 50-60Hz~ +5 to +35°C Temp. Limit +20 to +50°C 16A/3680W@230V~ IP 30 d Designed in Denmark for Danfoss A/S 5 703466 126738...
