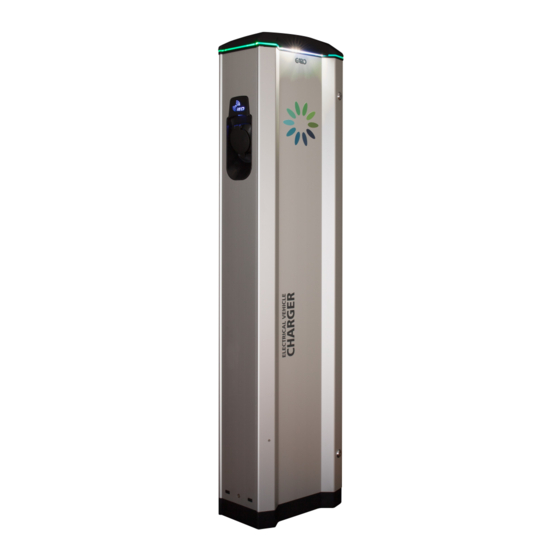

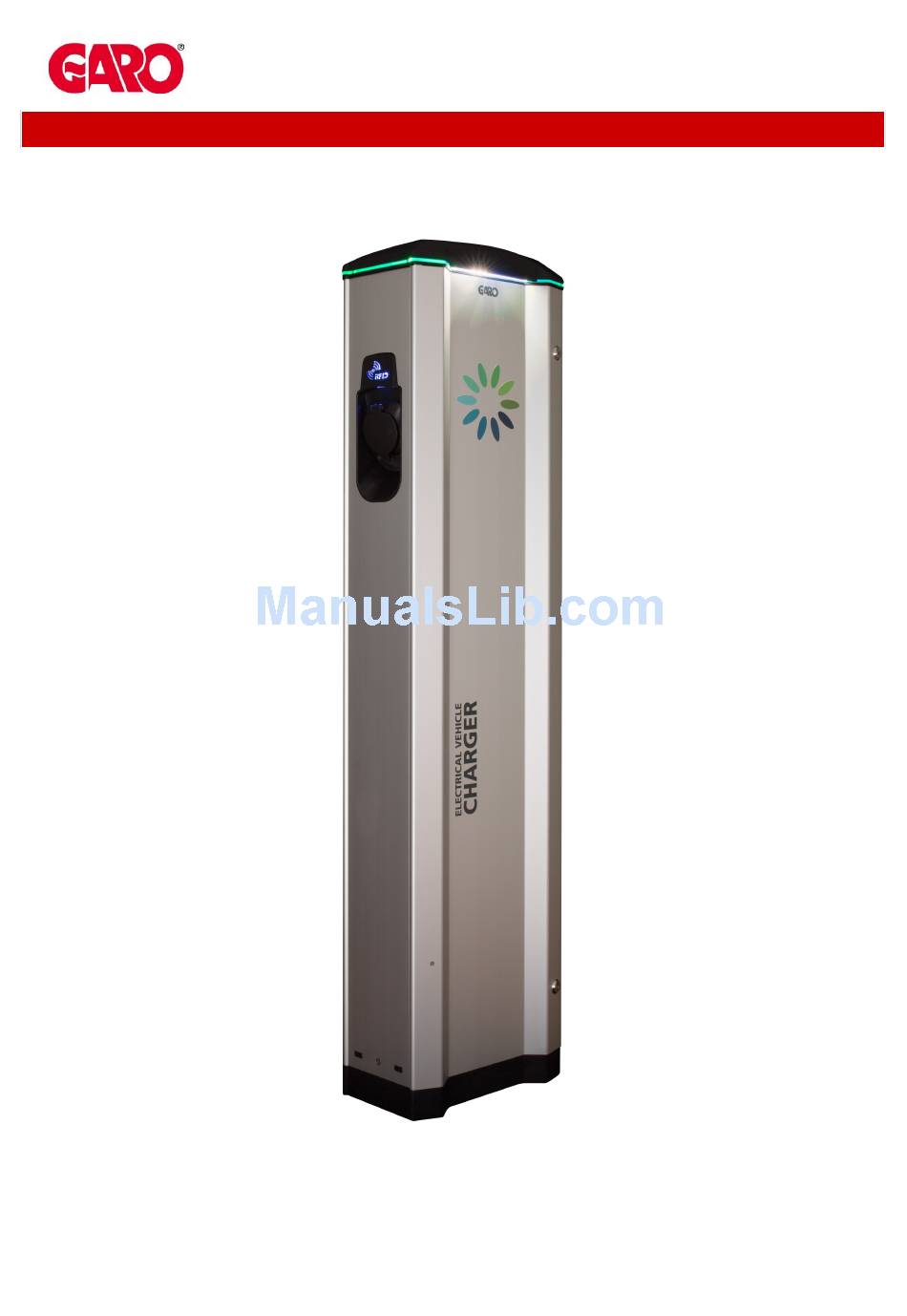

- Page 1 MANUAL CHARGING STATION LS4 LS4 Charging Station Installation/service manual 41778 REV 0 2016-06-20...
- Page 2 MANUAL CHARGING STATION LS4. Dimensional drawing LS4 Dimensional drawing 41778 REV 0 2016-06-20...
- Page 3 MANUAL CHARGING STATION LS4. Dimensional drawing Location of individual markings/ LS4 Dimensional Foiling dimensions drawing Note: On the rear of the LS4, approx. 5 mm of the foiling will be behind the seal 41778 REV 0 2016-06-20...
-
Page 4: Installation Options
MANUAL CHARGING STATION LS4. Dimensional drawing Installation options A. Bolted in concrete B. With ground fixture C. With wall bracket Installation descriptions, see pages 7–9 41778 REV 0 2016-06-20... - Page 5 MANUAL CHARGING STATION LS4. Charge indication Inclined RFID reader incident light (certain models) Type 2 outlet The basic version is LS4 Charging Station prepared for bolting into concrete 41778 REV 0 2016-06-20...
- Page 6 MANUAL CHARGING STATION LS4, CHARGE INDICATION Charge indication There is a lighting strip for charge indication at the top of the LS4 Charging Station. The significance of the colours is described here. Charging in general Solid green light: Ready for charging ...
- Page 7 MANUAL CHARGING STATION LS4, Installation of wall bracket 41778 REV 0 2016-06-20...
- Page 8 MANUAL CHARGING STATION LS4, Installation of ground fixture Hole for cable = Top Ground level 1. Embed the ground fixture, thread a 2. Place LS4 on the ground fixture sufficient length of cable through the and secure with the four screws hole.
- Page 9 MANUAL CHARGING STATION LS4, Installation of Ø 60 tube. 41778 REV 0 2016-06-20...
- Page 10 MANUAL CHARGING STATION LS4, Phase distribution 41778 REV 0 2016-06-20...
- Page 11 If you have questions about service or a need for service, GARO suggests that you contact EV Charge Partner, which specialises in servicing GARO charging stations and has a nationwide service organisation.
- Page 12 4. Create an earth fault by pressing the test button marked “T” on the earth fault breaker. Check that the charge indication changes colour to red for the side whose outlet was tripped. 5. Check the charging station’s function using GARO’s test equipment. Follow the instructions on the charging station to start charging a.
