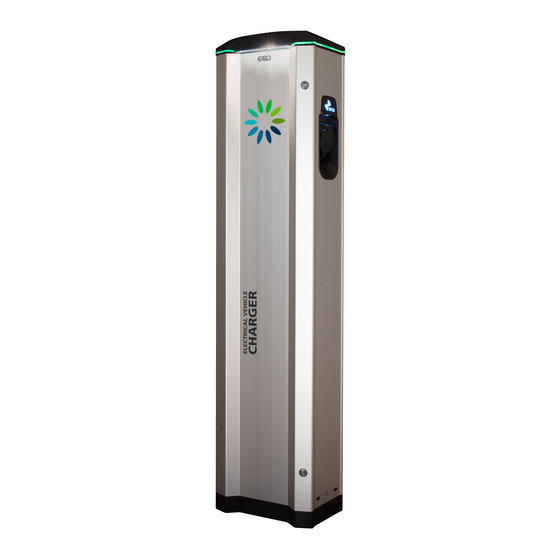

GARO LS4 Operational Instructions
  1. Manuals
  2. Brands
  3. GARO Manuals
  4. Automobile Battery Charger
  5. LS4 Wallmounted
  6. Operational instructions

GARO LS4 Operational Instructions

Hide thumbs Also See for LS4:
Table of Contents

Advertisement

Quick Links

Download this manual
LS4 & GLB+
Operational Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GARO LS4

Summary of Contents for GARO LS4

  • Page 1 LS4 & GLB+ Operational Instructions...

  • Page 2: Table Of Contents

    Contents • Component Overview ◦ Interior Bottom........ ◦ Interior Lower Middle..... ◦ Interior Upper Middle..... ◦ Interior Top........• Connecting the Power......• Accessing the Web-Interface..... • Adding the RFID cards......• Setting DLM + External Meter.... ◦ Explanation of DLM Parameters..◦...

  • Page 3: Interior Bottom

    Interior Bottom Interior (Lower Middle)

  • Page 4: Interior Upper Middle

    Interior (Upper Middle) Interior (Top)

  • Page 5: Connecting The Power

    Connecting the Laptop computer...

  • Page 6: Accessing The Web-Interface

    Access to the charging stations web interface This description applies to charging stations with two controllers configured as master and slave connected through a USB - MicroUSB cable. 1. Connect the computer to the right controllers (slaves) micro USB port 2.
  • Page 7 The Categories of the web interface The web interface is divided in five different categories. These has different levels of accessibility: • State (read only) – The startup page of the web interface gives an overview of the charger status for charging sessions, meter values, connectivity, firmware and alarms. The state view can only be used for reading values and parameters.

  • Page 8: Adding The Rfid Cards

    Adding RFID Cards Connect USB /usb micro to RHS slave controller config port & to laptop. Enter 192.168.123.123/operator • SelectMASTER • Select OPERATOR • Enter user: operator • Enter password: yellow_zone (for version4.2) Cherry_zone (for version4.3) • Scroll down to Free Charging (approx. half way) •...

  • Page 9: Setting Dlm + External Meter

    Setup of DLM with external (Secondary) Meter...

  • Page 10: Explanation Of Dlm Parameters

    Same as the one above, but this is configurable downwards (L1/L2/L3)[A] from the backend. (Can never be higher than the EVSE Sub- Distribution Limit (L1/L2/L3)[A]) External Input 1 Config DISABLE (Not yet implemented on the LS4) External Input 2 Config DISABLE (Not yet implemented on the LS4)

  • Page 11: Setting Up External Meter

    Explanation of DLM Master parameters (Secondary meter) External Meter Suport Defines if a secondary meter (measuring the whole buildings total load) is installed. Main Distribution Limit 63 63 63 (L1/L2/L3)[A] The maximum main fuse of the entire premise (build- ing/area/grid). External Meter Disconnected 9999 9999 9999 Fallback (L1/L2/L3)[A]...
  • Page 12 Setting up the secondary meter and Phase rotation on the DLM Master Model of the external meter. Meter configuration (Second) This meter should be addressed “2” and be connected to the DLM masters meter bus. RST (L1/L2/L3, Standard Reference Phasing Phase rotation of the ChargePoint The phase rotation from the grid on the posts incoming...

  • Page 13: Setting Up Dlm Slaves

    Setting up the DLM Slaves DLM Slave (Master Auto Discovery) Dynamic Load Define the role of the controller in the DLM cluster as a Slave that Management automatically will find its master and follow its lead. DLM Network ID Shows which ID (could be any between 0 255). The DLM Slaves will use the is ID to find their specific Master.
