GARO LS4 / LS4 Compact
Installation Manual (EN)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS4 and is the answer not in the manual?

Questions and answers

Related Manuals for GARO LS4

Summary of Contents for GARO LS4

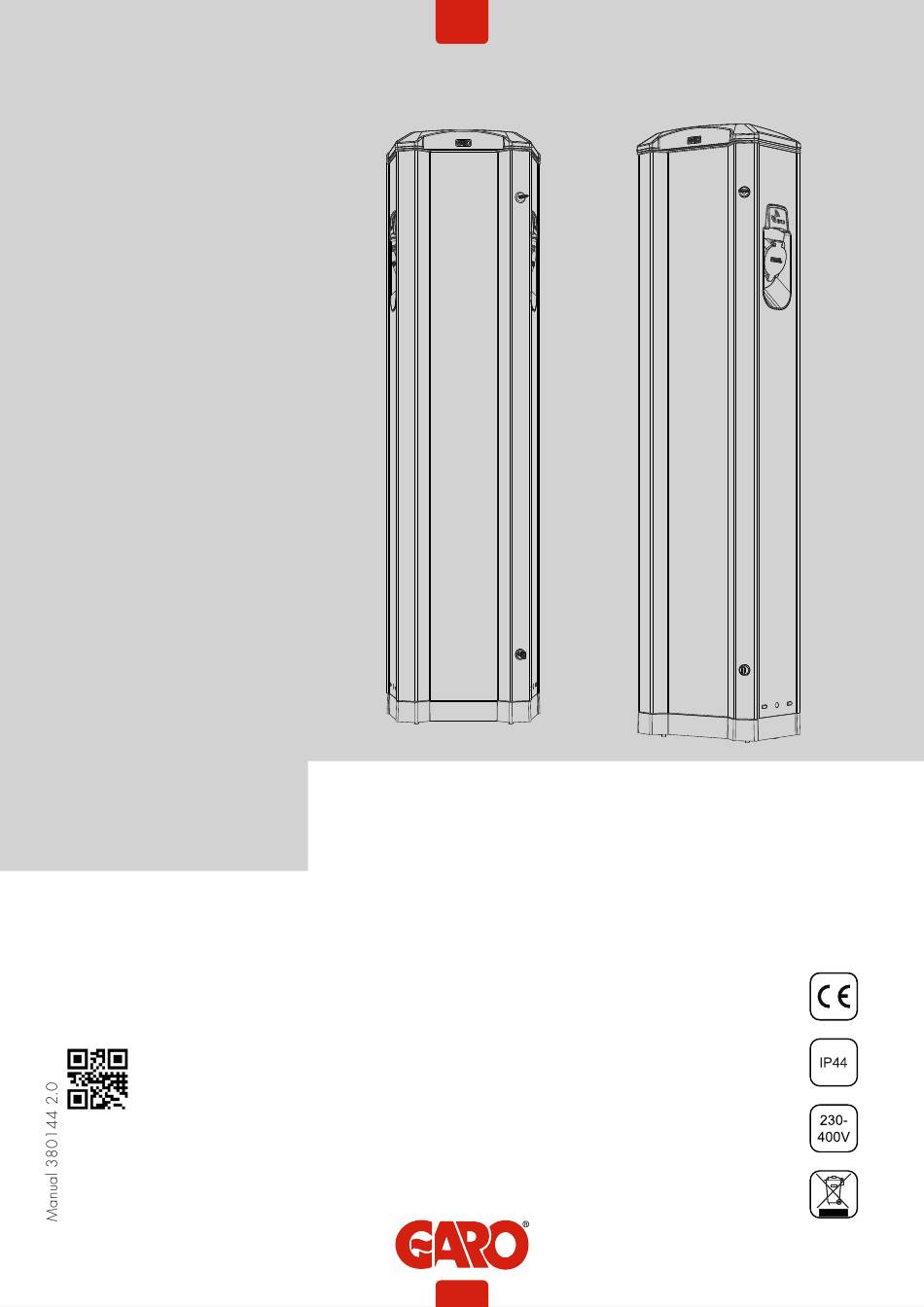

  • Page 1 GARO LS4 / LS4 Compact Installation Manual (EN) GARO AB Box 203, SE–335 25 Gnosjö Phone: +46 (0) 370 33 28 00 info@garo.se garo.se...

  • Page 2: Table Of Contents

    TABLE OF CONTENT Safety Information General Information INSTALLATION NORMAL USE Service / Maintenance LED Indications Technical specifications Service information Form for annual service and maintenence Warranty Conditions Warranty Form / Garantiformulär...

  • Page 3: Safety Information

    Note that 1-phase charging is common in electric solution have the ChargeBoxID (CBID) labeled under the vehicles and L1 in the LS4 is used for this purpose. This is M-number label. valid for both 1-phase and 3-phase LS4 stations.

  • Page 4: Installation

    2nd LS4: L3, L1, L2 Turn on the electric power. 3rd LS4: L2, L3, L1 Test the LS4 station on both sides with a EVSE-tester or an And so on…. EV. In cases where authorization (by RFID tag or similar)

  • Page 5: Normal Use

    Connect the charging cable to the EV. LED INDICATIONS If authorization is activated, please hold a valid RFID-tag against the RFID reader on the side of the LS4 you want to use or use the 3pcs green Flash: Waiting for authorization by app to authorize charging.

  • Page 6: Technical Specifications

    Normally the instructions for the charging station indicate whether it is connected to a superior service. If you have questions about service or a need for service, please contact your GARO retailer.

  • Page 7: Form For Annual Service And Maintenence

    Check Type 2 socket locking function (Type 2 socket versions) Turn off the electrical power Check gaskets Check torque for mains terminals Check torque for LS4 fixing screws towards ground/wall Check torque for connectors on contactors, relays, energymeters and DC-PSU Check connectors on CCU module...

  • Page 8: Warranty Conditions

    WARRANTY CONDITIONS EU Countries (except Sweden) The product benefits from manufacturer´s warranty. The applicable warranty period must be stated in purchase documents from your supplier. The product must be installed by a certified installer / contractor. Proper installation, storage and operation conditions must be obtained. Warranties apply only to products installed in their original installation location.

  • Page 9: Warranty Form / Garantiformulär

    WARRANTY FORM / GARANTIFORMULÄR LS4 Model: M no: Electrical installation data Group fuse (A): Supply cable dimension: Function Test Testbox / EV (model) Date: Sign Installer: Company Name: Owner / Customer Name: Installation adress:...
  • Page 10 CU/AL (picture 1) (picture 2)
  • Page 11 (picture 3) (picture 4)
  • Page 12 3pcs LS4 connected with TP CAT6 cable to router/switch (picture 5) 5pcs LS4 connected with TP CAT6 cable to router/switch (picture 6) Example of DLM meter installation DLM meter Modbus address #2 9600, 8, 1, no parity Terminals: #200 - A-...
  • Page 13 KA1 = Contactor for Heater Cold Options* FC2 = Fuse Right Outlet QA1 = Contactor Left Outlet *Cold Option is optional QA2 = Contactor Right Outlet *RT1 (router) and SW1 (switch) is not XN1 = N Neutral terminal possible in same LS4...
  • Page 14 GARO AB Box 203, SE–335 25 Gnosjö Phone: +46 (0) 370 33 28 00 info@garo.se garo.se...
