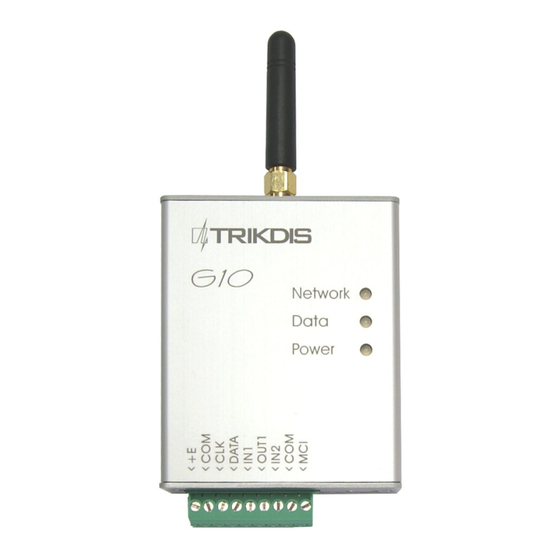

GSM module G10

(v.1.XX)

User manual

JSC UAB "TRIKDIS"
Draugystės str. 17,
LT-51229 Kaunas
LITHUANIA
E-mail: info@trikdis.lt
Webpage: www.trikdis.lt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trikdis G10

Summary of Contents for Trikdis G10

  • Page 1: Gsm Module G10

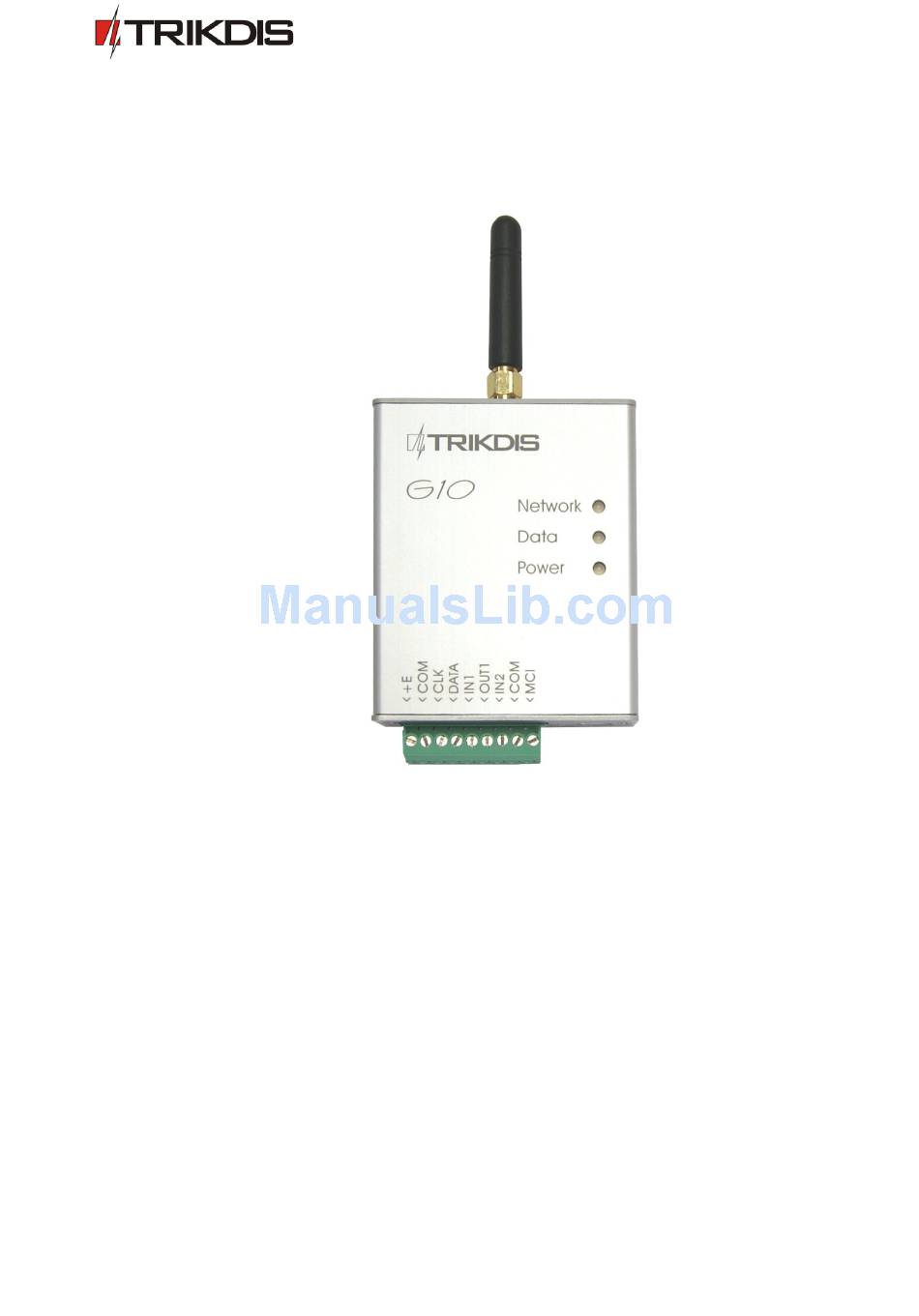

    GSM module G10 (v.1.XX) User manual JSC UAB “TRIKDIS” Draugystės str. 17, LT-51229 Kaunas LITHUANIA E-mail: info@trikdis.lt Webpage: www.trikdis.lt...
