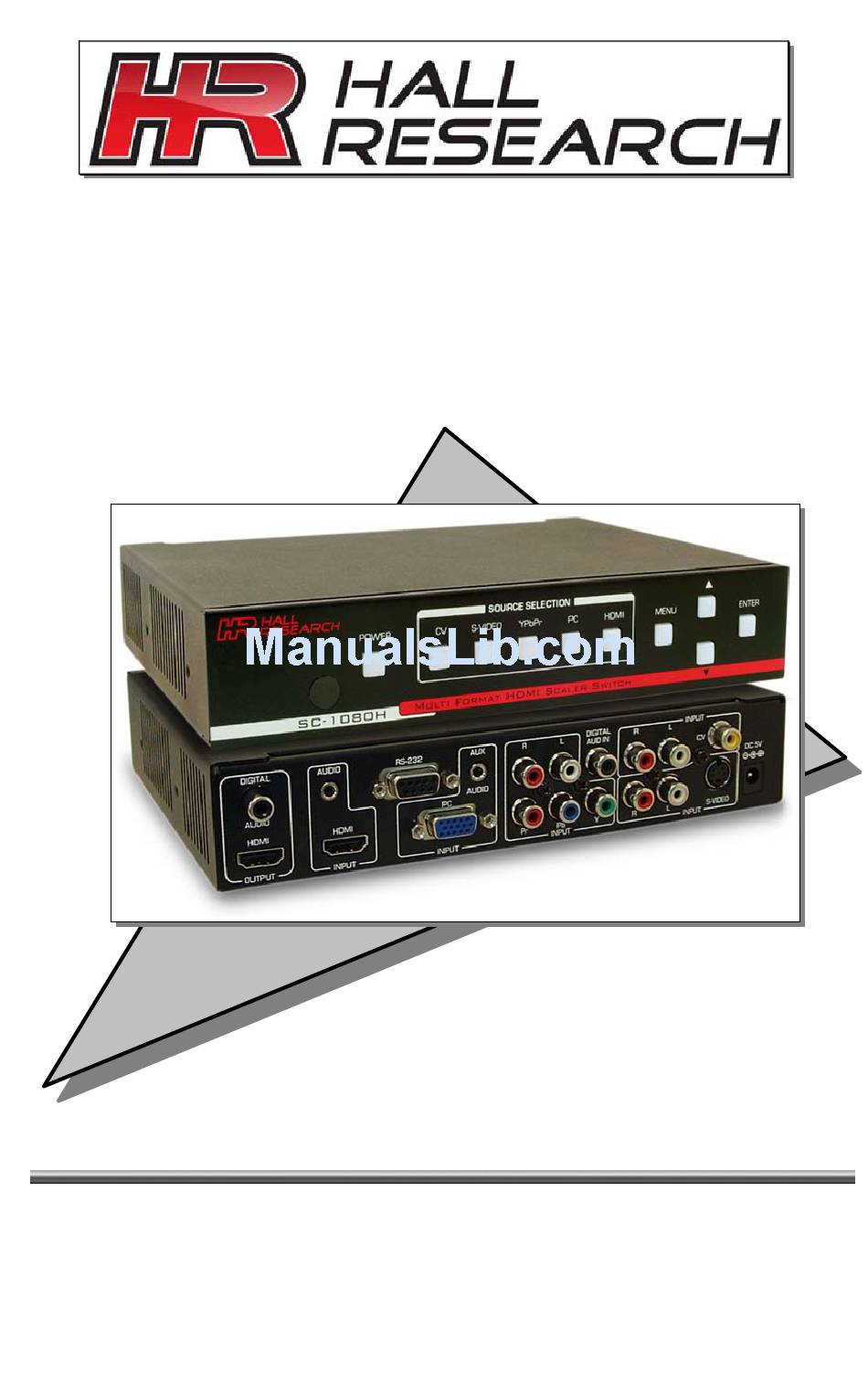

Video to PC/HDTV Switching Scaler
Composite, S-Video, Component, PC and HDMI AV Inputs
HDMI AV Output with Separate Digital Audio Output
Front Panel, IR Remote, & RS-232 Serial Control
MODEL SC1080-H
UMA1165 Rev A
For technical support, Call 714-641-6607 or fax 714-641-6698
SUPPORT &
Order by phone: toll-free in the U.S. 800-959-6439
ORDERING
Web site: www.hallresearch.com
INFORMATION
Hall Research 1163 Warner Ave. Tustin, CA 92780
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hall Research Technologies SC-1080H
Summary of Contents for Hall Research Technologies SC-1080H
- Page 1 Video to PC/HDTV Switching Scaler Composite, S-Video, Component, PC and HDMI AV Inputs HDMI AV Output with Separate Digital Audio Output Front Panel, IR Remote, & RS-232 Serial Control MODEL SC1080-H UMA1165 Rev A For technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT &...
- Page 3 Multi Input Digital Scaler with Audio TRADEMARKS USED IN THIS MANUAL Hall Research, HR, and the logo are trademarks of Hall Research Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio frequency energy and if not...
-
Page 4: Table Of Contents
Model SC1080-H Contents 1. INTRODUCTION ......................3 ......................3 ENERAL ......................4 EATURES 2. INSTALLATION ......................5 ................. 5 ONNECTING THE IDEO INPUTS ..............6 ONNECTING THE CALED UTPUT ..................6 THER ONNECTIONS 3. CONFIGURATION & OPERATION ................7 OSD M VGA I .............. -
Page 5: Introduction

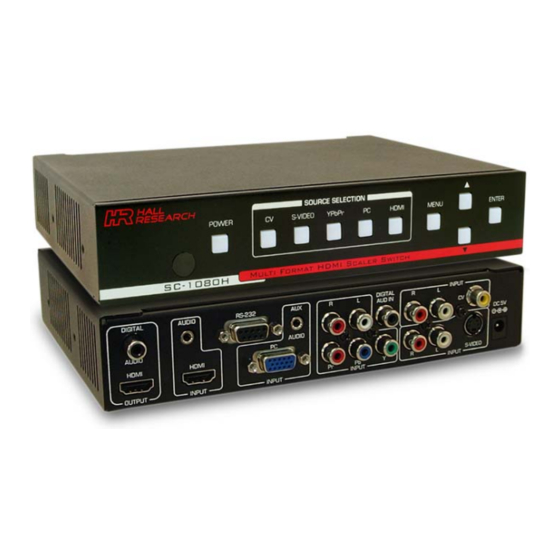

Multi Input Digital Scaler with Audio 1. Introduction General The SC1080-H is a multiple format switching video scaler. It has 5 different types of video inputs and a scaled digital output that can be switched to any of the inputs. The SC1080-H accepts various input formats and resolutions and scales to a specific output format and resolution. -
Page 6: Features
Model SC1080-H Features • HDMI 1.2, HDCP 1.1 and DVI 1.0 Compliant. • 5 different inputs: HDMI, PC, YPbPr, S-video and Composite. • Provides YPbPr HDTV outputs of 480i/p, 576i/p, 720p, 1080i, 1080p and up to WUXGA (1920x1200) PC resolutions •... -
Page 7: Installation
Multi Input Digital Scaler with Audio 2. Installation Connecting the Video inputs The video scaler accepts both TV and PC inputs and scales them to your desired high resolution format output. The TV inputs are composite video (CV), S-Video (Mini-Din connector), YPbPr input (3 RCA connectors), PC (HD15) and HDMI™. -
Page 8: Connecting The Scaled Output
Model SC1080-H Connecting the Scaled Output The output of the SC1080-H can be connected to any HDMI™ compatible LCD, Projector, or Plasma display by using the appropriate cable. Figure 3 - Block Diagram Other Connections RS-232: Connect a serial control device to the 9-pin D-sub connector labeled “RS-232”... -
Page 9: Configuration & Operation
Multi Input Digital Scaler with Audio 3. Configuration & Operation Front Panel Figure 4 - Front Panel . Source Selection: Press the appropriate button to output that connected audio and video selection. . Menu: Press the menu button to bring up the OSD operation menu. . -
Page 10: Osd Menu For Vga Input Signal
Model SC1080-H OSD Menu for VGA Input Signal Top Menu Sub-Menu Value CONTRAST 0 to 100% BRIGHTNESS 0 to 100% H-POSITION 0 to 100% V-POSITION 0 to 100% CLOCK 0 to 100% PHASE 0 to 100% FULL, OVERSCAN, UNDERSCAN, LETTERBOX, SCALE PANSCAN MIRROR... -
Page 11: Osd Menu For Cv, Sv, Ypbpr & Hdmi Input Signals
Multi Input Digital Scaler with Audio 3.3 OSD Menu for CV, SV, YPbPr & HDMI Input Signals Top Menu Sub-Menu Value VIDEO PICTURE MODE STANDARD, MOVIE, VIVID, USER Adj only in USER CONTRAST 0 to 100% PICTURE MODE Adj only in USER BRIGHTNESS 0 to 100% PICTURE MODE... -
Page 12: Infra-Red Remote Control (Ir Remote)
Model SC1080-H Infra-Red Remote control (IR Remote) 1. Power: Power unit ON/OFF. 2. Input: Toggle through input sources. 3. HD: Select Component Input. 4. PC: Select PC input. 5. HDMI/DVI: Select HDMI Input. 6. Output Resolution: Select various output resolutions directly. Others are available via the OSD. -
Page 13: Front Panel Lockout
Multi Input Digital Scaler with Audio Front Panel Lockout Under certain circumstances it may be desirable to disable the front panel controls (e.g. to prevent unauthorized or accidental changes to the settings while the unit is in use). To disable the front panel controls you must use the RS-232 port (see Serial Control section for details). -
Page 14: Serial Control
Model SC1080-H 4. Serial Control The video input selection and signal parameter settings for the SC1080- H can be controlled via an external control system by using the RS-232 port on the unit. Use a straight thru M/F DB9 serial cable to connect the unit to the PC. Only the TX, RX and GND pins are implemented in the connector. -
Page 15: Read Commands
Multi Input Digital Scaler with Audio Read Commands Command Response Description R POWER > POWER ON SHOW POWER STATUS R SOURCE > SOURCE CV~HDMI SHOW SOURCE STATUS R OUTPUT > OUTPUT NATIVE~WUXGA SHOW OUTPUT STATUS R SIZE > SIZE FULL or OVERSCAN or SHOW SIZE STATUS UNDERSCAN or LETTERBOX or PANSCAN... -
Page 16: Key Commands
Model SC1080-H Key Commands Command Response Description K POWER > POWER PRESS POWER BUTTON K MENU > MENU PRESS MENU BUTTON K UP > UP PRESS UP BUTTON K DOWN > DOWN PRESS DOWN BUTTON An invalid command will respond with “K-[??]”<CR> Set Commands Command Response... - Page 17 Multi Input Digital Scaler with Audio S OUTPUT 17 > OUTPUT WSXGA WSXGA RESOLUTION OUTPUT S OUTPUT 18 > OUTPUT WUXGA WUXGA RESOLUTION OUTPUT S OUTPUT 19 > OUTPUT WXGA+ WXGA+ RESOLUTION OUTPUT S OUTPUT 20 > OUTPUT SXGA+ SXGA+ RESOLUTION OUTPUT S SIZE 0 >...
- Page 18 Model SC1080-H S OSDHPOSITION 0~100 > OSDHPOSITION 0~100 OSD H POSITION 0~100 ADJUST [Default:50] S OSDVPOSITION 0~100 > OSDVPOSITION 0~100 OSD V POSITION 0~100 ADJUST [Default:50] S OSDTIMEOUT 0~100 > OSDTIMEOUT 0~100 OSD TIMEOUT 0~100 SETTING [Default:10] SECONDS S OSDBACKGROUND 0~8 >...
-
Page 19: Troubleshooting
Multi Input Digital Scaler with Audio 5. Troubleshooting Hall Research highly recommends that all products be assembled, configured and tested prior to the final installation to eliminate the possibility of problems on site. There are no field serviceable parts or circuits in the device. If you think that the device is malfunctioning, please first try to reset to factory default settings: Resetting the SC1080-H to Factory Defaults... -
Page 20: Specifications
Model SC1080-H 6. Specifications Supported Input Formats Resolution DVI / YPbPr HDMI™ (PC) 480i/576i 480p/576p 720p@(60/50) 1080i@(60/50) 1080p@(60/50) VGA@(60/72/75/85) SVGA@(56/60/72/75/85) XGA@(60/70/75/85) SXGA@(60/75/85) UXGA@60 WXGA@60(1280X800) WXGA+(1440x900) SXGA+(1400x1050) WSXGA@60(1680X1050) WUXGA@60(1920X1200) Available Output Formats Resolution DVI / HDMI™ 480i/576i 480p/576p 720p@(60/50) 1080i@(60/50) 1080p@(60/50) VGA@60 SVGA@@60 XGA@@60... - Page 21 Multi Input Digital Scaler with Audio...
- Page 22 Model SC1080-H...
- Page 24 © Copyright 2009. Hall Research Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607, Fax: (714)641-6698...
