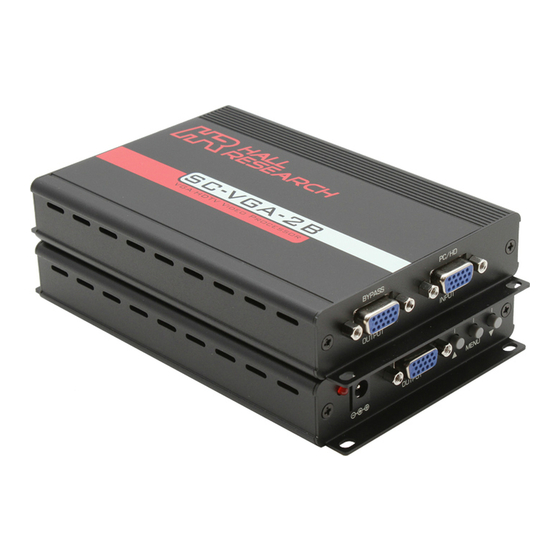

VGA/HDTV Video Processor
CUSTOMER
SUPPORT
INFORMATION
SC-VGA-2B
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
UMA1169 Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-VGA-2B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hall Research Technologies SC-VGA-2B

  • Page 1 SC-VGA-2B VGA/HDTV Video Processor UMA1169 Rev. B CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
  • Page 3 VGA / HDTV Video Processor TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio...
  • Page 4: Table Of Contents

    Model SC-VGA-2B Contents 1. Introduction..........3 1.1 General ..............3 1.2 Features ..............3 2. Installation..........3 2.1 Connections ............. 3 2.2 Connection Block Diagram ........... 4 3. Configuration & Operation...... 4 3.1 Input and Output............4 3.2 Menus and Adjustments ..........5 4.
  • Page 5: Introduction

    SC-VGA-2B is a high-performance universal VGA / HDTV to VGA / HDTV Scan Rate converter with a local loop out. The SC-VGA-2B has the ability to output a specified resolution and refresh rate regardless of the input. Output timing to the display is constant regardless of the input so when switched from one input to another, the display device does not see any interruption in the signal coming to it.
  • Page 6: Connection Block Diagram

    Model SC-VGA-2B 2.2 Connection Block Diagram Figure 1 - PC Connection Figure 2 - DVD Connection 3. Configuration & Operation 3.1 Input and Output Figure 3 – Input Figure 4 - Output...
  • Page 7: Menus And Adjustments

    FINETUNE For RGB Video Input PHASE - refers to nanosecond timing position of each sample taken. This adjustment can be used to align the pixels grabbed by the SC-VGA-2B to those created by the video source. Range is 0-100%, default=73 CLOCK - changes the number of samples per display line.
  • Page 8 Use arrows to adjust output mode. Refer to Section 5.2 below for a list of all available modes. The default output resolution of the SC-VGA-2B is XGA @ 60Hz. The unit has non-volatile memory and memorizes all your settings before power off and recalls those settings on the next power on.
  • Page 9 VGA / HDTV Video Processor H-POSITION – Adjust horizontal position of the OSD on the screen. Range = 0-100%, default=10 V-POSITION – Adjust vertical position of the OSD on the screen. Range = 0- 100%, default=90 TIMER – Select the approximate number of seconds for the OSD to be displayed on the screen before turning off.
  • Page 10: Troubleshooting

    Sync signals as well as the YPbPr Sync signals at the same time. This can be caused by using the HD15-HD15 cable on the SC-VGA-2B output but setting the unit to output YPbPr resolutions (480p for example). Use supplied HD15 to 3 RCA to ensure that only the desired YPbPr sync signals are sent to the display device.
  • Page 11: Specifications

    VGA / HDTV Video Processor 5. Specifications 5.1 General Input ports (1) HD15 Output ports (2) HD15 (processed and bypassed) Power Supply 5V/2.6A DC (CE/FCC/UL certified) Dimensions 4” (W) x 6.5” (D) x 1” (H) (101.6mm) x (165mm) x (25.4mm) Weight 0.75 Lbs (340g) Chassis...
  • Page 12 Model SC-VGA-2B...
  • Page 13 VGA / HDTV Video Processor...
  • Page 14 Model SC-VGA-2B...
  • Page 16 © Copyright 2009. Hall Research, Inc. All rights reserved. CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
