Allows display of HDMI A/V signals on up to 8 HDTV Displays
CUSTOMER
SUPPORT
INFORMATION

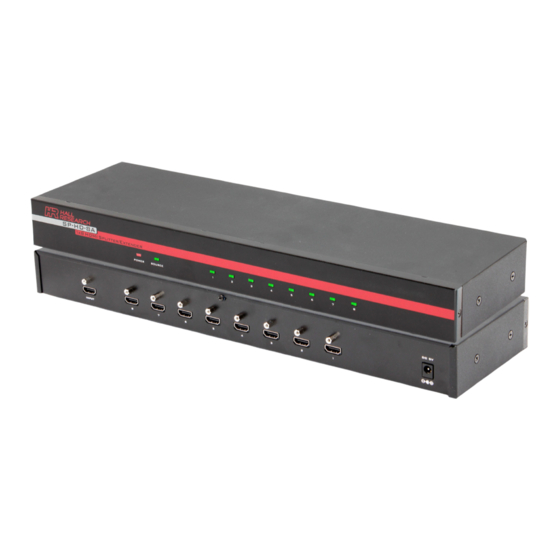

HDMI Video splitter
1 input × 8 outputs
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
SP-HD-8A
User's Manual
UMA1205 Rev. N/C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hall Research Technologies SP-HD-8A
Summary of Contents for Hall Research Technologies SP-HD-8A
- Page 1 User’s Manual SP-HD-8A HDMI Video splitter 1 input × 8 outputs Allows display of HDMI A/V signals on up to 8 HDTV Displays Order toll-free in the U.S. 800-959-6439 CUSTOMER FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
- Page 3 HDMI Video Splitter, 8-Channel TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
-
Page 4: Table Of Contents
User’s Manual Contents 1. Introduction ......................3 1.1 General ........................3 1.2 Features ........................ 3 2. Package Contents ....................4 3. Controls, Functions and Indicators ..............5 4. Connection Block Diagram ................... 6 5. EDID Handling ......................6 6. Cascading (daisy-chaining) to expand # of outputs .......... 6 7. -
Page 5: Introduction
HDMI Video Splitter, 8-Channel 1. Introduction 1.1 General Thank you for purchasing the SP-HD-8A, 8-channel HDMI Video Splitter from Hall Research. This device splits DVI or HDMI audio/video source for display on eight identical outputs. It supports HDTV resolutions to 1080p, is HDCP compliant, and is fully compatible with HDMI 1.4 deep color and 3-D formats. -
Page 6: Package Contents
User’s Manual 2. Package Contents • One SP-HD-8A HDMI Splitter unit • One Power Supply Input: 100 – 240V AC @ 50/60Hz, Output: +5V DC, 6A. (current used by unit is approx 3A max) • One pair of Mounting Brackets •... -
Page 7: Controls, Functions And Indicators
HDMI Video Splitter, 8-Channel 3. Controls, Functions and Indicators Figure – 1 Front Panel Input Power Indicator The unit does not have an on-off button. The power indicator is illuminated when power is applied to the unit. HDMI Source Indicator Source LED will illuminate when HDMI source signal is connected to the HDMI input port. -
Page 8: Connection Block Diagram
6. Cascading (daisy-chaining) to expand # of outputs You can use any output to connect the splitter to another SP-HD-8A to expand the # of outputs. This can be done to a maximum of three (3) levels deep. -
Page 9: Specifications
HDMI Video Splitter, 8-Channel 8. Specifications Video Standards HDMI 1.3, HDCP1.1 and DVI1.0 (HDMI 1.4 for 3D and Deep-Color) Input Port 1x HDMI Female Locking Connector (Type A) Output Port 8x HDMI Female Locking Connector (Type A) Connectors Locking HDMI Video Resolutions Output resolution is same as input resolution. - Page 10 User’s Manual...
- Page 12 © Copyright 2012. Hall Research, Inc. All rights reserved. CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
