Supports 4K UHD @ 60 Hz 4:4:4, HDCP 2.2 and HDR
De-embedded Analog and Digital Audio Outputs
Can Scale 4K to 1080p at each Output
CUSTOMER
SUPPORT
INFORMATION

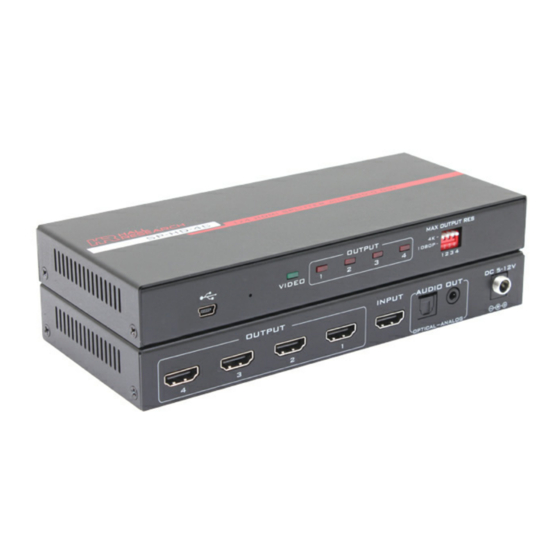

SP-HD-4C
1x4 HDMI Video Splitter
Smart EDID Management
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
User's Manual
UMA1287 Rev. N/C
Advertisement
Table of Contents
Related Manuals for Hall Research Technologies SP-HD-4C
Summary of Contents for Hall Research Technologies SP-HD-4C

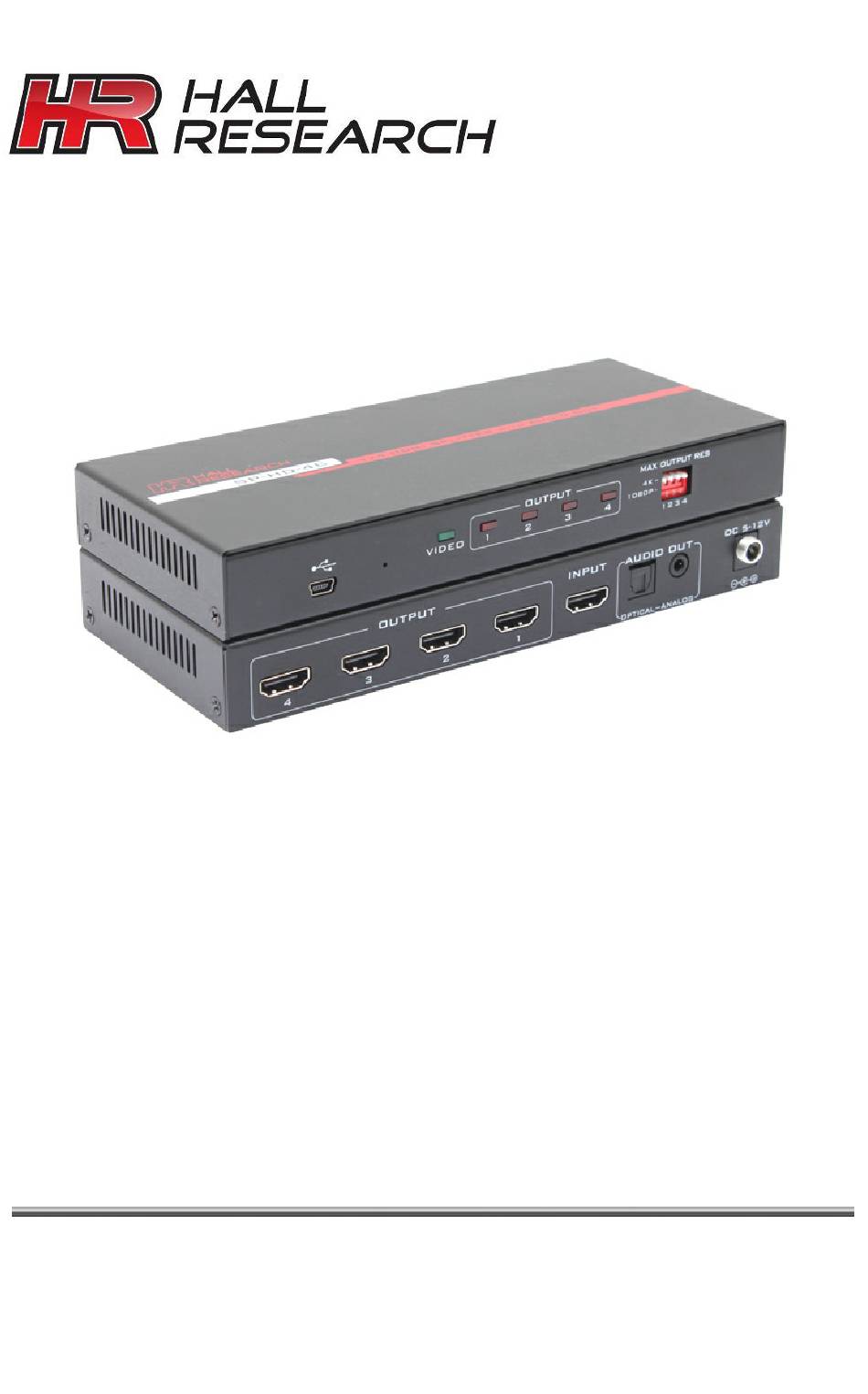

- Page 1 User’s Manual SP-HD-4C 1x4 HDMI Video Splitter Supports 4K UHD @ 60 Hz 4:4:4, HDCP 2.2 and HDR De-embedded Analog and Digital Audio Outputs Smart EDID Management Can Scale 4K to 1080p at each Output Order toll-free in the U.S. 800-959-6439...
- Page 2 SP-HD-4C Contents 1.1 General ....................... 3 1. Introduction ...................... 3 1.2 Features ......................3 2. Package Contents..................... 3 3. Controls, Functions and Indicators ............4 4. Installation ......................5 5. Smart EDID Management ................5 6. Per Output Downscaling from 4K to 1080p ........... 6 7.1 Contacting Hall Research ................
- Page 3 1.1 General 1. Introduction Thank you for purchasing the SP-HD-4C, a 4-channel HDMI Splitter from Hall Research. This Splitter can distribute an HDMI audio/video source to up to 4 displays simultaneously without any loss. It is compliant to HDCP 2.2 and supports 4K UHD resolutions up to 4K @ 60Hz (4:4:4), HDR and 3D.
- Page 4 SP-HD-4C 3. Controls, Functions and Indicators Front Panel USB Mini-B Used for firmware updates HDMI Video Indicator LED lights when receiving HDMI Video HDMI Output Indicator 1- 4 LEDs light when HDMI display is connected Max Output Resolution Controls HDMI output down sampling to 1080p •...
- Page 5 4K HDMI Video Splitter 4. Installation Connection Block Diagram Perform the following steps to install the SP-HD-4C. 1. Make sure your HDMI Sources and Displays that you are intending to connect are powered off and disconnected from power sources. 2. Using Hi-speed HDMI cables, connect each display to the Outputs ports of the splitter.
- Page 6 Once an external EDID is found, it is retained until power is cycled, even if the output display is exchanged for another. The SP-HD-4C maintains the audio extraction feature even if there are no active displays connected to the outputs.
- Page 7 4K HDMI Video Splitter Before you do, make a record of the history of the problem. We will be able to provide more 7.2 Shipping and Packaging efficient and accurate assistance if you have a complete description. If you need to transport or ship your unit: Package it carefully.
- Page 8 © Copyright 2019. Hall Research, Inc. All rights reserved. CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
