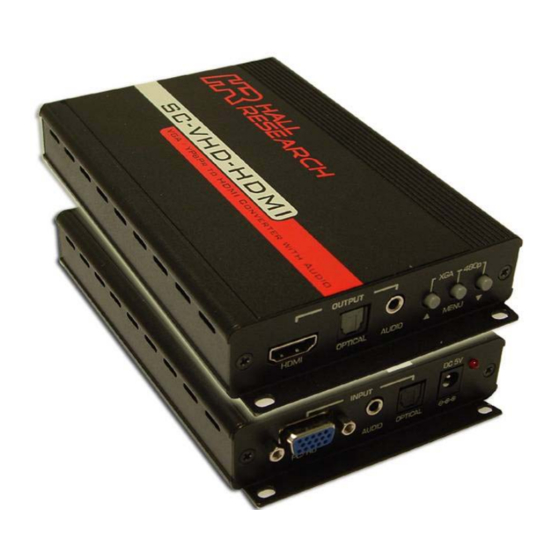

VGA / YPbPr to HDMI™ Converter with Audio
Convert VGA video from PC or YPbPr from DVD to HDMI for display on
CUSTOMER
SUPPORT
INFORMATION
SC-VHD-HDMI
any digital HDTV with HDMI or DVI input
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
UMA1170 Rev. A
