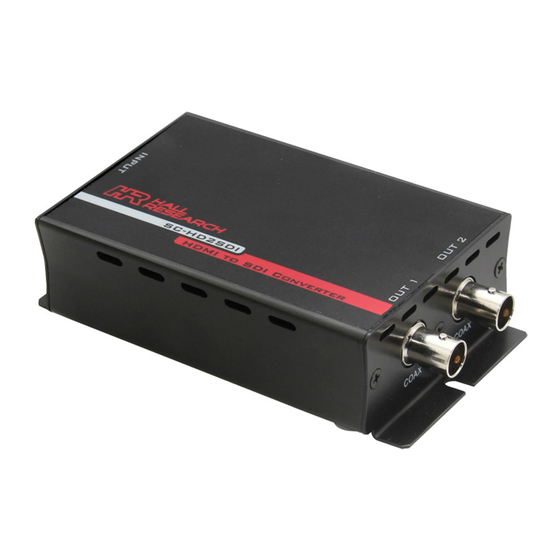

Hall Research Technologies SC-HD2SDI User Manual

Hdmi / dvi to sdi converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDMI / DVI to SDI Converter
Converts DVI or HDMI (with no HDCP) to SDI, HD-SDI, or 3G-SDI,
SUPPORT &
ORDERING
INFORMATION
SC-HD2SDI
Supports Embedded Audio
For technical support, Call 714-641-6607
www.hallresearch.com
Hall Research, 1163 Warner Ave. Tustin, CA 92780
User's Manual
UMA1242, Rev. n/c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-HD2SDI and is the answer not in the manual?

Questions and answers

Related Manuals for Hall Research Technologies SC-HD2SDI

Summary of Contents for Hall Research Technologies SC-HD2SDI

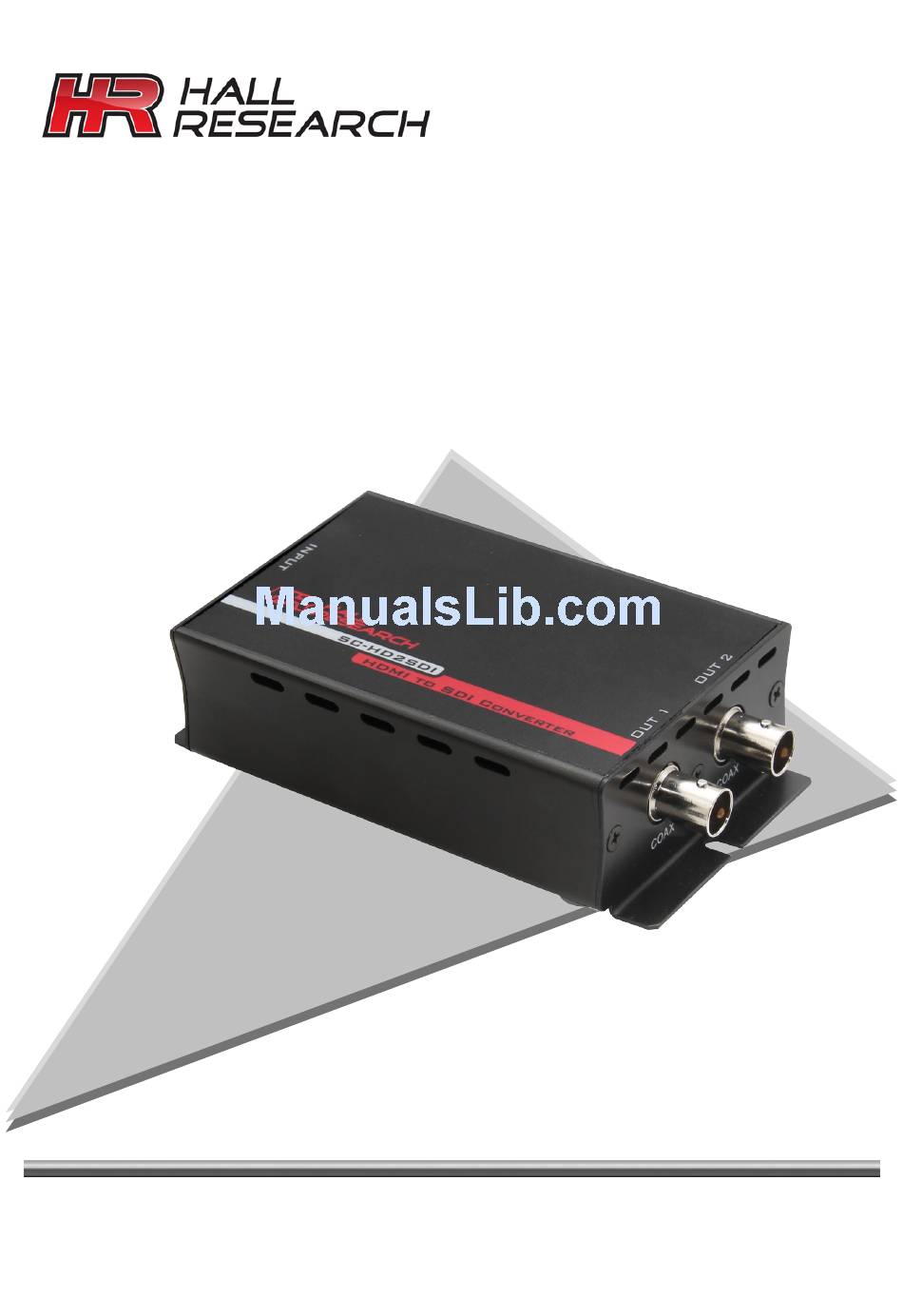

  • Page 1 User's Manual SC-HD2SDI HDMI / DVI to SDI Converter Converts DVI or HDMI (with no HDCP) to SDI, HD-SDI, or 3G-SDI, Supports Embedded Audio UMA1242, Rev. n/c SUPPORT & For technical support, Call 714-641-6607 ORDERING www.hallresearch.com INFORMATION Hall Research, 1163 Warner Ave. Tustin, CA 92780...

  • Page 2: Fcc Radio Frequency Interference Statement

    SC-HD2SDI TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners. FCC RADIO FREQUENCY INTERFERENCE STATEMENT This device complies with part 15 Class A of the FCC Rules.

  • Page 3: Table Of Contents

    DVI / HDMI to SDI Converter Contents 1. SPECIFICATIONS ............. 3 2. OVERVIEW ................ 3 2.1 I ..............4 NTRODUCTION 2.2 F ................. 4 EATURES 2.3 W ’ ............5 NCLUDED 2.4 H ..........5 ARDWARE ESCRIPTION 3. INSTALLATION ..............5 4.

  • Page 4: Specifications

    SC-HD2SDI 1. Specifications HDMI Bandwidth 225MHz/link Resolutions Supported 480i, 576i, 720p@50/60 1080i@50/60 1080p@24/25/30/50/60 TMDS Signal Level 3.3 volts DDC Signal Level 5.0 volts ESD Protection ±8kV (air-gap discharge) ±4kV (contact discharge) Max Coaxial Cable Length Full HD up to 70 m (230 ft)

  • Page 5: Overview

    DVI / HDMI to SDI Converter 2. Overview 2.1 Introduction The SC-HD2SDI is an HDMI to SDI Converter with two identical SDI outputs (built-in 2-channel splitter). It automatically detects and converts DVI or HDMI video (without HDCP content protection) to SDI, HD-SDI, or 3G-SDI.

  • Page 6: What's Included

    SC-HD2SDI 2.3 What’s Included Converter Box • This user’s manual • Power Supply • 2.4 Hardware Description The following figures show all connectors and indicators on the unit. 3. Installation Plug one or both SDI outputs to desired devices. Make sure to use quality SDI rated RG-6U cables.

  • Page 7: Troubleshooting

    DVI / HDMI to SDI Converter Connect the HDMI input to any DVI or HDMI source. Note that the input video resolution and refresh rate must be one supported by the converter (see specifications). Additionally for HDCP compliance, if the HDMI input signal is encrypted with HDCP (content protected), then the SDI outputs will be blank.
  • Page 8 © Copyright 2016 Hall Research All rights reserved. 1163 Warner Ave., Tustin, CA 92780 (714)641-6607...
