Summary of Contents for Hall Research Technologies SC-SDI2HD

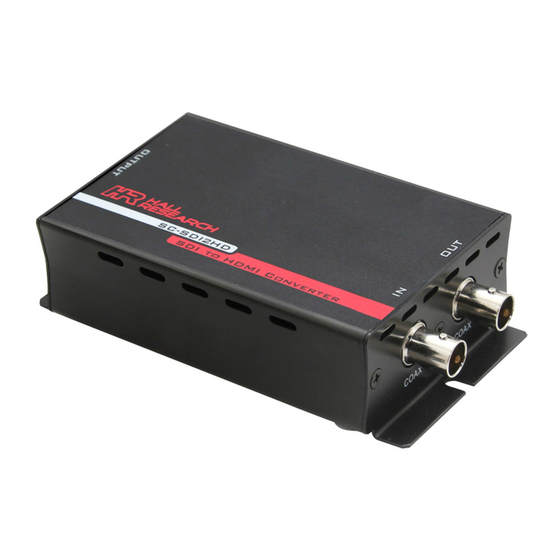

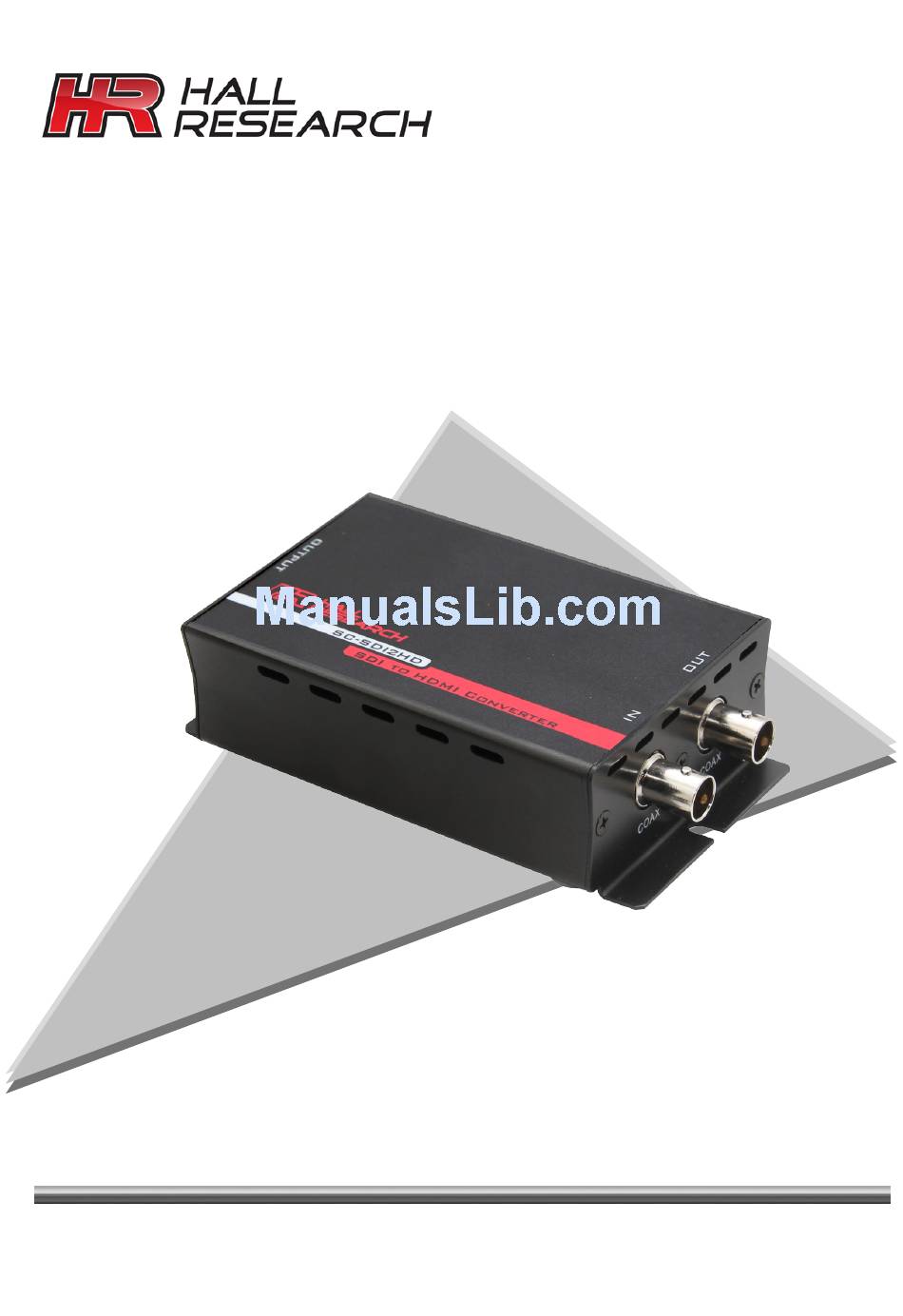

- Page 1 User's Manual SC-SDI2HD SDI to HDMI Converter Converts SDI, HD-SDI and 3GSDI to HDMI for display on any HDTV UMA1243, Rev. n/c SUPPORT & For technical support, Call 714-641-6607 ORDERING www.hallresearch.com INFORMATION Hall Research, 1163 Warner Ave. Tustin, CA 92780...
-
Page 2: Fcc Radio Frequency Interference Statement
SC-SDI2HD TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners. FCC RADIO FREQUENCY INTERFERENCE STATEMENT This device complies with part 15 Class A of the FCC Rules. -
Page 3: Table Of Contents
SDI to HDMI Converter Contents 1. SPECIFICATIONS ............3 2. OVERVIEW ..............4 2.1 I ............... 4 NTRODUCTION 2.2 F ............... 4 EATURES 2.3 W ’ ............4 NCLUDED 2.4 H ..........5 ARDWARE ESCRIPTION 3. INSTALLATION ............... 5 5. TROUBLESHOOTING ............ 6 5.1 C ........ -
Page 4: Specifications
SC-SDI2HD 1. Specifications HDMI Bandwidth 225MHz/link Resolutions Supported 480i, 576i, 720p@50/60 1080i@50/60 1080p@24/25/30/50/60 TMDS Signal Level 3.3 volts DDC Signal Level 5.0 volts ESD Protection ±8kV (air-gap discharge) ±4kV (contact discharge) Max Coaxial Cable Length Full HD up to 70 m (230 ft) -
Page 5: Overview
2. Overview 2.1 Introduction The . SC-SDI2HD is an SDI to HDMI Converter with SDI loop output. It automatically detects SDI, HD-SDI, or 3G-SDI on its input and converts it to an HDMI output that can be displayed on any TV or monitor with an HDMI input. -
Page 6: Hardware Description
SC-SDI2HD 2.4 Hardware Description The following figures show all connectors and indicators on the unit. 3. Installation Plug the SDI output from the SDI source (Camera or video player) to the SDI input. Connect the HDMI output to any HDMI TV or equipment... -
Page 7: Troubleshooting
SDI to HDMI Converter 4. Troubleshooting There is no adjustments or settings. The unit will automatically detect the type of SDI input and convert it to HDMI. If the SDI input has audio embedded, then the HDMI output will have the same audio embedded. - Page 8 © Copyright 2016 Hall Research All rights reserved. 1163 Warner Ave., Tustin, CA 92780 (714)641-6607...
