4K UHD HDMI 2.0 Scaler & Audio
Embed Digital or Analog Audio into HDMI output
Extract (De-embed) Digital and Analog Audio from HDMI input
CUSTOMER
SUPPORT
INFORMATION
SC-HD-2B
Embedder / Extractor
Scale HDMI or DVI video
Order toll-free in the U.S. 800-959-6439
FREE technical support: 714-641-6607 or support@hallresearch.com
Hall Research, 1163 Warner Ave. Tustin, CA 92780
www.hallresearch.com
User's Manual
UMA1280 REV A
Advertisement
Table of Contents
Related Manuals for Hall Research Technologies SC-HD-2B
Summary of Contents for Hall Research Technologies SC-HD-2B

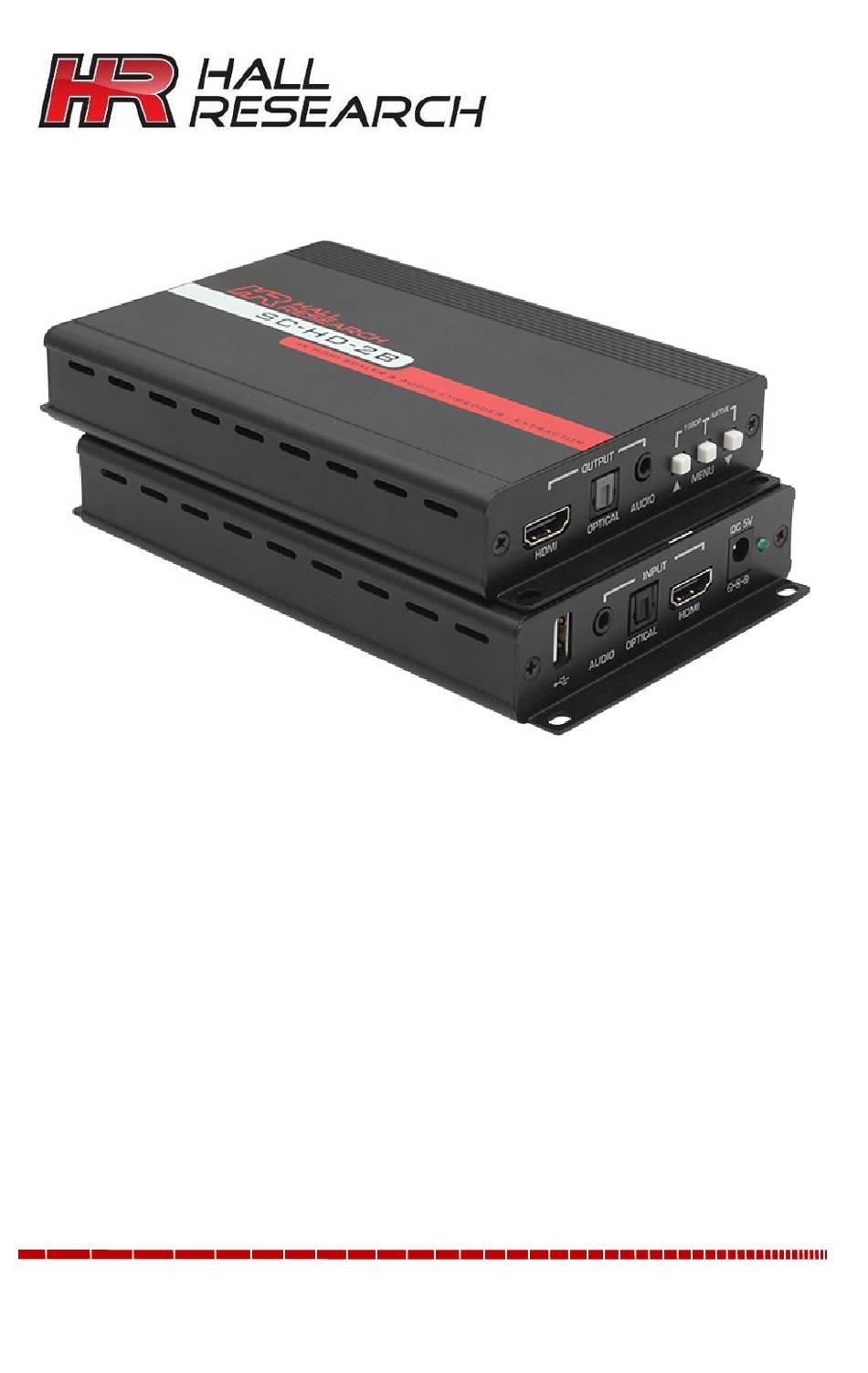

- Page 1 User’s Manual SC-HD-2B 4K UHD HDMI 2.0 Scaler & Audio Embedder / Extractor Scale HDMI or DVI video Embed Digital or Analog Audio into HDMI output Extract (De-embed) Digital and Analog Audio from HDMI input UMA1280 REV A Order toll-free in the U.S. 800-959-6439 CUSTOMER FREE technical support: 714-641-6607 or support@hallresearch.com...
-
Page 2: Table Of Contents
SC-HD-2B Table of Contents 1.0 Introduction ................. 3 Features ....................4 2.0 Package Contents ................ 4 3.0 Setup ....................4 Installation ..................... 4 OSD Menu ..................... 5 4.0 Connector and Indicator Functions ......... 7 Input Connections .................. 7 Output Connections ................7 5.0 Troubleshooting ................ -
Page 3: Introduction
HDMI input, analog L/R input, or digital optical input. The SC-HD-2B has the ability to output a wide range of resolutions regardless of the input timing and resolution. The output resolution can automatically match the native resolution of the display connected to its output (based on the EDID setting of the display), or it can be specified by the user. -
Page 4: Features
(x 1) 3.5mm to (2) RCA Audio Cable (x 1) Product Information Card 3.0 Setup Installation • Connect the HDMI source to the SC-HD-2B HDMI Input. • Optionally, connect the Analog or Digital audio source to the 3.5mm or optical TOSLink Input connector. -
Page 5: Osd Menu
UHD HDMI 2.0 Scaler & Audio Embedder / Extractor OSD Menu Press the MENU button to bring up the OSD menu controls on the attached display. Use the up and down arrows to navigate to the desired menu item, or to change values on a selected sub-menu. - Page 6 SC-HD-2B PICTURE COLOR OFFSET B 0-1023 (512*) BRIGHTNESS 0-60 (30*) CONTRAST 0-60 (30*) 0-60 (30*) SATURATION 0-60 (30*) SHARPNESS 0-60 (0*) OFF*, LOW, MIDDLE, HIGH, AUTO RESET PICTURE EXIT AUDIO SOURCE AUTO*, TOSLINK, ANALOG VOLUME 0-100 (80*) HDMI MUTE OFF*, ON...
-
Page 7: Connector And Indicator Functions

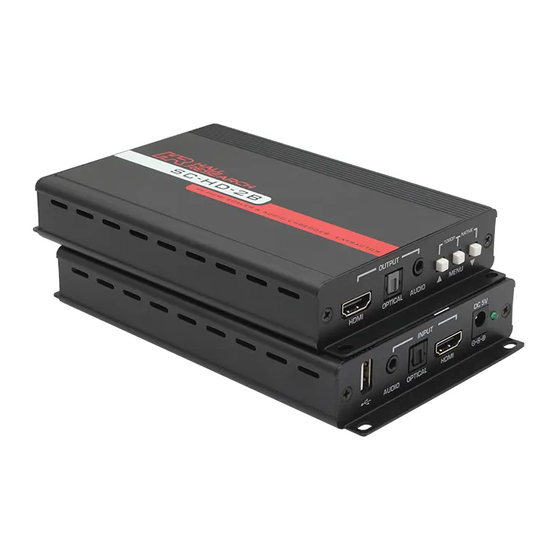

UHD HDMI 2.0 Scaler & Audio Embedder / Extractor 4.0 Connector and Indicator Functions Input Connections USB: USB-A connector is provided for firmware upgrade. INPUT: Video and audio inputs. HDMI accepts resolutions up to 4K UHD. Audio input is user-selectable via OSD menu: HDMI, Optical TOSLink, or Analog Audio. -
Page 8: Troubleshooting
2B (see Section 7). Contacting Hall Research If you determine that your SC-HD-2B is malfunctioning, do not attempt to repair the unit. Instead, contact Hall Research Technical Support at 714-641-6607. To return the unit to Hall Research you must first get a Return Authorization (RMA) number. -
Page 9: Specifications
UHD HDMI 2.0 Scaler & Audio Embedder / Extractor 6.0 Specifications Video Bandwidth 600 MHz / 18 Gps Input Ports (1) HDMI (1) 3.5 mm Analog Audio (1) Digital Audio (TOSLink) (1) USB (Service Only) Output Ports (1) HDMI (1) 3.5 mm Analog Audio (1) Digital Audio (TOSLink) Resolutions DVI signal... - Page 10 SC-HD-2B HDMI Cable Length Input 1080p 8-bit: 15 m 1080p 12-bit: 10 m 4K 8-bit: 3 m Output 1080p 8-bit: 15 m 1080p 12-bit: 10 m 4K 8-bit: 3 m General Power Supply 100 VAC to 240 VAC, 50-60 Hz, 0.6 A, External; 5 VDC, 2.6 A...
-
Page 11: Supported Input And Output Resolutions
UHD HDMI 2.0 Scaler & Audio Embedder / Extractor 7.0 Supported Input and Output Resolutions Input Resolutions Supported Output Resolutions 60/72/75/85 Hz 60 Hz 640x480 (VGA) 640x480 (VGA) 56/60/72/75/85 Hz 60 Hz 800x600 (SVGA) 800x600 (SVGA) 60/70/75/85 Hz 60 Hz 1024x768 (XGA) 1024x768 (XGA) 50/60 Hz... - Page 12 © Copyright 2019. Hall Research, LLC. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
