Altronix AL600ULADA Installation Manual page 7

AC/Bat trouble
Output
Fig. 4A
Fig. 4
Fire
Alarm
Control
Panel
(FACP)
4-wire Smoke
4-wire Smoke
EOL
Resistor
from
FACP
EOL Power
Supervision Relay
(Not Supplied)
Optional hookups:
1- Battery and AC monitoring: AC or Battery Fail condition will cause the common trouble input
[C "FAULT" N.C.] to report back to the FACP via input 1 and input 2. The common trouble input may also
be used for other optional supervisory monitoring. To report AC and Battery Trouble connect the battery and AC
Fail relay output shown in (Fig. 4A) to the common trouble input.
Note: If common trouble input option is not used, terminal pair [C "FAULT" N.C.] (Fig. 4D) must be shorted
(connect jumper) to remain inactive.
2- Auxiliary output (- AUX+) provides 12VDC or 24VDC at 1 amp max. The output voltage is determined by
the setting of switch marked SW1 on the Power Supply Board.
It can be reset by a momentary closure across terminals [NO REMOTE C] or by
pressing AUX RESET button on the AL600LGK logic board.
Ground Fault Detect: Factory set disabled (Fig. 4B). To enable ground fault detection remove insulating washer
between the board and standoff of the lower right power supply board mounting screw (Fig. 4C).

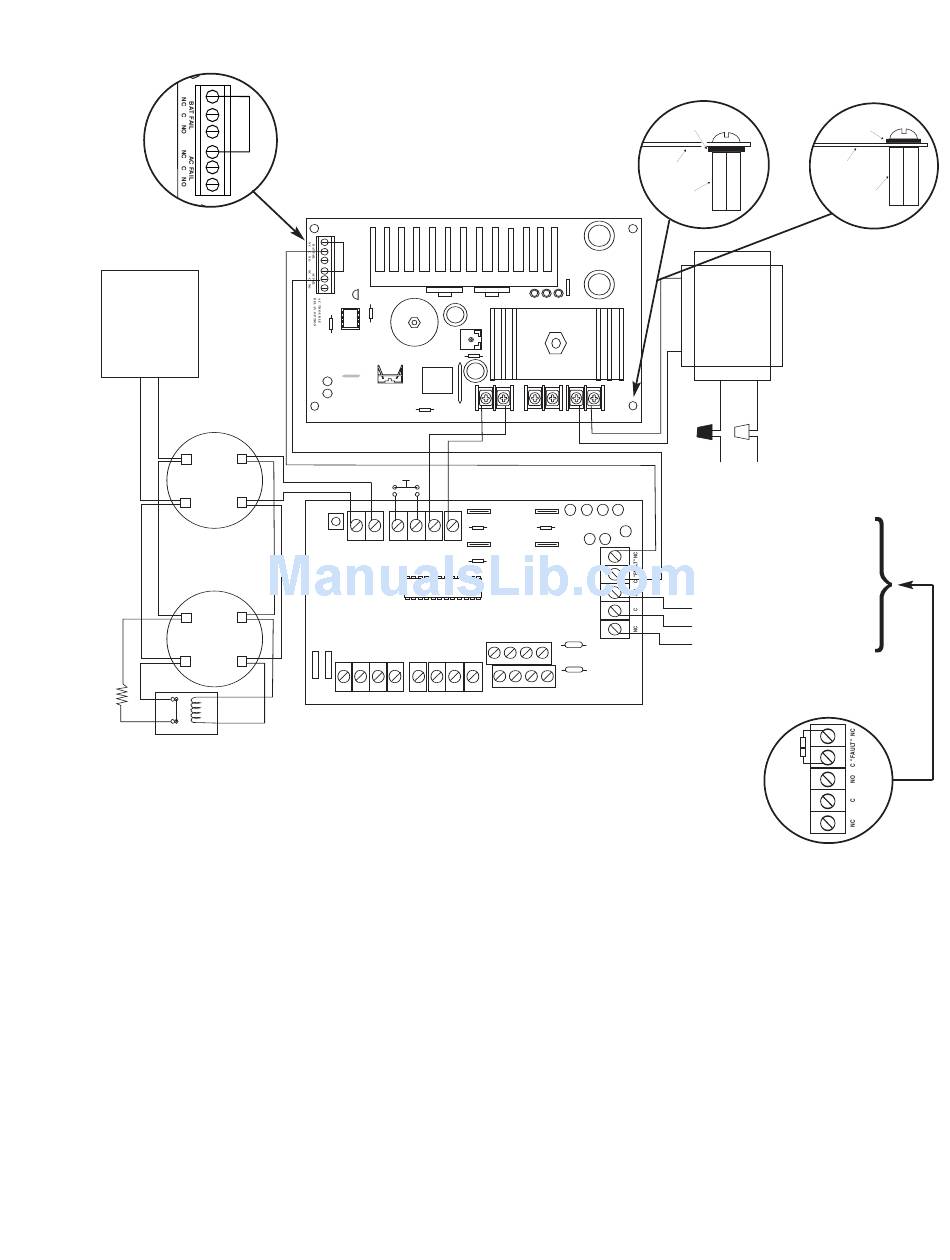

Optional Hookup Diagram:
RL2
RL3
IC2
IC3
PTC2
DC
AC
+
N.O. Reset Switch
Detector
--
-- AUX +
AUX
RESET
+
Detector SW2 SW1
+ OUT1 --
--
OPEN = 24V SW1 CLOSED = 12V
RLY1
+ ---
J2 + --
BAT
DC
-- DC +
OUT1 OUT3
INPUT SELECT
TEMPORAL
STROBE SYNC
IN > OUT SYNC
OUT2 OUT4
INPUT SELECT
NO "REMOTE" C
TEMPORAL
STROBE SYNC
IN > OUT SYNC
+ OUT2 -- + OUT3 -- + OUT4 --
IN1+ IN1-- IN2+ IN2-- C "DRY1" NC
RET1+ RET1-- RET2+ RET2--
- 7 -
Ground Fault
Detection Disabled
(Factory Set)
Fig. 4B Plastic
Washer
Power Supply
Board
Stand-Off
XFMR
Black White
Lead Lead
AC AC
115VAC/60 Hz, 3.2 amp
(Connect to seperate
unswitched AC circuit)
OUT1 OUT2 OUT3 OUT4
INP1 INP2
These circuits are used to
FAULT
monitor AC and Bat Fail and
will cause a simultaneous trouble
condition to the FACP's IN1 and IN2
Digital Communicator or
Local Annuicator Dry output Contact
(Form "C" contacts)
UPPER TERMINALS
C "DRY2" NC LOWER TERMINALS
Fig. 4D
Ground Fault
Detection Enabled
Fig. 4C
Plastic
Washer
Power Supply
Board
Stand-Off
Common trouble
Input/Output
