Power Supply Specifications:
AC Input:
Output:
Battery:
Stand-by Current:
EOL Resistor:
(end of line)
Stand-by Specifications:
Stand-by Batteries
24VDC/12AH
(use two (2) 12VDC batteries in series)
12VDC/12AH
24VDC/7AH
Installation Instructions:
The AL600ULADA should be installed in accordance with article 760 of The National Electrical Code as well as
NFPA 72 and all applicable Local Codes.
1. Mount the AL600ULADA in a desired location. It is recommended to first review the following tables for screw
terminals, switch selection and LED status indications. This will greatly facilitate installation hook-up.
Carefully review:
Power Supply Specifications
Stand-by Specifications
Input / Output Selection Table
LED Status Indication Table
Terminal Identification Table
Typical Application Diagrams
2. Connect the black and white transformer leads of AL600ULADA to a separate
unswitched AC circuit (115VAC, 60Hz) dedicated to the
Fire Alarm System (Fig. 1, pg. 3). Connect green lead to earth ground.
Keep power limited wiring separate from non-power limited wiring
(115VAC / 60Hz Input, Battery Wires). Minimum .25" spacing must be provided.
3. Set switch SW1 on Power Supply Board for desired output voltage. Open for 24VDC
(factory set), Close for 12VDC.
4. Measure output voltage before connecting devices. This helps avoid potential damage.
5. Connect battery to terminals marked [+ BAT - -] on the Power Supply Board
(battery leads included). Use two (2) 12VDC batteries connected in series for 24VDC operation.
6. Set output selection switches marked (OUT1 through OUT4) to follow corresponding input (IN1 & IN2)
(Input/Output Selection Table pg. 4).
7. Connect FACP output to desired AL600LGK logic board inputs and notification appliances to desired AL600LGK
logic board outputs (Typical Application Diagrams pg. 6).
8. For connection of smoke detectors, digital dialer (Optional Hookup Diagram pg. 7).
9. To disable ground fault detection install insulating washer between the board and standoff (Fig. 4B/4C, pg. 7).
General Information:
• For all Class B hookups SW1 & SW2 on the AL600LGK logic board must be open.
For all Class A hookups SW1 & SW2 on the AL600LGK logic board must be closed.
115VAC / 3.2 amp @ 60Hz
12VDC - 24VDC. Maximum 2.0 amp per output.
Total of 6.5 amp in Alarm Condition.
For 12VDC operation use a 12VDC / 12AH battery
For 24VDC operation use two (2) 12VDC / 12AH batteries connected in series
75mA
2.2K (2200 ohm)
(pg. 3)
(pg. 3)
(pg. 4)
(pg. 4)
(pg. 5)
(pg. 6)
Stand-by Time
Total Amp/Minutes
24 Hours
6.5 Amp/15 Minutes
60 Hours
6.5 Amp/5 Minutes
24 Hours
6.5 Amp/15 Minutes
60 Hours
6.5 Amp/5 Minutes
24 Hours
6.5 Amp/5 Minutes
RL2
RL3
IC2
IC3
AL601ULB
POWER SUPPLY
PTC2
DC
ALTRONIX CORP.
--- AUX + NO REMOTE C
AUX
RESET
AL600LGK
ALTRONIX CORP.
BKLYN, NY 11220
SW2
SW1
+ OUT1 ---
+ OUT2 ---
- 3 -
Alarm Output
OPEN = 24V SW1 CLOSED = 12V
RLY1
AC
Black
+
--
J2
DC
+
BAT ---
AC
AC
Lead
--
+
DC
OUT1
OUT3
OUT1 OUT2 OUT3 OUT4
CLOSED - INP1
OPEN - INP2
INP1 INP2
FAULT
OUT2
OUT4
CLOSED - INP1
OPEN - INP2
115 VAC input
IN1+
IN1--
IN2+ IN2--
UPPER TERMINALS
+ OUT3 ---
+ OUT4 ---
RET1+ RET1-- RET2+ RET2--
LOWER TERMINALS
Aux Output
Current
50mA
-
50mA
-
-
XFMR
White
Lead
60 Hz,
3.2 amp
Green

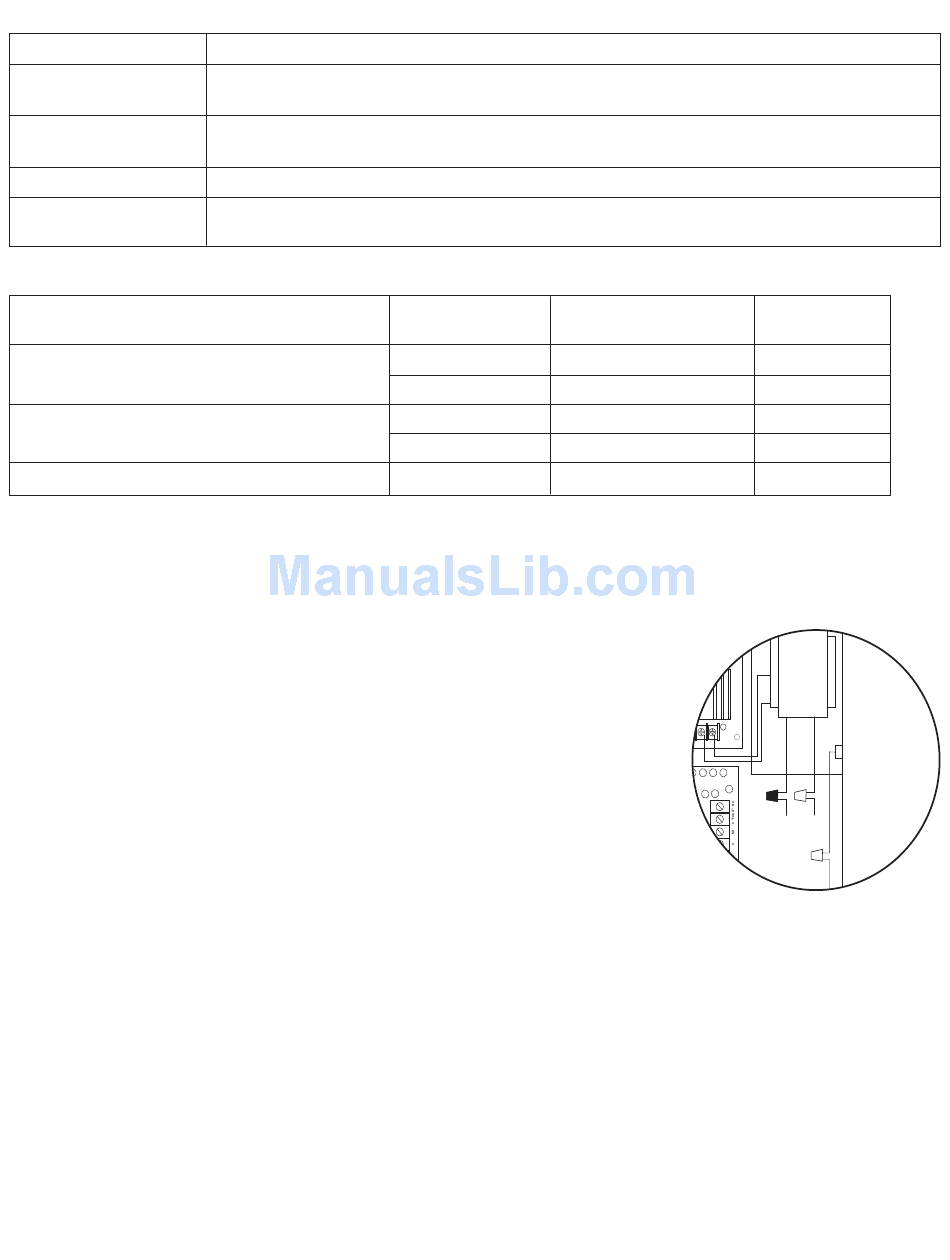

Fig. 1
Lead
(ground)
