PANEL DESCRIPTION

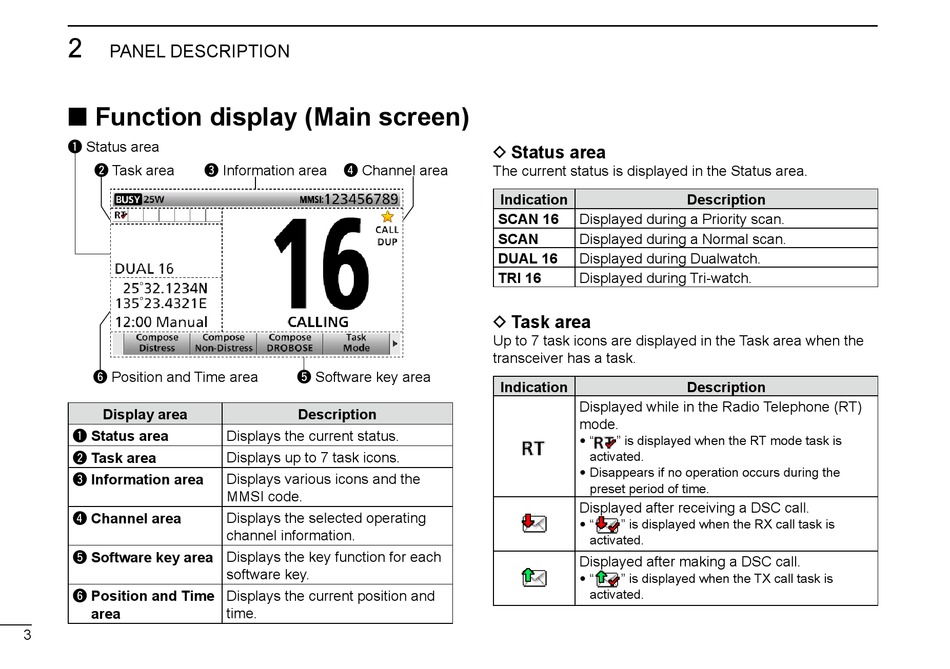

■ Function display (Main screen)

q Status area
w Task area
y Position and Time area
Display area
q Status area
w Task area
e Information area
r Channel area
t Software key area Displays the key function for each
y Position and Time
area
3
e Information area r Channel area
t Software key area
Description
Displays the current status.
Displays up to 7 task icons.
Displays various icons and the
MMSI code.
Displays the selected operating
channel information.
software key.
Displays the current position and
time.
D Status area
The current status is displayed in the Status area.
Indication
SCAN 16 Displayed during a Priority scan.
SCAN Displayed during a Normal scan.
DUAL 16 Displayed during Dualwatch.
TRI 16 Displayed during Tri-watch.
D Task area
Up to 7 task icons are displayed in the Task area when the
transceiver has a task.
Indication
Displayed while in the Radio Telephone (RT)
mode.
• " " is displayed when the RT mode task is
activated.
• Disappears if no operation occurs during the
preset period of time.
Displayed after receiving a DSC call.
• "
" is displayed when the RX call task is
activated.
Displayed after making a DSC call.
• "
" is displayed when the TX call task is
activated.
Description
Description
