Support Types - LulzBot mini User Manual

between 0 to 45 degrees. It is highly recommended to orient or design your
object so that it minimizes or eliminates the need for support.
Touching Buildplate
This causes the support material to build up between the heated bed and
the object. The red example is Touching Buildplate. (Fig. 2.16, page 41)
Everywhere
This prints support material between the heated bed and object as well as
between the object and itself. The green example is Support Everywhere.
(Fig. 2.16, page 41)
Platform Adhesion Type
Some models have a small surface area contacting the plate. This can
create adhesion issues causing your part to pop off at some point during
the print. To fix this, use either Brim or Raft. Raft is better used when a
model has small heated bed contact points and overhangs.
2.7. BASIC TAB OPTIONS

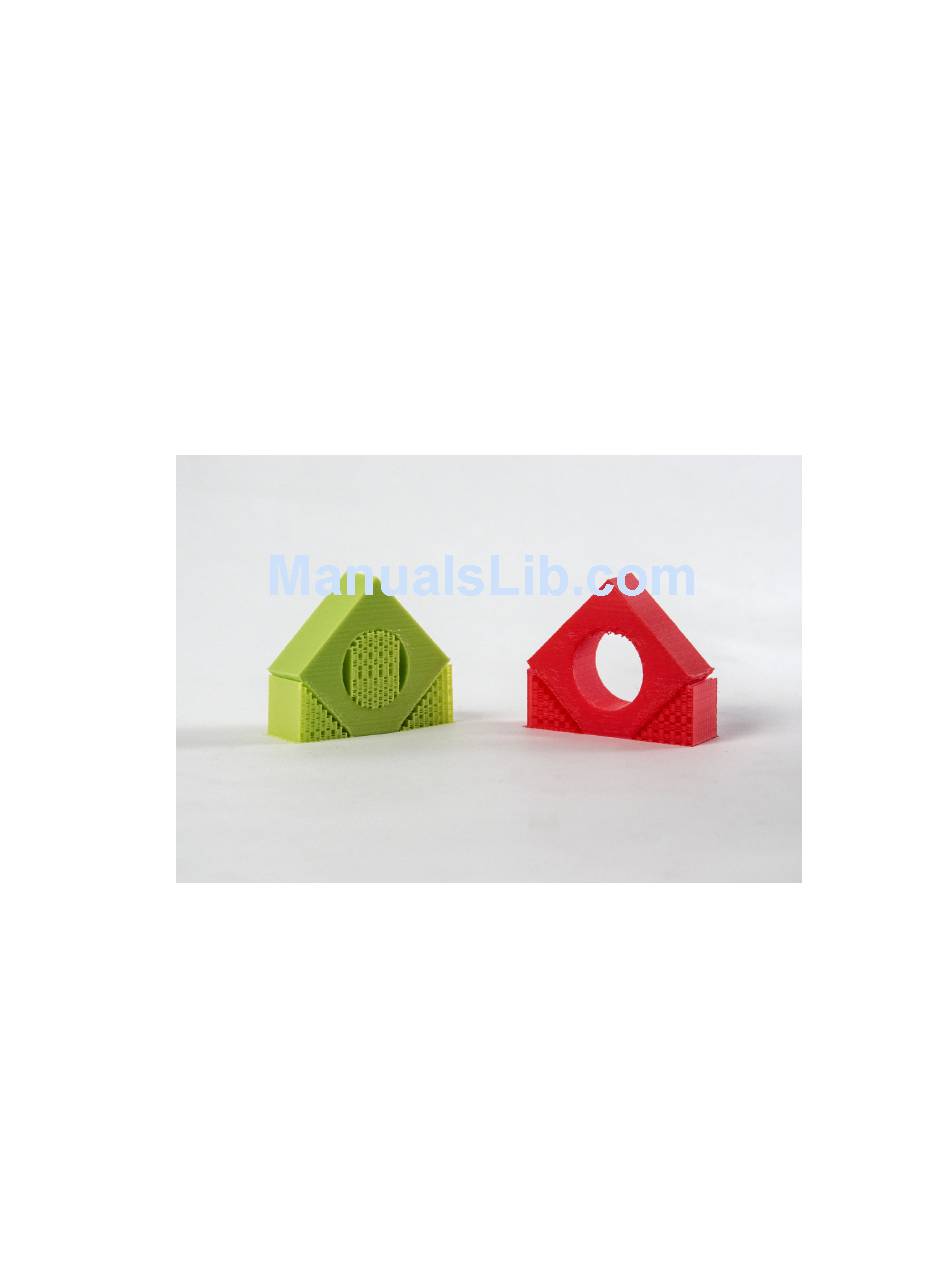

Figure 2.16: Support Types
41
