Siemens Sinamics G120 Hardware Installation Manual page 95

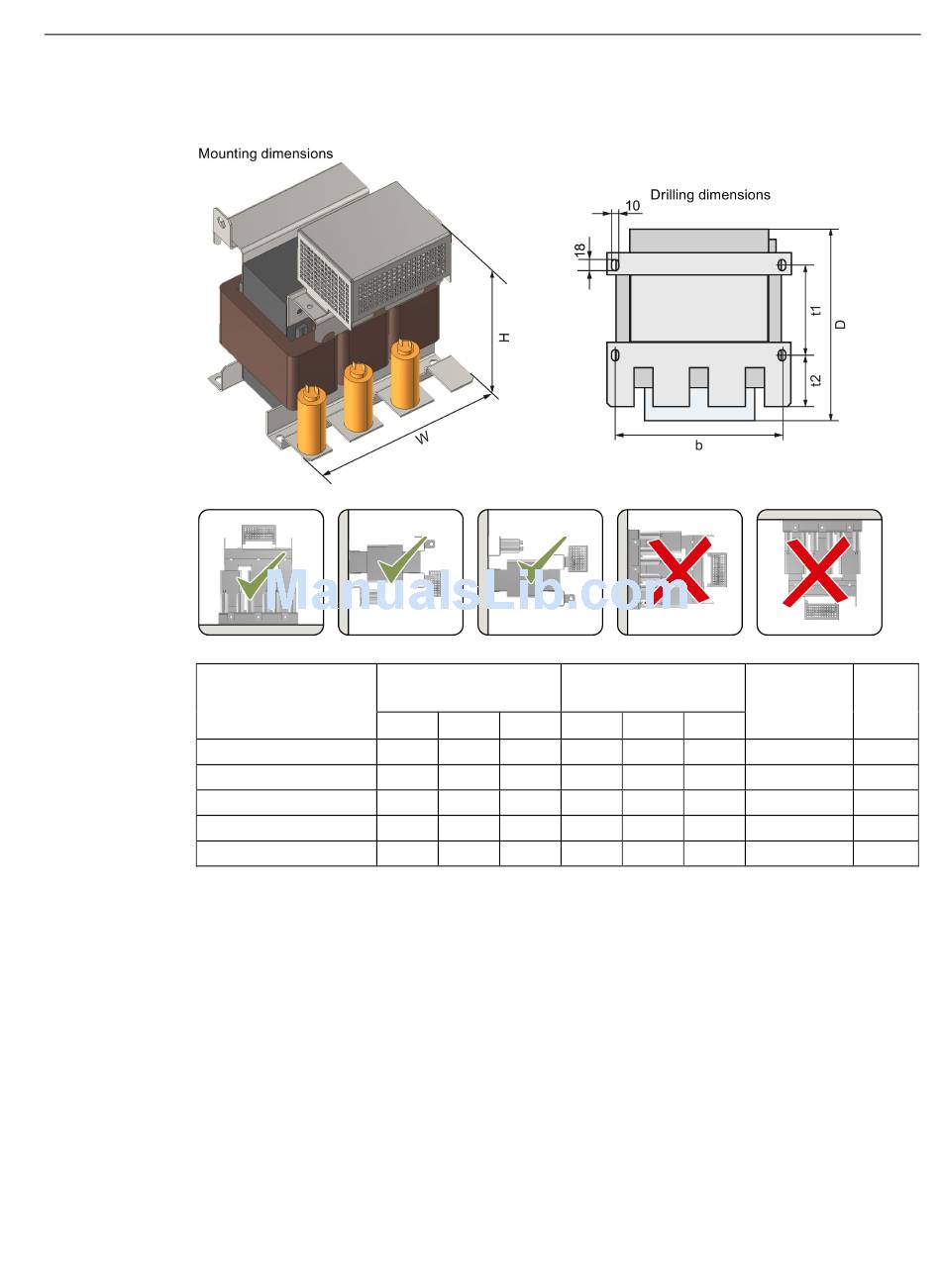

Sine-wave filter - stand alone, frame size 1
Sine-wave filter
6SL3202-0AE24-6SA0
6SL3202-0AE26-2SA0
6SL3202-0AE28-8SA0
6SL3202-0AE31-5SA0
6SL3202-0AE31-8SA0
Power Modules PM240
Hardware Installation Manual, 07/2016, A5E36985441C AA
Overall dimensions Drilling dimensions
(mm) (mm)
W H D
250 305 262
250 315 262
275 368 275
350 440 305
350 468 305
Spare parts and accessories
8.3 Optional accessories
Fixing/torque
(Nm)
b t1 t2
230 127 90.5 4 x M6 / 7
230 127 90.5 4 x M6 / 7
250 132 100.5 4 x M8 / 13
320 156.5 113 4 x M8 / 13
320 156.5 113 4 x M8 / 13
Weight
(kg)
24
34
45
63
80
95
