Siemens Sinamics G120 Hardware Installation Manual page 37

Power module
Hide thumbs Also See for Sinamics G120:
Table of Contents

Advertisement

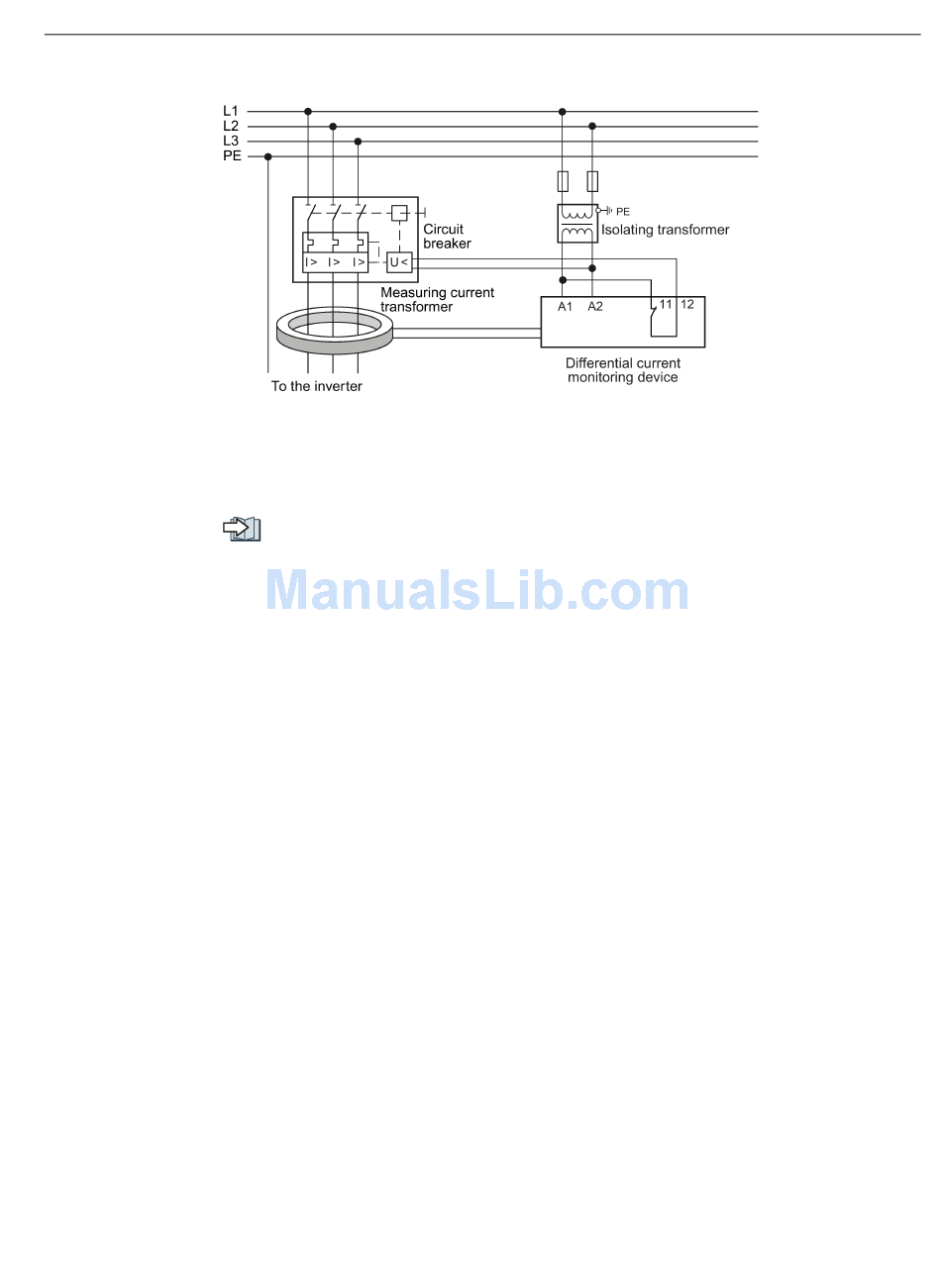

Image 5-1
● A dedicated RCD is used for every inverter.
● The motor cables are shorter than 50 m (164 ft) shielded, or 100 m (328 ft) unshielded.
Power Modules PM240
Hardware Installation Manual, 07/2016, A5E36985441C AA
MRCD
Length of motor cable (Page 43)
Connecting-up
37
