1. OVERVIEW

1.1 Package Content

□ Network camera
□ Installation Guide
□ CD-ROM disc (including user manuals & CMS software "Video Viewer")

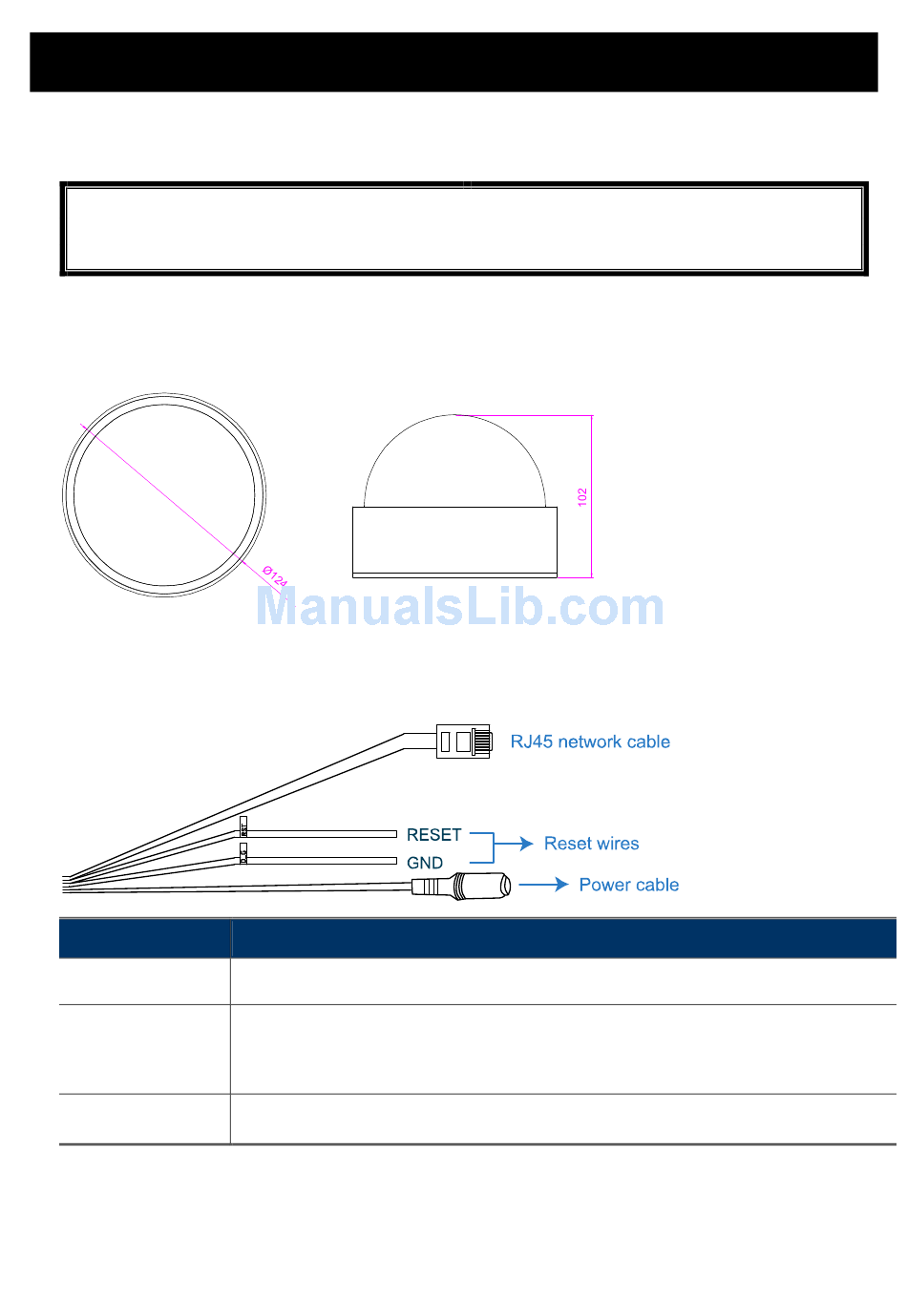

1.2 Dimensions

1.3 Cable Overview

CABLE
RJ45 network cable
Reset wires
Power cable
DESCRIPTION
Connect it to the supplied RJ45 cable extender adapter for cable extension, and
prepare another RJ45 network cable with suitable length for your connection.
Remove the insulating coating of these two wires, and twist them together to reset
default. This will reset all parameters, including the IP address to factory default settings.
Note: Disconnect power before twisting these two wires together, and connect
to power again for reset default.
Connect to DC12V power supply.
Note: The power adapter is optional.
□ RJ45 cable extender adapter
□ Three screw pads
1
