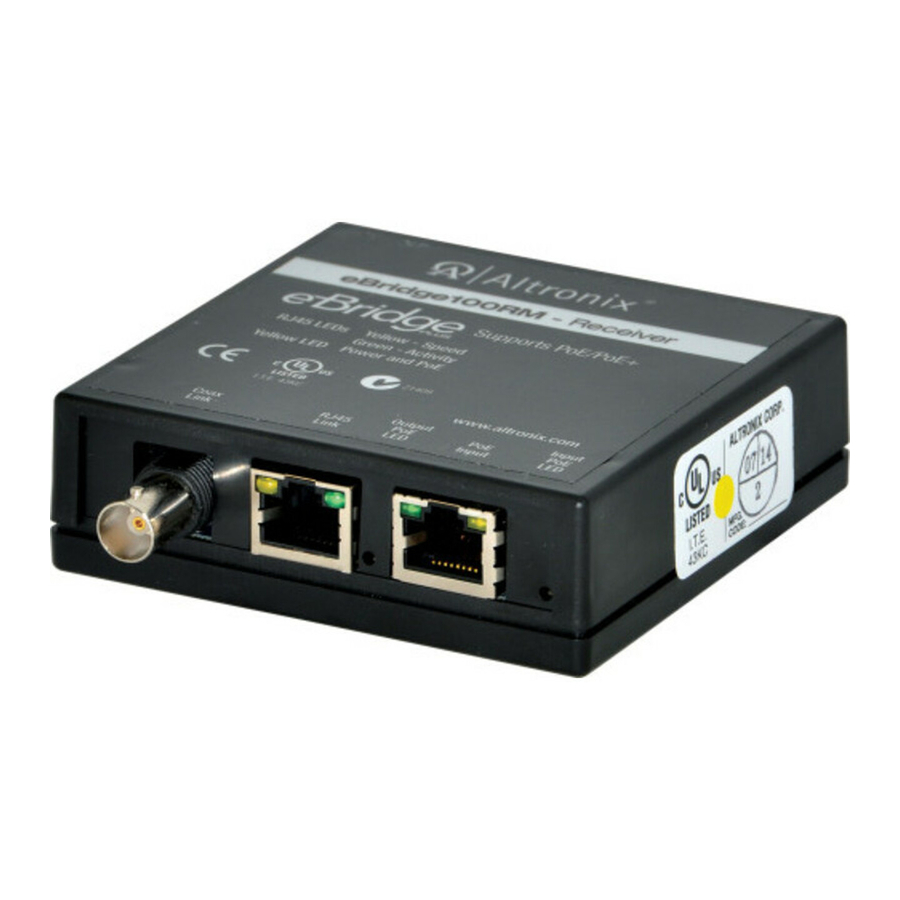

Altronix eBridge100RM Installation Manual

eBridge100RM is a versatile dual solution Ethernet receiver/media converter which transmits data at 100Mbps full
duplex and power over Coax cable or extended CAT5e cable in a PoE+ compliant format. The eBridge100RM is
powered via a PoE midspan such as the Altronix NetWay series or by an endspan. The receiver passes the PoE(+)
compliant power over cable to the eBridge100TM/eBridge100ST transceiver which in turn passes this power to
an enabled IP Camera/device. These plug and play units facilitate cost effective solutions for IP devices that need
to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products
with new IP devices over existing coax or structured cable.
Agency Listings:
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE European Conformity.
• C-Tick compliant.
Input eBridge100RM:
• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5.
• Distance: up to 500m.
• Speed: 10/100BaseT, half/full duplex,
auto negotiation.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
Delivered to camera by eBridge100TM.
Power provided by eBridge100RM to
eBridge100TM by PoE protocol.*
• Throughput is rated to pass 100Mbps of
data at distances up to 500m.
Coax Link:
• Distance: Coax 300m (Maximum Length of
Coax Type vs. Camera Power/PoE Class, pg. 4) for
power delivery.
• Connectivity: BNC, RG-59/U or similar.
Coax or CAT5e Link:
• Distance: CAT5e up to 500m, Coax 300m
(Maximum Length of Coax or CAT5 Type vs. Camera
Power/PoE Class, pg. 4) for power delivery.
LED Indicators:
• Green - PoE ON (by respective RJ45 jack).
• Yellow and Green LED (RJ45) -
IP Link status, 10/100Base-T/active.
*See note on the Page 3.
eBridge100RM
IP and PoE+
Over Coax or
Extended Ethernet Cable
PLUS
Installation Guide
Overview:
Features:
Environmental:
• Operating Temperature:
eBridge100RM:
– 20ºC to 49ºC (– 4ºF to 120.2ºF).
eBridge100TM:
– 20ºC to 49ºC (– 4ºF to 120.2ºF).
eBridge100ST:
For 15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
For 30W: – 40ºC to 60ºC (– 40ºF to 140ºF).
• Storage Temperature:
– 30º to 70ºC (– 22º to 158ºF).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog
CCTV installation.
• Works with Megapixel, HD720, HD1080 and
VGA (SD) cameras (see note, pg. 2).
• Extend Network link distance in an industrial
environment over 700m (see note, pg. 2).
• Upgrade deployed CCTV Coax to a digital
network in Retail, Casinos, Airports, Schools,
Hospitals, etc.
Mechanical:
• Dimensions (W x L x H approx.):
eBridge100RM/eBridge100TM:
3.5" x 4.375" x 1"
(88.9mm x 111.1mm x 25.4mm)
eBridge100ST:
2.27" x 2.645" x 1.12"
(57.66mm x 67.18mm x 28.44mm)
I.T.E. 43KC
Z1409
