i3 International Ax47R User Manual

1.3/3MP Infrared Mini Outdoor IP Dome Camera

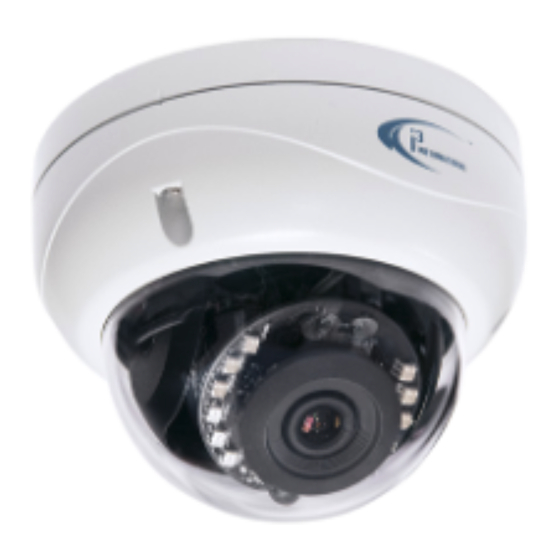

Thank you for purchasing i3 International's Ax47R/67R mini IP dome camera.
Your camera is equipped with a fixed 2.8mm @ F1.8 or 4.0mm @ F1.6 lens.
This camera series is compatible with the optional T-Grip, T-bar ceiling clip, (Part#: B8) for
easy one-hand installation on most Standard 1" drop-ceiling grid types.
SAFETY
When installing your Ax47R/67R camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light and unstable light sources
• temperatures below -20° C (-4° F) and above 50° C (122° F
To avoid electrical shock and to preserve the product warranty, DO NOT disassemble the
camera. Refer servicing to qualified personnel only.
POWER SUPPLY
This camera accepts PoE power.
Ensure the supplied voltage meets the power consumption requirements of this camera
before powering the camera on. Incorrect voltage may cause irreparable damage to the
video camera and will effectively void the camera warranty.
CLEANING
• For maximum optical clarity, the camera dome or lens must remain clean. Use a soft,
dry cloth to remove finger prints or dust from the dome cover.
• Use a blower to remove dust from the lens.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may dam-
age the surface finishes.
PACKAGE CONTENTS
Ensure that the items received match those listed on the order form and the packing slip.
In addition to this manual and a fully assembled camera, the dome camera packing box
includes:
1. Surface Mount template x1
2. Desiccant (attach to the inside of the Inner Liner) x1
3. Security torx bit x1
4. Round Head Screw (Tapping Type) x3
5. Plastic Anchor x3
6. Standard RJ45 Connector x2
2 3
Scan this QR code or visit ftp.i3international.com to view
and download AnnexxusConfigurationTool v1.5 (ACT) and
the full User Manual.
Contact our Technical Support team at: 1.877.877.7241 or
support@i3international.com if you have any questions
or concerns regarding camera installation or if you require
software services or support.
i3-TRNG-CAMS-Ax47R_67R_T-Grip.indd
).
3-Ø4.5 holes
(for plastic anchor)
Cable hole
Logo Direction
1
4 5 6
QR Code for Complete
User Manual and ACT
User Manual
Ax47R/67R

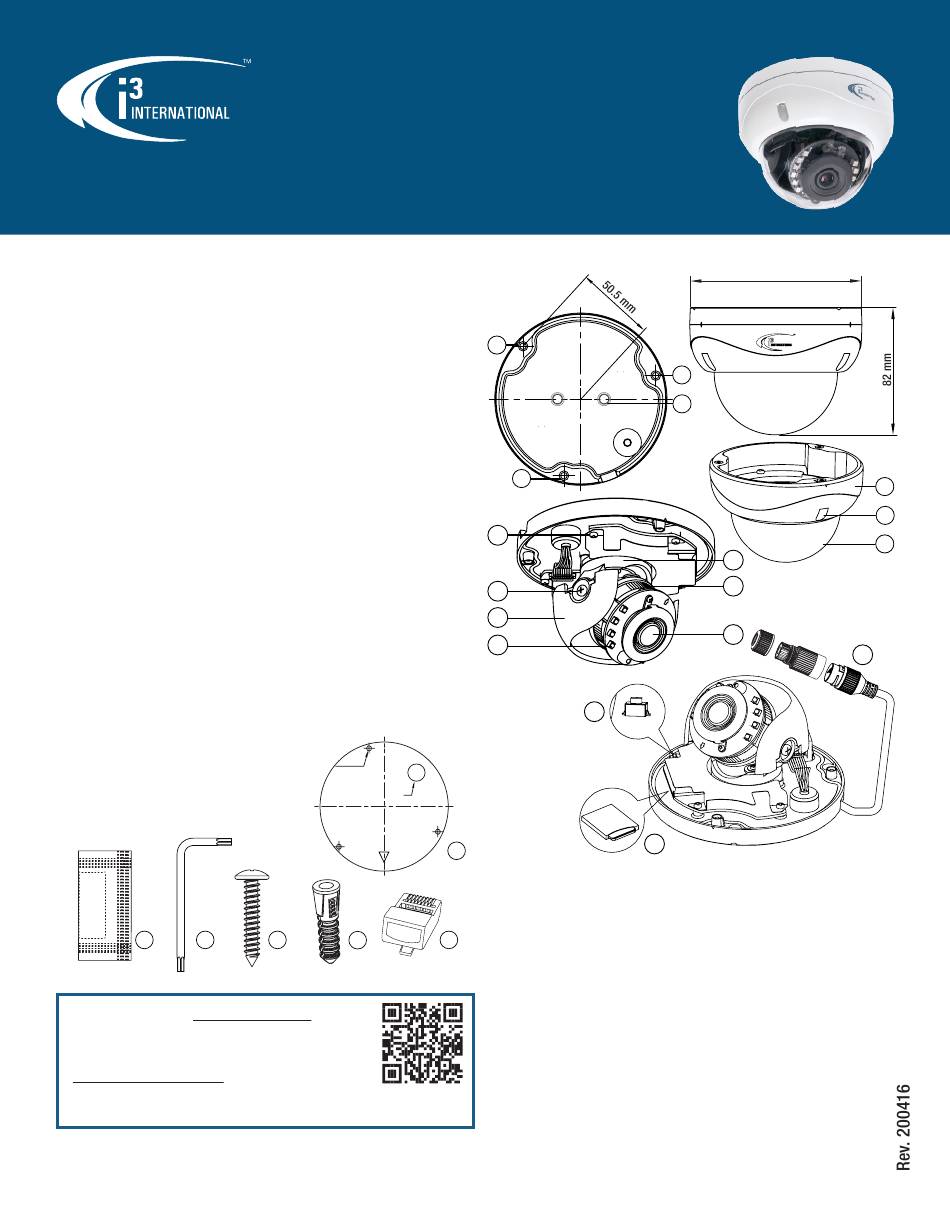

CAMERA PARTS AND DEFINITIONS
2
2
6
7
8
9
14
1. Stand-offs for the optional T-Grip (B8) installation. Attach B8 with two provided
screws, if using. See Drop-Ceiling Installation section for more information.
2. Mounting holes (x3)
3. Dome cover
4. Screws securing the dome cover to camera module (x3, silver)
5. Dome bubble
6. Screws attaching camera module to the camera base (x4, black)
7. Tilt bracket with two locking screws. Loosen the screws and tilt to adjust
lens angle.
8. Inner Liner / Shroud. Attach the desiccant to the inside of the Inner Liner,
without obstructing the lens movement.
9. IR board
10. Camera Lens Assembly. Pan to adjust lens angle.
11. Lens base. Rotate to adjust lens angle.
12. Camera lens.
13. RJ45 Ethernet PoE Port with waterproof RJ45 connector assembly.
Insert an Ethernet cable into the port for network connection as well as PoE
(Power over Ethernet) power. To maintain water-resistant rating in outdoor
installations, make sure to use the included waterproof RJ45 Connector
assembly.
14. Reset/Default button. Press for 1 second to reboot the camera.
Press for 6 seconds to restore camera settings to factory defaults.
15. MicroSD Card slot for on-camera video storage. (MicroSD card sold
separately).
110.97 mm
2
1
10
11
12
15
3
4
5
13
