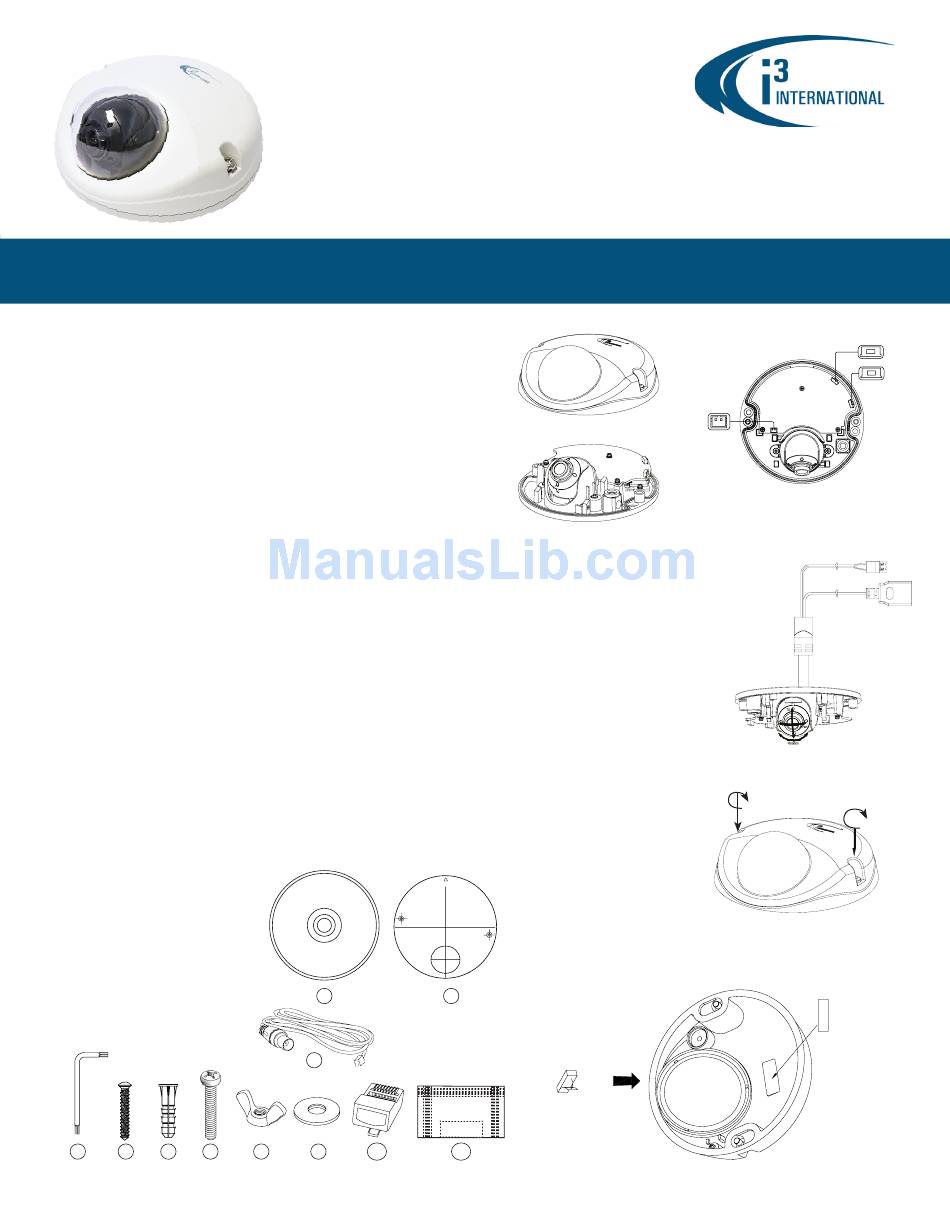

Network 1MP Wedge Camera

SAFETY

When installing your Ax40W camera be sure to avoid:
excessive heat, such as direct sunlight or heating appliances
contaminants such as dust and smoke
strong magnetic fields
sources of powerful electromagnetic radiation such as radios or TV transmitters
moisture and humidity
areas with mechanical vibrations
fluorescent lamps or objects that reflect light
unstable light sources as this may cause flickering
temperatures below -10° Celsius or 14° Fahrenheit and above 40° Celsius or 104°
.
Fahrenheit
For more details on installation and operation, please refer to the CD
provided.
Equipment to be used in a Network Environment 0 per IEC TR62101. The camera is to
be connected only to PoE network that complies with IEEE 802.3af without routing to the
outside plant.

POWER SUPPLY

Ensure the supplied voltage meets the power consumption requirements of this camera
before powering the camera on. Incorrect voltage may cause irreparable damage to the
video camera and will effectively void the camera warranty. PoE power is supported by
this camera series.

CLEANING

For maximum optical clarity, the camera dome or lens must remain clean. Use a soft,
dry cloth to remove finger prints or dust from the dome cover.
Use a blower to remove dust from the lens.
Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened with a
small quantity of neutral detergent, then wipe dry.
Do not use volatile solvents such as alcohol, benzene, or thinners, as they may dam-
age the surface finishes.

SERVICING

To avoid electrical shock and to preserve the product warranty, DO NOT disasemble the
camera. Refer servicing to qualified personnel only.

PACKAGE CONTENTS

1.
User Manual CD x1
2.
Guide Pattern sticker x1
3.
2nd video monitor output BNC cable x1
4.
Hex key x1
5.
Plastic Anchor x2
6.
Round Head Screw (Tapping Type) x2
7.
Flat Head Screw (Machine Type 30L) x2
8.
Wing (Butterfly) nut x2
9.
Washer x2
10. Standard RJ45 Connector x2
11. Desiccant in a package x1
4
5
6
7
i3-TRNG-CAMS-Ax40W-series-QuickGuide.indd
270°
User Guide
IP Finder
1
3
8
9
10

CAMERA PARTS AND DEFINITIONS

Camera Dome
Camera Body - Side View
Connect the PoE or DC12V power connector.
PoE (IEEE 802.3af): Connect the RJ-45 connector to a
PoE compatible network device that supplied power
through the Ethernet cable.
DC12V: Connect the DC12V power connector to a
DC12V power.
WARNING! DO NOT connect both PoE and
DC12V power connectors at the same time.
For DC power supply use, make sure the
polarity is correct to avoid malfunction and /
or camera damage.

DISASSEMBLING THE CAMERA

Before you mount and adjust the camera, follow these steps to disassemble the
camera.
1.
Using the hex key provided,
loosen two screws on the cover.
2.
Remove the dome cover.
FRONT

ATTACHING THE DESICCANT

90°
1.
Take the desiccant out of the package (#11 on the Accessories list)
2.
Peel the protective layer revealing the adhesive surface on the desiccant and
CABLE
attach to the inside of the dome cover as shown in the diagram below.
180°
2
Peel the
protective
layer on the
desiccant
11

Quick Start Guide

Ax40W2/4/8-series
Camera Body - Top View
VIDEO OUT
1.
VIDEO OUT: Video output connector.
2.
DEFAULT: Press and hold for 5 seconds
to return to factory default.
3.
RESET: Press to reboot system.
Rev.
RESET
DEFAULT
DC12V
POE/ETHERNET
Attach
dessicant to
the inside
of the dome
cover
141126
