- Page 1 PU-USBX USB over Ethernet Extender OPERATION MANUAL...
-
Page 2: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
Table of Contents 1. Introduction ................. 1 2. Applications ................1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. System Requirements ..............2 7. Specifications ................2 8. Operation Controls and Functions ..........3 Front Panel .............. -
Page 4: Introduction
1. Introduction The USB over Ethernet Extender is a great and simple device that allows you to utilize your USB devices over existing network installation or connect directly withyour PC/NB source equipment. For household and commercial environtment this device makes hand on multi-controls for users within the network system group. -
Page 5: System Requirements
6. System Requirements System Hardware Requirements: 2.4GHz single core CPU with at least 1GB RAM for optimal performance Operating Systems: • Windows XP Home or Professional 32 bits SP2 • Windows Vista 32 bits, • Window 7 7. Specifications Input 1 x Ethernet RJ-45;... -
Page 6: Operation Controls And Functions

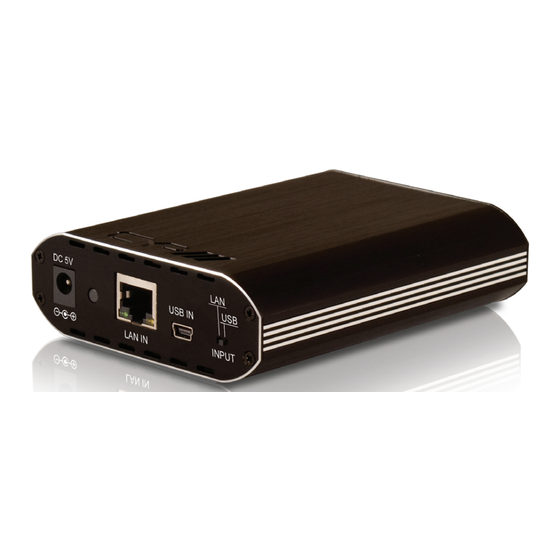

8. Operation Controls and Functions 8.1 Front Panel . DC 5V: Plug the DC 5V power supply and connect the adaptor to AC wall outlet. . Power LED: This green LED will illuminate when the device is connected with power supply. . - Page 7 A. Access USB gadgets as well as Laptops and PCs over existing Intranet network – the LAN Mode; The LAN Mode is extremely useful in any home / office configured with network infrastructure, as the device allows users connected to the LAN (Local Area Network) to access up to any four USB devices available within the same Intranet.
-
Page 8: Software Installation
9. Software Installation The following sections list the procedures to follow when installing the USB to HDMI and USB device drivers. Insert the provided CD into your CD-ROM drive, then begin the USB Install Disc and follow the below steps to install the driver. 9.1 Install USB Server Software Double click on the USB Server Setup icon to execute the set up and click finish when the setup is complete. -
Page 9: Using Usb Server
9.2 Using USB Server Double click on the Launch USB Server icon from the desktop or from the button right side and the USB Server window will appear on the desktop. Connect both PC/Laptop and the device with RJ-45 cable and click on Search and switch the INPUT switch on the device to LAN. -
Page 10: Uninstall The Device Driver
10. Uninstall the Device Driver Follow the steps below to uninstall the Multi View driver. Step 1: Open the Control Panel: Start → Control Panel → Add or Remove Programs. Step 2: Select USB Server and click Remove . -
Page 11: Connection And Installation
11. Connection and Installation Mini USB IN USB X 4 Ethernet Hub LAN IN Keybord Mouse Printer... -
Page 12: Acronyms
Acronyms Acronym Complete Term Universal Serial Bus... - Page 13 www.cypeurope.com...
