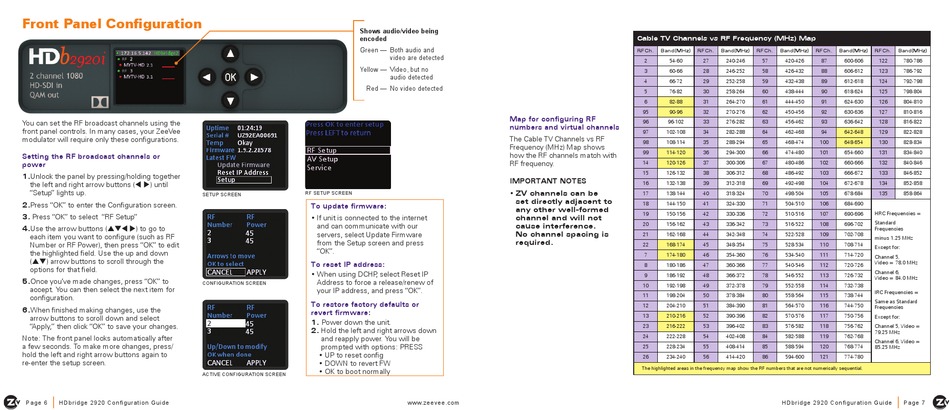

Front Panel Configuration

You can set the RF broadcast channels using the
front panel controls. In many cases, your ZeeVee
modulator will require only these configurations.
Setting the RF broadcast channels or
power
1. Unlock the panel by pressing/holding together
the left and right arrow buttons ( ) until
"Setup" lights up.
SETUP SCREEN
2. Press "OK" to enter the Configuration screen.
3. Press "OK" to select "RF Setup"
4. Use the arrow buttons ( ) to go to
each item you want to configure (such as RF
Number or RF Power), then press "OK" to edit
the highlighted field. Use the up and down
() arrow buttons to scroll through the
options for that field.
5. Once you've made changes, press "OK" to
CONFIGURATION SCREEN
accept. You can then select the next item for
configuration.
6. When finished making changes, use the
arrow buttons to scroll down and select
"Apply," then click "OK" to save your changes.
Note: The front panel locks automatically after
a few seconds. To make more changes, press/
hold the left and right arrow buttons again to
re-enter the setup screen.
ACTIVE CONFIGURATION SCREEN
|
Pa ge 6 H D br i dg e 29 2 0 Co n fi g u ra tio n Gu id e
Shows audio/video being
encoded
Green — Both audio and
video are detected
Yellow — Video, but no
audio detected
Red — No video detected
RF SETUP SCREEN
To update firmware:
• If unit is connected to the internet
and can communicate with our
servers, select Update Firmware
from the Setup screen and press
"OK".
To reset IP address:
• When using DCHP , select Reset IP
Address to force a release/renew of
your IP address, and press "OK".
To restore factory defaults or
revert firmware:
1. Power down the unit.
2. Hold the left and right arrows down
and reapply power. You will be
prompted with options: PRESS
• UP to reset config
• DOWN to revert FW
• OK to boot normally
w ww.z eev ee.c om

Cable TV Channels vs RF Frequency (MHz) Map

RF Ch. Band (MHz)
2 54-60
3 60-66
4 66-72
5 76-82
6 82-88
95 90-96
Map for configuring RF
96 96-102
numbers and virtual channels
97 102-108
The Cable TV Channels vs RF
98 108-114
Frequency (MHz) Map shows
99 114-120
how the RF channels match with
RF frequency. 14 120-126
15 126-132
IMPORTANT NOTES
16 132-138
• ZV channels can be
17 138-144
set directly adjacent to
18 144-150
any other well-formed
19 150-156
channel and will not
20 156-162
cause interference.
No channel spacing is
21 162-168
required.
22 168-174
7 174-180
8 180-186
9 186-192
10 192-198
11 198-204
12 204-210
13 210-216
23 216-222
24 222-228
25 228-234
26 234-240
The highlighted areas in the frequency map show the RF numbers that are not numerically sequential.
RF Ch. Band (MHz) RF Ch. Band (MHz) RF Ch. Band (MHz) RF Ch.
27 240-246 57 420-426 87 600-606
28 246-252 58 426-432 88 606-612
29 252-258 59 432-438 89 612-618
30 258-264 60 438-444 90 618-624
31 264-270 61 444-450 91 624-630
32 270-276 62 450-456 92 630-636
33 276-282 63 456-462 93 636-642
34 282-288 64 462-468 94 642-648
35 288-294 65 468-474 100 648-654
36 294-300 66 474-480 101 654-660
37 300-306 67 480-486 102 660-666
38 306-312 68 486-492 103 666-672
39 312-318 69 492-498 104 672-678
40 318-324 70 498-504 105 678-684
41 324-330 71 504-510 106 684-690
42 330-336 72 510-516 107 690-696 HRC Frequencies =
Standard
43 336-342 73 516-522 108 696-702
Frequencies
44 342-348 74 522-528 109 702-708
minus 1.25 MHz
45 348-354 75 528-534 110 708-714
Except for:
46 354-360 76 534-540 111 714-720
Channel 5,
Video = 78.0 MHz
47 360-366 77 540-546 112 720-726
Channel 6,
48 366-372 78 546-552 113 726-732
Video = 84.0 MHz
49 372-378 79 552-558 114 732-738
IRC Frequencies =
50 378-384 80 558-564 115 738-744
Same as Standard
51 384-390 81 564-570 116 744-750
Frequencies
52 390-396 82 570-576 117 750-756
Except for:
53 396-402 83 576-582 118 756-762 Channel 5, Video =
79.25 MHz
54 402-408 84 582-588 119 762-768
Channel 6, Video =
55 408-414 85 588-594 120 768-774
85.25 MHz
56 414-420 86 594-600 121 774-780
H D bri d ge 2 92 0 Co n f ig u ra t io n Gu id e
Band (MHz)
122 780-786
123 786-792
124 792-798
125 798-804
126 804-810
127 810-816
128 816-822
129 822-828
130 828-834
131 834-840
132 840-846
133 846-852
134 852-858
135 858-864
|
