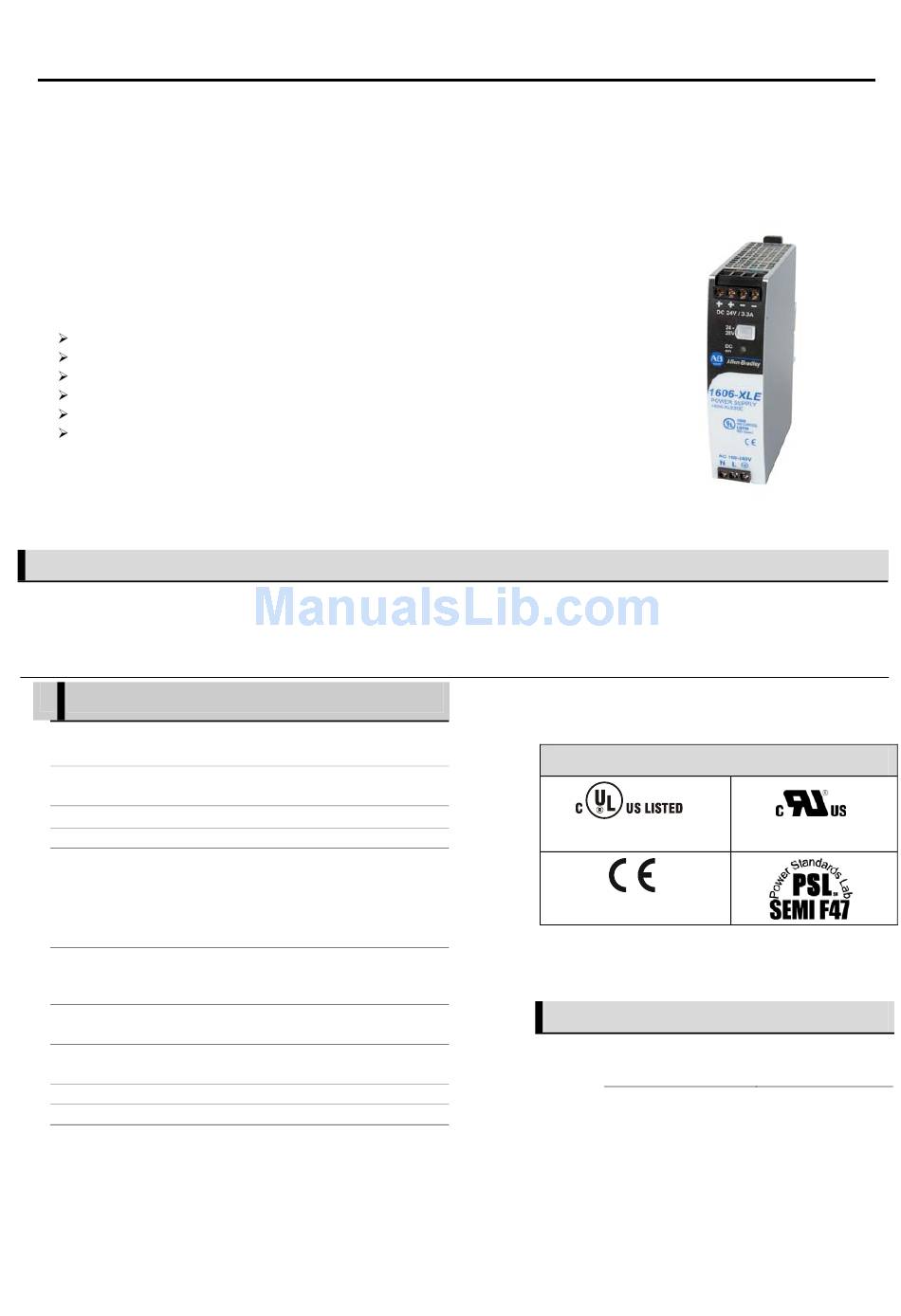

ENERAL ESCRIPTION The 1606 XLE power suppliesare cost optimized power supplies without compromising quality, reliability and performance. The 1606-XLE80E is part of the XLE power supply family. The 1606-XLE includes all the essential basic functions. The most important features are the small size, the high efficiency and the wide temperature range.The wide-range-input makes worldwide installation and usage very simple.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 5. AC-I NPUT AC input nom. AC 100-240V Wide-range- input, see Fig. 5-1 AC input range 90-264Vac 100-120V range, continuous operation 85-90Vac Short term or with output derating 264-300Vac < 0.5s Input frequency nom.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 6. DC-I NPUT DC input nom. DC 110-300V DC input range min. 88-375Vdc Continuous operation DC input current typ. 0.81A / 0.29A 110Vdc / 300Vdc, 24V, 3.3A Output current max. 2.5A At 24V and an input voltage between 88-110Vdc, see Fig.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 7. I NPUT NRUSH URRENT URGE A NTC limits the input inrush current after turn-on of the input voltage. The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 9. O UTPUT Output voltage nom. Adjustment range min. 24-28V Guaranteed max. At clockwise end position of potentiometer Factory setting ±0.2%, at full load, cold unit 24.1V Line regulation max. 50mV 90 to 264Vac Load regulation max.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 11. F UNCTIONAL IAGRAM Fig. 11-1 Functional diagram Output Voltage Regulator Input Input Fuse Rectifier Power Output & & Converter Filter Input Filter NTC Inrush Limiter Output Over- Voltage Protection 12. R ELIABILITY These units are extremely reliable and use only the highest quality materials.

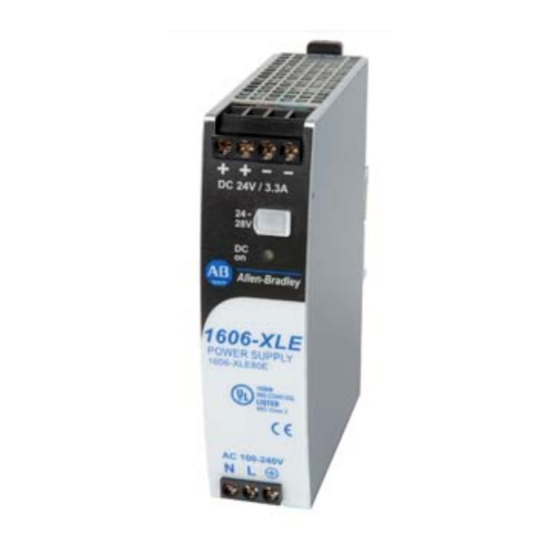

Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 13. P RODUCT ABEL Fig. 13-1 Front side Output Terminals Output voltage potentiometer Screw terminals Open the flap to tune the output voltage. Factory set: 24.1V Positive output Negative (return) output Dual pins per pole...
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 14. T ERMINALS AND IRING All terminals are easy to access when mounted on the panel. Input and output terminals are separated from each other (input below, output above) to help in error-free wiring.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 15. EMC The CE mark is in conformance with EMC directive 89/336/EC, 93/68/EC and 2004/108/EC and the low-voltage directive (LVD) 73/23/EWG. EMC Immunity EN 61000-6-2, EN 61000-6-1 Generic standards Electrostatic discharge EN 61000-4-2...
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 16. E NVIRONMENT Operational temperature -25°C to +70°C (-13°F to 158°F) Resistive load, Reduce output power according Fig. 16-1 Output de-rating 1.8W/°C 60-70°C (140°F to 158°F) Storage temperature -40 to +85°C (-40°F to 185°F)
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 18. S AFETY Input / output separation SELV IEC/EN 60950-1 PELV EN 60204-1, EN 50178, IEC 62103, IEC 60364-4-41 double or reinforced insulation Class of protection PE (Protective Earth) connection required Isolation resistance >...
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 20. A PPROVALS IECEE IEC 60950-1 CB Scheme, Information Technology Equipment CB SCHEME UL 508 LISTED E198865 18WM Industrial Control Equipment LISTED IND. CONT. EQ. NEC Class 2 According to NEC (National Electrical Code) Article 725-41 (4).
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 22. U UBSTANCES The unit does not release any silicone and is suitable for the use in paint shops. The unit conforms to the RoHS directive 2002/96/EC Electrolytic capacitors included in this unit do not use electrolytes such as Quaternary Ammonium Salt Systems.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 24. I NSTALLATION AND PERATION NSTRUCTIONS Hazardous voltage inside device. Risk of electric shock, severe burns, or death. • Do not use the unit without proper earth connection (Protective Earth). Use the pin on the terminal block for earth connection and not one of the screws on the housing.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 26. A PPLICATION OTES 26.1. P URRENT APABILITY Solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil. The inrush current demand of the pick-up coil is several times higher than the steady state current and usually exceeds the nominal output current (including the PowerBoost) The same situation applies, when starting a capacitive load.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 26.4. O UTPUT IRCUIT REAKERS Standard miniature circuit breakers (MCBs) can be used for branch protection. Ensure that the MCB is rated for DC voltage, too. The following tests show which circuit breakers the power supply typically trips.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 26.6. S ERIES PERATION The power supply can be put in series to increase the output voltage. Instructions for use in series: Fig. 26-5 Schematic for series operation It is possible to connect as many units in series as needed, providing the sum of the output voltage does not exceed 150Vdc.
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 26.10. O PERATION ON HASES Fig. 26-6 Schematic for two phase operation Instructions for two phase operation: Power S upply A phase to phase connection is allowed as long as the supplying voltage is...
Rockwell Automation 1606-XLE80E-2 24V, 3.3A; Single Phase Input 26.12. M OUNTING RIENTATIONS Mounting orientations other than input terminals on the bottom and output on the top require a reduction in continuous output power or a limitation in the max. allowed ambient temperature. The amount of reduction influences the lifetime expectancy of the power supply. Therefore, two different derating...
