Rockwell Automation Allen-Bradley 1606-XLE240E Reference Manual

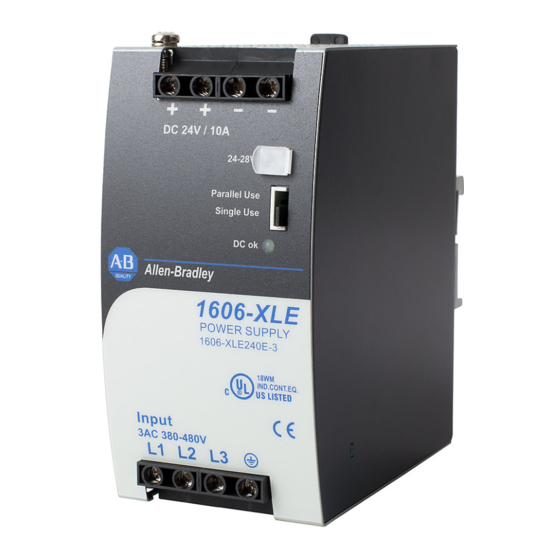

Power supply - 24v, 10 a, 240 w, single-phase input
Hide thumbs
Also See for Allen-Bradley 1606-XLE240E:
- Instruction manual (4 pages) ,
- Installation instructions (2 pages)
Related Manuals for Rockwell Automation Allen-Bradley 1606-XLE240E
Summary of Contents for Rockwell Automation Allen-Bradley 1606-XLE240E
- Page 1 Power Supply - 24V, 10 A, 240 W, Single-phase Input Catalog Numbers 1606-XLE240E, 1606-XLE240EC, 1606-XLE240EL, 1606-XLE240EH, 1606-XLE240ED Reference Manual Original Instructions...
- Page 2 If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
-
Page 3: Table Of Contents
Mounting Orientations ......... . 35 Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... - Page 4 Notes: Rockwell Automation Publication 1606-RM101A-EN-P - July 2020...
-
Page 5: Terminology And Abbreviations
Easy Fuse Breaking due to High Overload Peak Current • Active Power Factor Correction (PFC) • Minimal Inrush Current Surge • Full Power From -25…+60 °C (-13…+140 °F) • DC OK Relay Contact Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 6: Specifications
Power supply, screw terminals, conformal coated printed circuit boards 1606-XLE240EL Power supply, spring-clamp terminals 1606-XLE240EH Power supply, push-in terminals 1606-XLE240EP Power supply, screw terminals, extended DC input range 1606-XLA-XLE Wall/panel mount bracket 1606-XLA-S44 Side mount bracket Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 7: Ac Input
0.95 a) 100V AC b) 120V AC c) 230V AC (a) 100V AC, 0.85 (b) 120V AC, (c) 230V AC Output Current Output Current 0.75 10 11 12 A 10 11 12 A Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 8: Dc Input
2. Connect +pole to L and –pole to N. 3. Connect the PE terminal to an earth wire or to the machine ground. Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 9: Input Inrush Current
230V AC Input, and 25 °C (77 °F) Ambient 50 ms/DIV 50 ms/DIV Input current Input current 2 A/DIV 2 A/DIV Input voltage Input voltage 250V/DIV 500V/DIV Output voltage 20V/DIV Output voltage 20V/DIV Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 10: Output
12.5 15 17.5 20 A 50 A PLUS Figure 10 - Short-circuit on Output, Hiccup Mode, Typ Output Current Normal Normal Short -circuit operation operation 14 A 18 s 18 s 18 s Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 11: Hold-Up Time
Minimal permissible load: 1 mA at 5V DC Isolation voltage Dielectric Strength on page Figure 13 - DC OK Relay Contact Behavior 0.9* V < > 100 ms 1 ms 1 ms open closed open closed Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 12: Efficiency And Power Loss
Figure 16 - Efficiency vs. Input Voltage at 24V, 10 A, Typ Figure 17 - Power Losses vs. Input Voltage at 24V, 10 A, Typ Efficiency Power Losses Input Voltage Input Voltage 264V AC 264V AC Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 13: Lifetime Expectancy
At 24V, 10 A and 40 °C (104 °F); 40,000 h 40,000 h 47,000 h Ground Fixed GF40 At 24V, 10 A and 25 °C (77 °F); 51,000 h 51,000 h 61,000 h Ground Fixed GF25 Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 14: Terminals And Wiring
10 mm (0.4 in.) 7 mm (0.28 in.) 3.0 mm (0.12 in.) slotted to 3.0 mm (0.12 in.) slotted to 3 mm (0.12 in.) slotted to Screwdriver open the spring open the spring open the spring Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 15: Wiring Instructions
Input Filter Output Power Filter Converter Input Rectifier Converter Inrush Current Limiter Output Voltage Regulator DC-ok Temper- Output Output Output ature Over- Power Voltage Shut- Voltage Manager DC-ok Monitor DC-ok down Protection Relay Contact Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 16: Front Side User Elements
On when the output voltage is in range and the DC OK contact is closed. DC OK Relay Contact (push-in terminals) Monitors the output voltage of the running power supply. See DC OK Relay Contact on page 11 for details. Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 17: Electromagnetic Compatibility
(2) Tested with constant current loads, non-pulsing. The following table provides switching frequencies. Converters Frequencies Notes PFC converter 110 kHz Fixed frequency Main converter 84…140 kHz Output load dependent Auxiliary converter 60 kHz Fixed frequency Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 18: Environment
Allowed Output Current at 24V 12 A 12 A 10 A 10 A A... 85 to 264V AC, continuous B... short term 70 °C 2000 m 4000 m 6000 m Ambient Temperature Altitude Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 19: Protection Features
At 110V AC, 50 Hz, TN-,TT-mains / IT-mains current) 0.26 mA max / 0.61 mA max At 132V AC, 60 Hz, TN-,TT-mains / IT-mains 0.44 mA max / 1.05 mA max At 264V AC, 50 Hz, TN-,TT-mains / IT-mains Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 20: Dielectric Strength
When testing input to DC OK, ensure that the max voltage between DC OK and the output is not exceeded (column D). We recommend connecting DC OK pins and the output pins together when performing the test. Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 21: Approvals
Council of June 1, 2007 regarding the REACH Directive Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) Safety Isolating Transformers corresponding to Part 2- IEC/EN 61558-2-16 (Annex BB) Safety Isolating Transformer 6 of the IEC/EN 61558 Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 22: Physical Dimensions And Weight
15 mm (0.30 in. or 0.59 in.). Body: Aluminum alloy Housing material Cover: Zinc-plated steel Installation clearances Specifications on page Figure 25 - Approximate Dimensions (in millimeters) 1606-XLE240E, 1606-XLE240EC, 1606-XLE240EP Side View 1606-XLE240EL 1606-XLE240EH Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 23: Accessories
All dimensions are in millimeters. Figure 26 - Left Isometric View Figure 27 - Right Isometric View Figure 28 - Back Isometric View Figure 29 - Front View Figure 30 - Bracket Figure 31 - Side View Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 24: Side Mount Bracket
Figure 32 - Side Mount Bracket Figure 33 - Side Mounting Without DIN Rail Brackets Figure 34 - Side Mounting With DIN Rail Brackets Figure 35 - Mounting Dimensions Side Mounting Bracket Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 25: Redundancy Module
This could help prevent redundancy if one power supply fails. Further information and wiring configurations can be found in Parallel Use for Redundancy on page Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 26: Peak Current Capability
From 24V to 17V At 20 A for 50 ms, resistive load From 24V to 19V At 50 A for 2 ms, resistive load From 24V to 15.5V At 50 A for 5 ms, resistive load Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 27: Back-Feeding Loads
If an external fuse is necessary or used, minimum requirements must be considered to avoid nuisance tripping of the circuit breaker. A minimum value of 6 A, B-Characteristic or C-Characteristic breaker should be used. Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 28: Output Circuit Breakers
9 m (29 ft) B-13 A 2 m (6 ft) 2 m (6 ft) 3 m (10 ft) 6 m (20 ft) Figure 39 - Test Circuit Power Supply Load Wire length S1... Fault simulation switch Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 29: Series Operation
(terminals on bottom of the unit). Leakage current, EMI, inrush current, harmonics increase when using multiple power supplies. Figure 40 - Series Operation Unit A Unit B Load Earth (see notes) Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 30: Parallel Use To Increase Output Power
Leakage current, EMI, inrush current, harmonics increase when using multiple power supplies. Figure 41 - Parallel Use to Increase Output Power Unit A Unit B Load Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 31: Parallel Use For Redundancy
Supply Supply Monitor Redundancy Supply Supply Module Output Output Input Input Input Input L N PE L N PE L N PE L N PE Max. Max. 10 A 10 A Load Load Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 32: N+1 Redundancy
If large capacitors, such as EDLCs (electric double layer Loads capacitors or “UltraCaps”) with a capacitance larger than 1.5 F are connected to the output, the unit might charge the capacitor in the HiccupPLUS mode (see Output on page 10). Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 33: Charging Of Batteries
The power supply can also be used on two-phases of a three-phase-system. Such a phase-to-phase connection is allowed as long as the supplying voltage is below 240V+10%. Figure 45 - Operation on Two Phases Power Supply Center Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 34: Use In A Tightly Sealed Enclosure
26.3 °C (79.34 °F) 26.6 °C (79.88 °F) 25.8 °C (78.44 °F) 26.2 °C (79.16 °F) Temperature rise 22.3 K (40.14 °F) 27.2 K (48.96 °F) 16.2 K (29.16 °F) 21.9 K (39.42 °F) Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... -
Page 35: Mounting Orientations
60 °C Output Current 12 A Figure 49 - Mounting Orientation D (horizontal clockwise) Ambient Temperature 60 °C Output Current 12 A Figure 50 - Mounting Orientation E (horizontal counterclockwise) Ambient Temperature 60 °C Rockwell Automation Publication 1606-RM101A-EN-P - July 2020... - Page 36 Notes: Rockwell Automation Publication 1606-RM101A-EN-P - July 2020...
- Page 37 Power Supply - 24V, 10 A, 240 W, Single-phase Input Reference Manual Additional Resources These documents contain additional information concerning related products from Rockwell Automation. Resource Description 1606-XL Power Supply Technical Data, publication 1606-TD001 Provides specifications and certifications for the 1606-XL240E-3 power supply.
- Page 38 At the end of life, this equipment should be collected separately from any unsorted municipal waste. Rockwell Automation maintains current product environmental compliance information on its website at rok.auto/pec. Allen-Bradley, expanding human possibility, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
