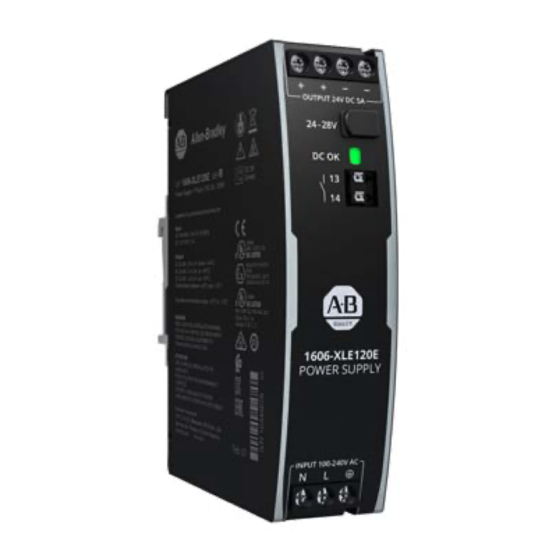

Rockwell Automation Allen-Bradley 1606-XLE120E Original Instructions Manual
Power supply - 24v, 5 a, 120 w, single-phase input
Hide thumbs
Also See for Allen-Bradley 1606-XLE120E:
- Instruction manual (4 pages) ,
- Installation instructions (2 pages)
Related Manuals for Rockwell Automation Allen-Bradley 1606-XLE120E
Summary of Contents for Rockwell Automation Allen-Bradley 1606-XLE120E
- Page 1 Power Supply - 24V, 5 A, 120 W, Single-phase Input Catalog Numbers 1606-XLE120E, 1606-XLE120EC, 1606-XLE120EL, 1606-XLE120EH, 1606-XLE120ED Reference Manual Original Instructions...
- Page 2 If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
-
Page 3: Table Of Contents
Additional Resources ..........31 Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... - Page 4 Notes: Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
-
Page 5: Product Overview
Easy Fuse Breaking—three times nominal current for 12 ms • Safe HiccupPLUS Overload Mode • Active Power Factor Correction (PFC) • Minimal Inrush Current Surge • Full Power -25…+60 °C (-13 °F…+140 °F) • DC OK Relay Contact Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 6: Specifications
A figure with the unit (V AC) at the end is a momentary figure without any additional 230V AC tolerances included. 50 Hz vs. 60 Hz As long as not otherwise stated, AC 230V parameters are valid at 50 Hz mains frequency. Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 7: Ac Input
Figure 1 - Input Voltage Range Figure 2 - Turn-on Behavior, Definitions Figure 3 - Input Current Versus Output Current at 24V Output Voltage Figure 4 - Power Factor Versus Output Current at 24V Output Voltage Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 8: Dc Input
Figure 7 - Typical Turn-on Behavior at Nominal Load, 230V AC Input, and 25 °C (77 °F) Ambient and 25 °C (77 °F) Ambient Battery Power Supply Input 50ms/DIV current 2A/DIV Input voltage 200V/DIV Load Output voltage Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 9: Output
Figure 9 - Dynamic Output Current Capability, Typ Output Voltage Adjustment Output Voltage (dynamic behavior, < 12ms) Range Adjustment Range A: continuous current B: intermittent current Output Current Output Current 12.5 17.5 22.5 25 A Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 10: Hold-Up Time
Minimal permissible load: 1 mA at 5V DC Isolation voltage Dielectric Strength on page 17 Figure 13 - DC OK Relay Contact Behavior V OUT = V ADJ 0.9* V ADJ < > 1...4ms 100ms open closed open closed Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 11: Efficiency And Power Losses
Output Power Converter Converter Filter Input Rectifier Inrush Current Limiter Output V OUT Voltage Regulator DC OK Output Output Output Temperature Power Over-voltage Voltage DC-ok DC OK Shut-down Manager Protection Monitor Relay Contact Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 12: Front Side And User Elements
The DC OK relay contact is synchronized with teh DC OK light- emitting diode (LED). See DC OK Relay Contact on page Connection Terminals The terminals are IP20 fingersafe constructed and suitable for field and factory wiring. Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... - Page 13 10 mm (0.4 in.) 10 mm (0.4 in.) Screwdriver 3.0 mm (0.12 in.) slotted to open spring 3.0 mm (0.12 in.) slotted to open spring 3.0 mm (0.12 in.) slotted to open the spring Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
-
Page 14: Lifetime Expectancy
81,000 hr 83,000 hr 89,000 hr At 24V, 5 A and 40 °C (104 °F); Ground Fixed GF40 800,000 hr 807,000 hr 867,000 hr At 24V, 5 A and 40 °C (104 °F) Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 15: Emc
Switching Frequency PFC converter 110 kHz Fixed frequency Main converter 84 kHz …140 kHz Output load dependent Auxiliary converter 60 kHz Fixed frequency Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 16: Environment
Allowed Output Current at 24V 3.8 A A... 85 to 264V AC, continuous B... short term Altitude 2000 m 5000 m 70°C 110 kPa 54 kPa 80 kPa Ambient Temperature * Atmospheric pressure Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 17: Safety And Protection Features
2500V AC 500V AC 500V AC Field test 2000V AC 2000V AC 500V AC 500V AC Field test cut off current settings > 10 mA > 10 mA > 20 mA > 1 mA Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... - Page 18 (1) When testing inputs to DC OK confirm that the maximal voltage between DC OK and the output is not exceeded (column D). We recommend connecting DC OK pins and the output pins together when performing the test. Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
-
Page 19: Approvals And Fulfilled Standards
Manufacturer's Statement RoHS Administrative Measures for the Restriction of the Use of (China RoHS 2) Hazardous Substances in Electrical and Electronic Products 25 years EAC Certificate EAC Eurasian Conformity—Registration Russia, Kazakhstan, and Belarus Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 20: Physical Dimensions
Small parts like screws, nuts, etc. with a diameter larger than 3.5 mm (0.14 in.) Figure 27 - Front View Approximate Dimensions (in millimeters) Figure 28 - Side View Approximate Dimensions (in millimeters) 1606 -XLE120E, -XLE120EC, 1606-XLE120EL 1606-XLE120EH -XLE120ED Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... -
Page 21: Accessories
For a safe and vibration resistant wiring, the device is equipped with time saving quick connect spring clamp terminals. The unit is narrow and only requires 32 mm (1.26 in.) width on the DIN rail. Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... - Page 22 The 1606-XLSBUFFER24 buffer module is a supplementary device for DC 24V power supplies. It delivers power to bridge typical mains failures or extends the hold-up time after the AC power is turned off. Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
-
Page 23: Application Notes
Figure 36 - 25 A Peak Current for 5 ms, Typ Figure 37 - 15 A Peak Current for 12 ms, Typ (2x the Nominal Current) (5x the Nominal Current) (3x the Nominal Current) Rockwell Automation Publication 1606-RM100A-EN-P - July 2020... - Page 24 Keep an installation clearance of 15 mm (0.59 in.) (left/right) between two power supplies and avoid installing the power supplies on top of each other. Do not use power supplies in series in mounting orientations other than the standard mounting orientation. Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
- Page 25 (for example, altitude). Pay attention that leakage current, EMI, inrush current will increase when using multiple devices. Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
- Page 26 Do not use devices in parallel in mounting orientations other than the standard mounting orientation or in any other condition, where a reduction of the output current is required. For N+1 redundancy the ambient temperature is not allowed to exceed 40 °C (104 °F). Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
- Page 27 Figure 39 - 1+1 Redundant Configuration with Active Load Share for 5 A Dual Redundancy Module Load Current With a Dual Redundancy Module Figure 40 - N+1 Redundant Configuration for 15 A Load Current with Multiple Power Supplies and Redundancy Modules Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
- Page 28 24V, 5 A; (=100%) Temperature inside the box 38.3 °C (101 °F) 39.6 °C (103.3 °F) Temperature outside the box 26.1 °C (79 °F) 25.5 °C (78 °F) Temperature rise 12.2K (22 °F) 14.1K (25.3 °F) Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
- Page 29 Orientation A (Standard Orientation) Figure 42 - Mounting Orientation B (Upside Down) Figure 43 - Mounting Orientation C (Table-top Mounting) Figure 44 - Mounting Orientation D (Horizontal Figure 45 - Mounting Orientation E (Horizontal CCW) Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
- Page 30 Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual Notes: Rockwell Automation Publication 1606-RM100A-EN-P - July 2020...
-
Page 31: Additional Resources
Power Supply - 24V, 5 A, 120 W, Single-phase Reference Manual Additional Resources These documents contain additional information concerning related products from Rockwell Automation. Resource Description Power Supply Technical Data, publication 1606-TD002. Provides product selection, specifications, and dimensions information. Industrial Components Preventive Maintenance, Enclosures, and Contact... - Page 32 At the end of life, this equipment should be collected separately from any unsorted municipal waste. Rockwell Automation maintains current product environmental information on its website at rok.auto/pec. Allen-Bradley, expanding human possibility, FactoryTalk, and Rockwell Automation are trademarks of Rockwell Automation, Inc. EtherNet/IP is a trademark of ODVA, Inc.
