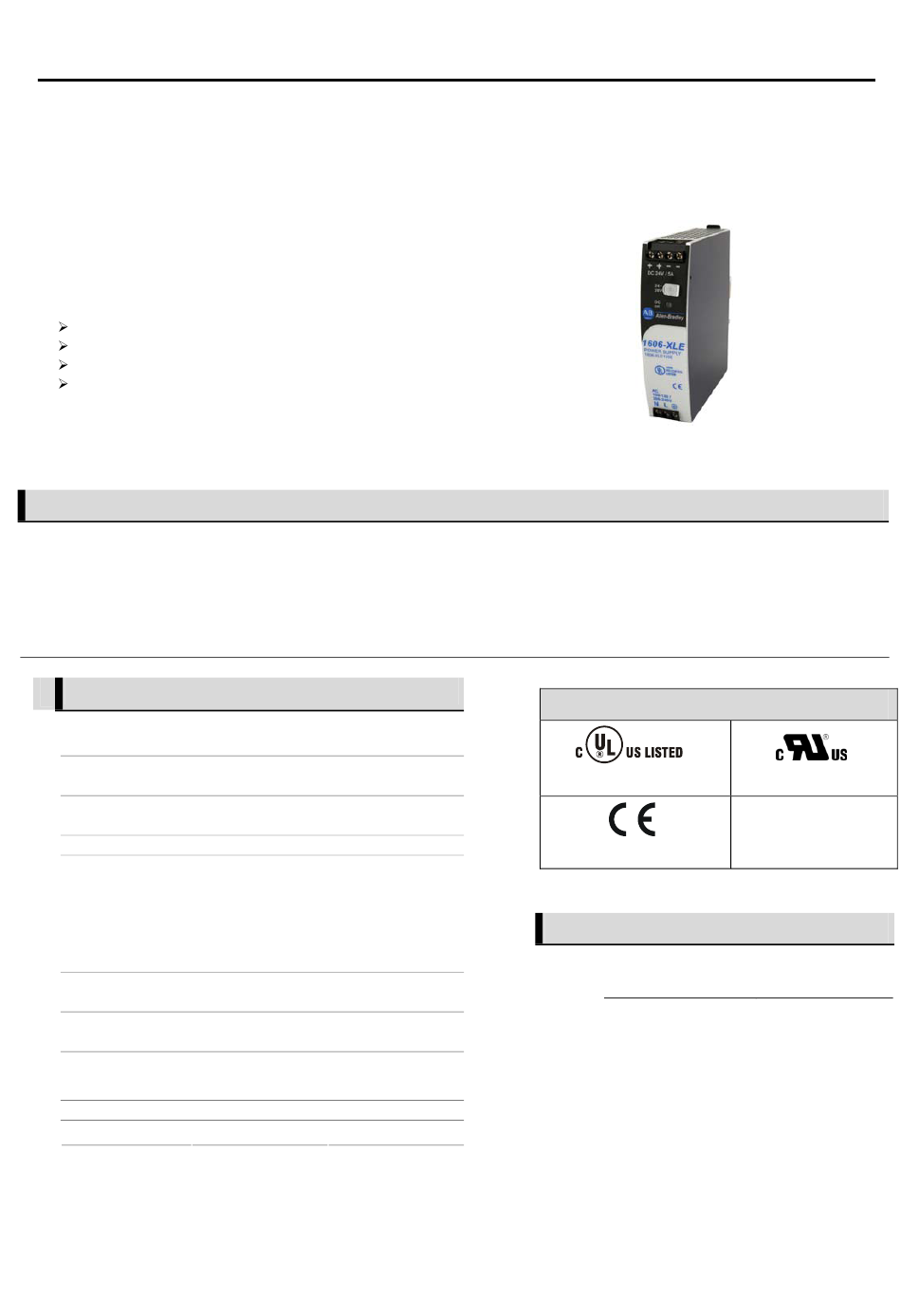

ENERAL ESCRIPTION The 1606-XLE power supplies are cost optimized power supplies without compromising quality, reliability and performance. The 1606-XLE240EP is part of the XLE power supply family, existing alongside the high featured XLS family. The 1606-XLE includes all the essential basic functions and the devices have a power reserve of 20%. This extra current may even be used continuously at temperatures up to +45°C.
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 5. AC-I NPUT nom. AC 100-120V / 200- auto-select input, see Fig. 5-1 AC input 240V AC input range 90-132Vac 100-120V range, continuous operation 180-264Vac 200-240V range, continuous operation 85-90Vac Short term or with output derating 264-300Vac <...
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 6. I NPUT NRUSH URRENT An active inrush limitation circuitry limits the input inrush current after turn-on of the input voltage. The charging current into EMI suppression capacitors is disregarded in the first milliseconds after switch-on.
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 8. O UTPUT Output voltage nom. Adjustment range min. 24-28V guaranteed max. at clockwise end position of potentiometer Factory setting ±0.2%, at full load, cold unit 24.1V Line regulation max. 70mV 90 to 132Vac or 180 to 264Vac Load regulation max.
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 12. P RODUCT ABEL Fig. 12-1 Front side Output Terminals Output voltage potentiometer Screw terminals Open the flap to tune the output voltage. Factory set: 24.1V Positive output Negative (return) output Dual pins per pole DC-on lamp (green) On when the voltage on the output terminals is >...
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 14. EMC The CE mark is in conformance with EMC guideline 89/336/EEC and 93/68/EEC and the low-voltage directive (LVD) 73/23/EWG. EMC Immunity EN 61000-6-2, EN 61000-6-1 Generic standards Electrostatic discharge EN 61000-4-2...
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 15. E NVIRONMENT Operational temperature -25°C to +70°C (-13°F to 158°F) reduce output power according Fig. 15-1 Output de-rating 6W/°C 60-70°C (140°F to 158°F) Storage temperature -40 to +85°C (-40°F to 185°F)
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 17. S AFETY Input / output separation SELV IEC/EN 60950-1 PELV EN 60204-1, EN 50178, IEC 60364-4-41 double or reinforced insulation Class of protection PE (Protective Earth) connection required Isolation resistance > 5MOhm...
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 19. A PPROVALS IECEE IEC 60950-1 CB Scheme, Information Technology Equipment CB SCHEME UL 508 LISTED as Industrial Control Equipment 18WM E198865 LISTED IND. CONT. EQ. UL 60950-1 RECOGNIZED E137006 recognized for the use in U.S.A. (UL 60950-1) and Canada (C22.2 No.
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 22. P HYSICAL IMENSIONS AND EIGHT Weight 800g / 1.76lb DIN-Rail Use 35mm DIN-rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm. The DIN-rail height must be added to the depth (117mm) to calculate the total required installation depth.
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 24. A CCESSORIES 1606-XLB Wall mounting bracket This bracket is used to mount 1606 units onto a flat surface without utilizing a DIN-Rail. The two aluminum brackets and the black plastic slider of the unit have to be detached, so that the two steel brackets can be mounted.
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 25. A PPLICATION OTES 25.1. P URRENT APABILITY Solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil. The inrush current demand of the pick-up coil is several times higher than the steady state current and usually exceeds the nominal output current (including the PowerBoost) The same situation applies, when starting a capacitive load.
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 25.3. B FEEDING OADS Loads such as decelerating motors and inductors can feed voltage back to the power supply. This feature is also called return voltage immunity or resistance against Back- E.M.F. (Electro Magnetic Force).
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 25.5. I NDUCTIVE AND APACITIVE OADS The unit is designed to supply any kind of load, including unlimited capacitive and inductive loads. 25.6. S ERIES PERATION The power supply can be put in series to increase the output voltage.
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 25.9. E XTERNAL NPUT ROTECTION The unit is tested and approved for branch circuits up to 20A. External protection is only required if the supplying branch has an ampacity greater than this. In some countries local regulations might apply. Check also local codes and local requirements.
Rockwell Automation 1606-XLE240EP 24V, 10A; Single Phase Input 25.12. M OUNTING RIENTATIONS Mounting orientations other than input terminals on the bottom and output on the top require a reduction in continuous output power or a limitation in the max. allowed ambient temperature. The amount of reduction influences the lifetime expectancy of the power supply. Therefore, two different derating...
