Wi-Fi - Delphi DEA600 Owner's Manual

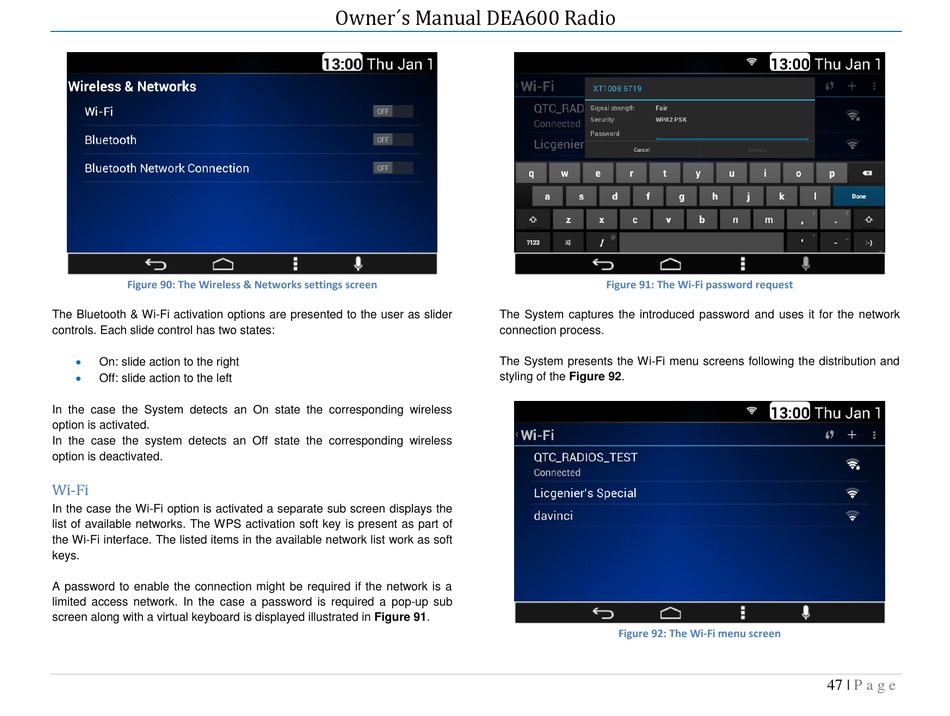

Figure 90: The Wireless & Networks settings screen
The Bluetooth & Wi-Fi activation options are presented to the user as slider
controls. Each slide control has two states:

On: slide action to the right

Off: slide action to the left
In the case the System detects an On state the corresponding wireless
option is activated.
In the case the system detects an Off state the corresponding wireless
option is deactivated.

Wi-Fi

In the case the Wi-Fi option is activated a separate sub screen displays the
list of available networks. The WPS activation soft key is present as part of
the Wi-Fi interface. The listed items in the available network list work as soft
keys.
A password to enable the connection might be required if the network is a
limited access network. In the case a password is required a pop-up sub
screen along with a virtual keyboard is displayed illustrated in Figure 91.
Owner´s Manual DEA600 Radio
The System captures the introduced password and uses it for the network
connection process.
The System presents the Wi-Fi menu screens following the distribution and
styling of the Figure 92.
Figure 91: The Wi-Fi password request
Figure 92: The Wi-Fi menu screen
47 | P a g e
