Contacts - Delphi DEA600 Owner's Manual

The Phone screen interface presents these elements (as is illustrated on
Figure 48):

Numeric Keyboard

Call Button

Search Bar

Contacts Tab

Recent Calls Tab

Favorites Tab

Add Contact Tab

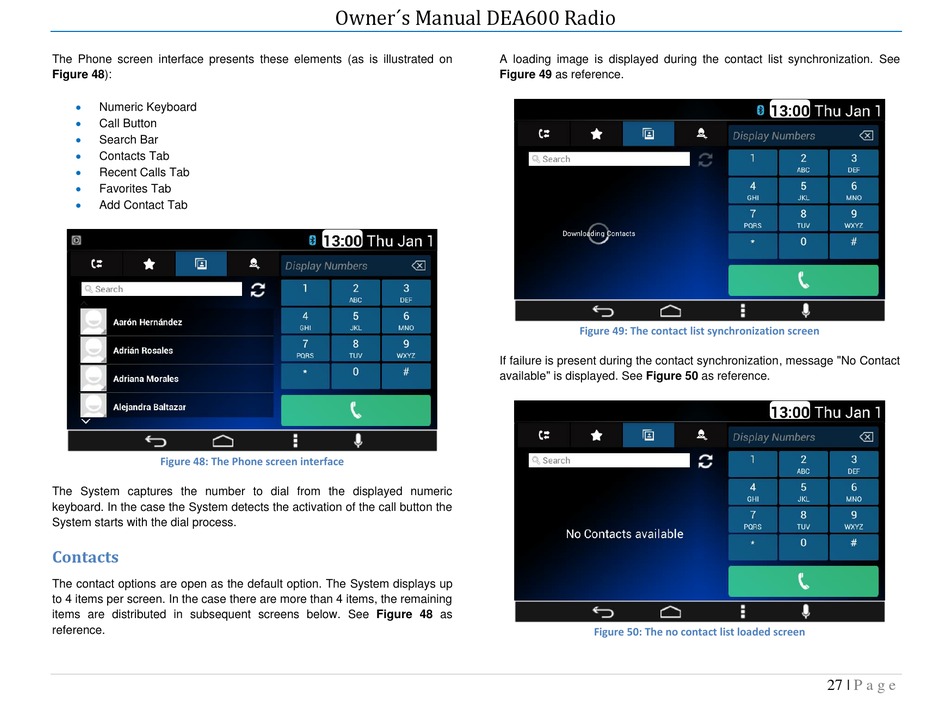

Figure 48: The Phone screen interface
The System captures the number to dial from the displayed numeric
keyboard. In the case the System detects the activation of the call button the
System starts with the dial process.

Contacts

The contact options are open as the default option. The System displays up
to 4 items per screen. In the case there are more than 4 items, the remaining
items are distributed in subsequent screens below. See Figure 48 as
reference.
Owner´s Manual DEA600 Radio
A loading image is displayed during the contact list synchronization. See
Figure 49 as reference.
If failure is present during the contact synchronization, message "No Contact
available" is displayed. See Figure 50 as reference.
Figure 49: The contact list synchronization screen
Figure 50: The no contact list loaded screen
27 | P a g e
