Delphi DEA600 Owner's Manual page 34

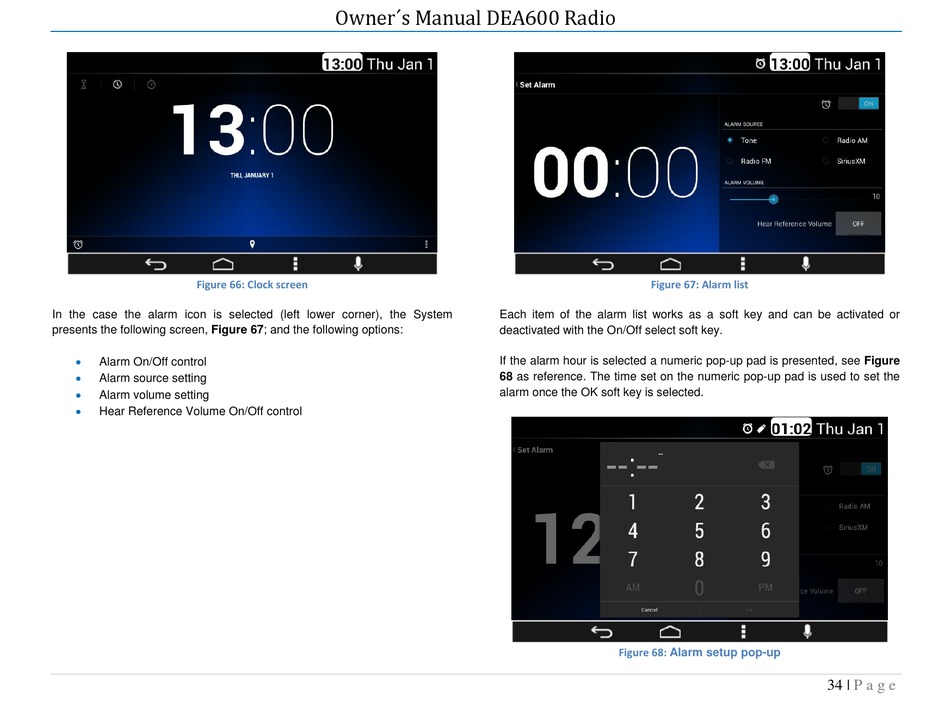

Figure 66: Clock screen
In the case the alarm icon is selected (left lower corner), the System
presents the following screen, Figure 67; and the following options:

Alarm On/Off control

Alarm source setting

Alarm volume setting

Hear Reference Volume On/Off control
Owner´s Manual DEA600 Radio
Each item of the alarm list works as a soft key and can be activated or
deactivated with the On/Off select soft key.
If the alarm hour is selected a numeric pop-up pad is presented, see Figure
68 as reference. The time set on the numeric pop-up pad is used to set the
alarm once the OK soft key is selected.
Figure 67: Alarm list
Figure 68: Alarm setup pop-up
34 | P a g e
