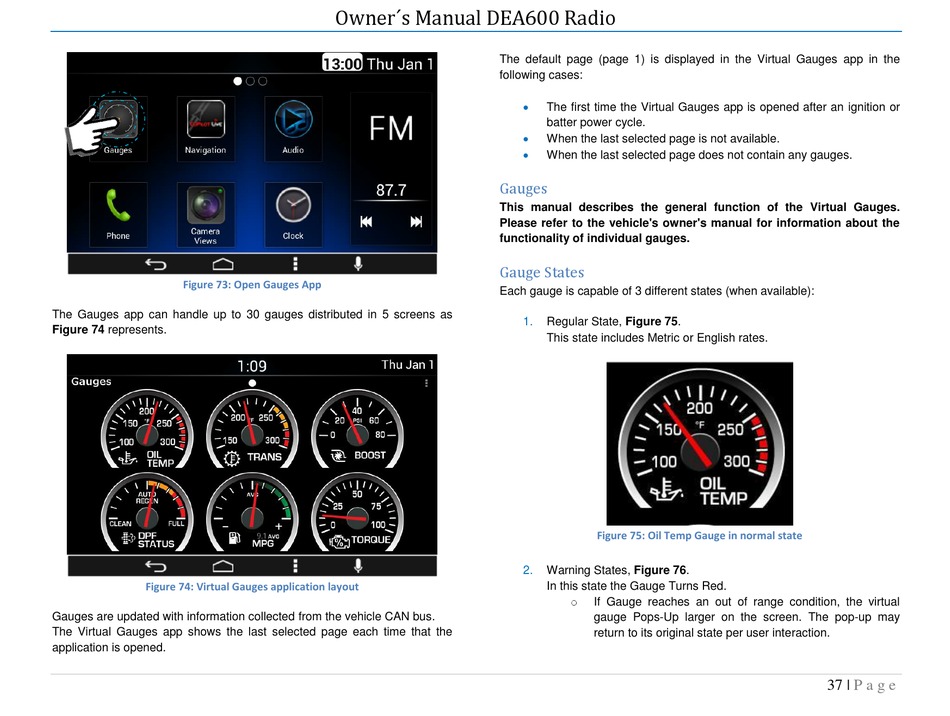

Figure 73: Open Gauges App
The Gauges app can handle up to 30 gauges distributed in 5 screens as
Figure 74 represents.
Figure 74: Virtual Gauges application layout
Gauges are updated with information collected from the vehicle CAN bus.
The Virtual Gauges app shows the last selected page each time that the
application is opened.
Owner´s Manual DEA600 Radio
The default page (page 1) is displayed in the Virtual Gauges app in the
following cases:

Gauges

This manual describes the general function of the Virtual Gauges.
Please refer to the vehicle's owner's manual for information about the
functionality of individual gauges.

Gauge States

Each gauge is capable of 3 different states (when available):

The first time the Virtual Gauges app is opened after an ignition or
batter power cycle.

When the last selected page is not available.

When the last selected page does not contain any gauges.
1. Regular State, Figure 75.
This state includes Metric or English rates.
Figure 75: Oil Temp Gauge in normal state
2. Warning States, Figure 76.
In this state the Gauge Turns Red.
o
If Gauge reaches an out of range condition, the virtual
gauge Pops-Up larger on the screen. The pop-up may
return to its original state per user interaction.
