Page 1: User Manual

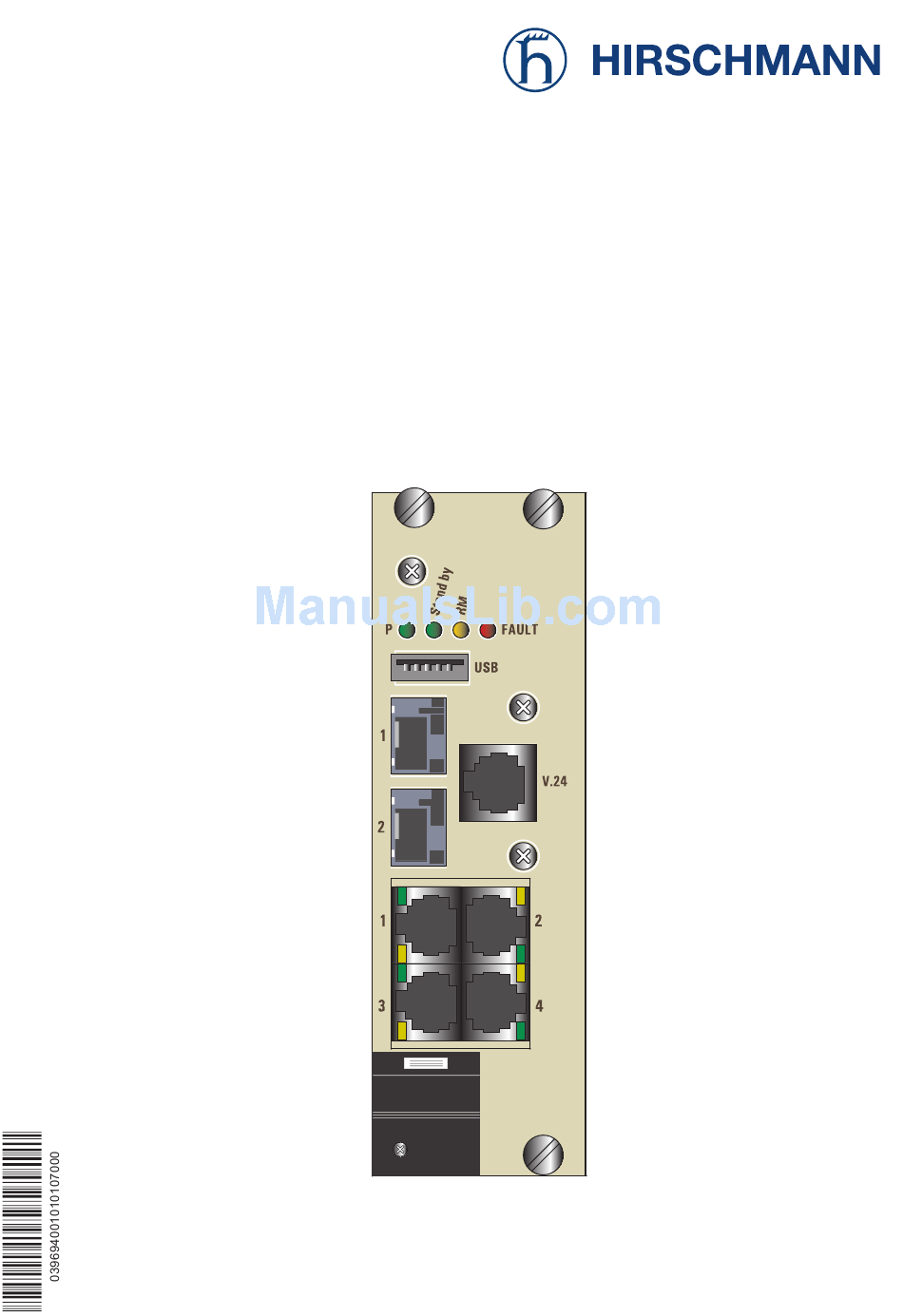

User Manual Installation Gigabit ETHERNET Compact PCI Switch CS30 CS30-0202 CS30 Technical support Release 1.0 01/07 HAC-Support@hirschmann.de... - Page 2 This publication has been created by Hirschmann Automation and Control GmbH according to the best of our knowledge. Hirschmann reserves the right to change the contents of this manual without prior notice. Hirschmann can give no guarantee in respect of the correctness or accuracy of the details in this publication.
-
Page 3: Table Of Contents
Assembly and startup procedure Device installation 2.1.1 Unpacking and checking 2.1.2 Adjusting the DIP switch settings 2.1.3 Fitting the CS30 interface card into the basic device 2.1.4 Starting the device 2.1.5 Connecting the data lines Displays Carrying out basic settings... -
Page 4: Safety Instructions
Housing (basic device) V Please pay attention to the manufacturer’s description and operating instructions of the chassis in which the CS30 interface card is to be installed. Environment The device may only be operated in the listed maximum surrounding air temperature range at the listed relative air humidity range (non-conden- sing). -
Page 5: General Safety Instructions
Light is emitted from the optical connections or from the ends of the optical fibers that are connected to them. Light Emit- ting Diode CLASS 2M, Wave length 650 nm, Power <2 mW, according to IEC/CEI 60825-1:2003-10. CS30 Release 1.0 01/07... - Page 6 31/EEC and 93/68/EEC). In accordance with the above-named EU directives, the EU conformity declaration will be at the disposal of the relevant authorities at the follo- wing address: Hirschmann Automation and Control GmbH Stuttgarter Straße 45-51 D-72654 Neckartenzlingen Germany Phone ++49 7127 14 1480 CS30 Release 1.0 01/07...
- Page 7 EMC value limits. Recycling note: After usage, this product must be disposed of properly as electronic waste in accordance with the current disposal regulations of your county / state / country. CS30 Release 1.0 01/07...
-
Page 8: About This Manual
Switch. simultaneous configuration of several Switches. configure the relevant ports to be displayed red if there is no link state. Legend The commendations used in this manual have the following meanings: Listing Work step Subheading CS30 Release 1.0 01/07... -
Page 9: Device Description
Compact PCI interface card. The interface card is hot swapa- ble. It is supplied with power via the backplane of the basic device. The CS30 devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility. - Page 10 SNMP 802.1x port authentication The addition, to the CS30 switches, the RS20/RS30 Open Rail range, the MICE range of switches, the MACH range of backbone switches, the BAT wireless transmission system, the EAGLE security system, and products for the LION control room, provides continuous communication across all levels of the company.
-
Page 11: Ports And Media
RJ45 connectors 2-pin DIP switch (on the PCB) Fig. 1: Interfaces and display elements on CS30-0202 For connecting data terminal equipments or further network segments, the CS30 has the following interfaces: Two combo ports (port 1 and 2) Fiber optic, 100/1000 Mbit/s ETHERNET, SFP slot... -
Page 12: Assembly And Startup Procedure
On delivery, the device is ready for operation. The following procedure is appropriate for assembly: Unpacking and checking Adjusting the DIP switch settings Fitting the CS30 interface card into the basic device Starting the device Connecting the data lines Device installation 2.1.1... -
Page 13: Fitting The Cs30 Interface Card Into The Basic Device
V Press the white button being integrated in the lever and V Simultaneously turn the lever by approx. 45° down V Push the CS30 interface card into the selected slot as far as it will go on the upper and lower guide rails (see figure below, step 2). -
Page 14: Starting The Device
V Switch the basic device on. By connecting the supply voltage to the basic device and switching it on, you start the operation of the inserted CS30 switch. 2.1.5 Connecting the data lines You can connect terminal devices and other segments at the ports of the device via twisted pair cables and LWL cables. - Page 15 These ports support: autonegotiation. Note: Make sure, that you conncet LH ports only to LH ports, SX ports only to SX ports and LX ports only to LX ports. V Connect the data lines according to your requirements. CS30 Release 1.0 01/07...
-
Page 16: Displays
LEDs: . LS (Link status, green LED) Meaning not lit no valid connection lit green valid connection flashes green (1 time per second) port is switched to stand-by flashes green (3 times per second) port is disabled CS30 Release 1.0 01/07... -
Page 17: Carrying Out Basic Settings
The USB socket offers an interface for the local connection of an Auto- Configuration Adapter ACA 21-USB. It is a device for saving/loading the configuration and for loading the software. Pin number Signal name - Data + Data Ground CS30 Release 1.0 01/07... -
Page 18: Disassembling The Cs30 Interface Card
You will find a detailed description of the configuration in the “Basic Configuration User Manual” on the CD-ROM. Disassembling the CS30 interface card The interface cards can be inserted into or removed from the basic device during network operation (hot swappable). - Page 19 V Press the white button being integrated in the lever and V Simultaneously turn the lever by approx. 45° down V Pull the CS30 interface card out of the housing of the basic device (see figure below, step 3). Close the unused slot in the basic device with a blank panel.
-
Page 20: Technical Data
Technical data General data Dimensions CS30-0202 40 mm x 210 mm x 131 mm W x H x D Weight CS30-0202 230 g Voltage supply Operating voltage 5 V DC via the backplane of the basic device Overload current non-changeable fuse... -
Page 21: Network Size
F/O adapter in line with IEEE 802.3-2002 clause 38 (single-mode fiber offset-launch mode conditioning patch cord) Power consumption/power output Name Power consumption Power output CS30-0202 6,0 W 20,5 Btu (IT)/h The power consumption of the SFP tTransceivers is included in this number. CS30 Release 1.0 01/07... -
Page 22: Scope Of Delivery
Scope of delivery Device Scope of delivery CS30-0202 CS30-0202 device description and operating instructions CD-ROM Order number Product name Order number CS30-0202 943 941-001 Accessories Name Order no. Manual Basics Industrial ETHERNET and TCP/IP 280 720-834 AutoConfiguration Adapter ACA 11... - Page 23 Media access control (MAC) bridges (includes IEEE 802.1p Priority and Dynamic Multicast Filtering, GARP, GMRP) IEEE 802.1 Q Tagging IEEE 802.1 Q-1998 Virtual Bridged Local Area Networks (VLAN Tagging, GVRP) IEEE 802.1 w.2001 Rapid Reconfiguration IEEE 802.3-2002 Ethernet Table 6: List of IEEE standards CS30 Release 1.0 01/07...
- Page 24 Notes CS30 Release 1.0 01/07...
-
Page 25: Further Support
Further support Technical questions and training courses In the event of technical queries, please talk to the Hirschmann contract partner responsible for looking after your account or directly to the Hirschmann office. You can find the addresses of our contract partners on the Internet: http://www.hirschmann-ac.com...
