Description and operating instructions
i Rail Switch 2
RS2-TX
i
1
2
P
FAULT
1
3
5
7
DA/STAT
2
4
6
8
0 1
LA1
LA2
LA3
LA4
LA5
LA6
LA7
LA8
1
2
3
4
5
6
7
8
RS2-TX
Bestell-Nr.
943 686-003

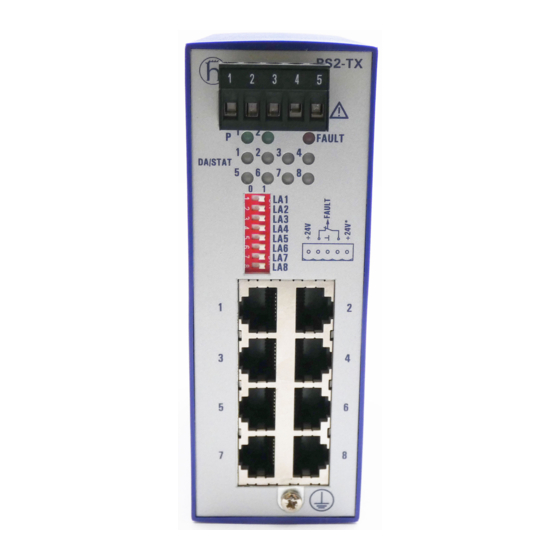

The Rail Switch RS2 has been especially
designed for use in industrial environments.
It supports ETHERNET 10 MBit/s and Fast
ETHERNET 100 MBit/s.
The Rail Switch modules support switched
ETHERNET networks in accordance with
IEEE standard 802.3 or 802.3u using copper
technology. The switch modules are plug-
ged onto the standard bar.
The RS2-TX modules have eight 10/100
MBit/s twisted pair ports (RJ45 connectors).
It is possible to connect up to eight data ter-
minal equipments or other network seg-
ments to the 10/100 Mbit/s ports using twi-
sted pair cabling. The ports support auto
negotiation, autopolarity and autocrossing.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hirschmann 943 686-003
Summary of Contents for Hirschmann 943 686-003

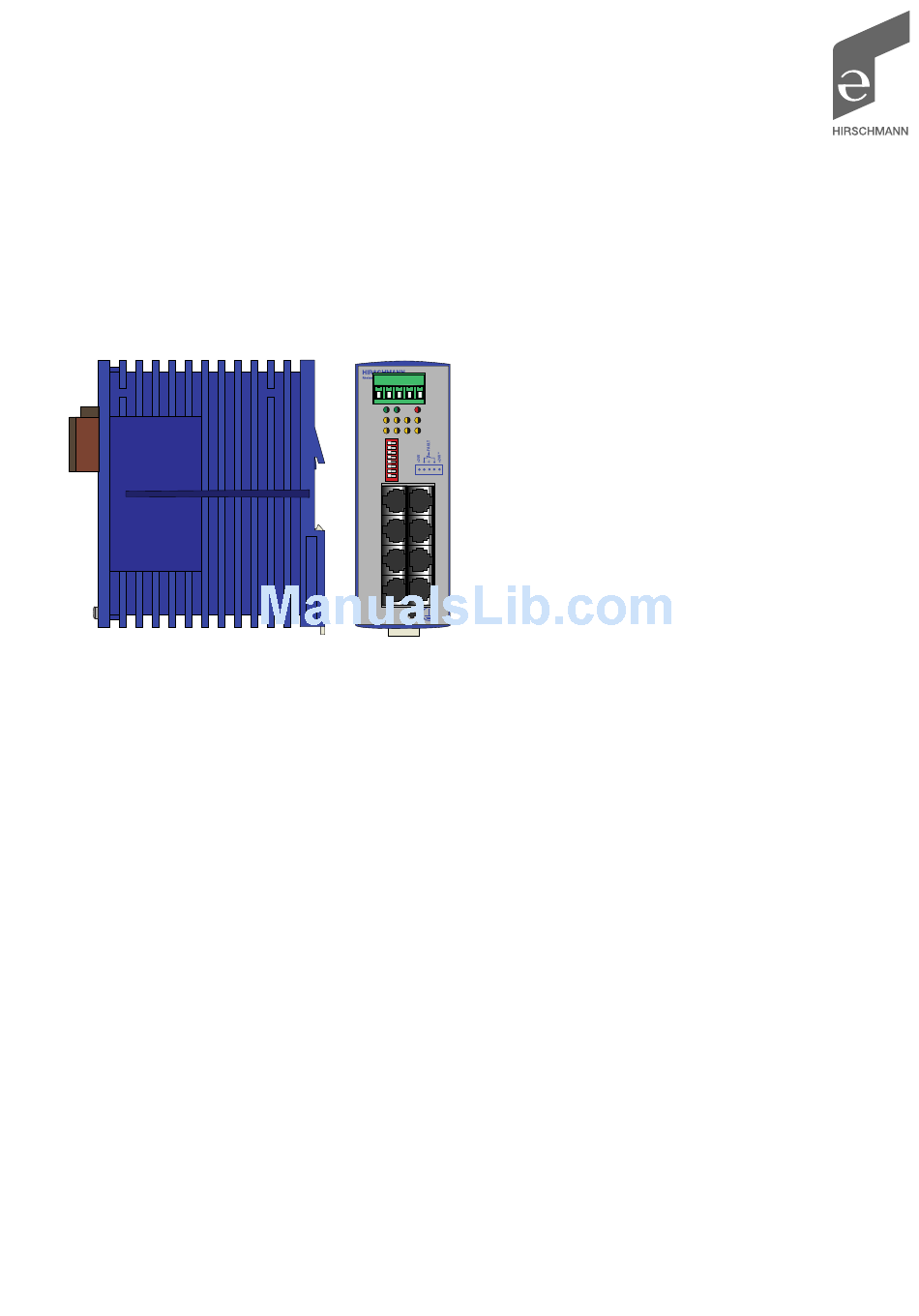

- Page 1 Description and operating instructions RS2-TX i Rail Switch 2 Bestell-Nr. 943 686-003 The Rail Switch RS2 has been especially RS2-TX designed for use in industrial environments. It supports ETHERNET 10 MBit/s and Fast ETHERNET 100 MBit/s. FAULT DA/STAT The Rail Switch modules support switched ETHERNET networks in accordance with IEEE standard 802.3 or 802.3u using copper...
- Page 2 Copyright ted, stored, installed and assembled regulations. © Hirschmann Electronics GmbH & Co. KG 2001 properly and correctly. Furthermore, All Rights Reserved it must be operated and serviced Warning! carefully.
-
Page 3: General Safety Instructions
Adhere strictly to the safety requirements authorities in accordance with the relating to voltages applied to the device as above-mentioned EU directives at: described in the operating instructions! Hirschmann Electronics GmbH & Co. KG Warning! Automation and Network Solutions Failure to observe the information Stuttgarter Straße 45-51... - Page 4 1. Functional description RS2-TX 5-pin terminal The 10/100BASE-T(X) ports of an RS2-TX block represent a terminal connection for the FAULT connected LAN segment. You can connect DA/STAT LED display single devices or complete network seg- elements ments. 8-pin DIP switch 1.1 FRAME SWITCHING FUNCTIONS Store and Forward All data received by the RS2-TX from the...
-
Page 5: Unpacking & Checking
In the event of technical queries, please talk to the Hirschmann contract partner respon- sible for looking after your account or direc- tly to the Hirschmann office. You can find the addresses of our contract partners – on the Internet (http://www.hirschmann.de). -
Page 6: Technical Data
LA1 to LA8 – suppress message about the link statuses Scope of delivery Rail Switch RS2-TX incl. terminal block for supply voltage description and operating instructions Order number Rail Switch RS2-TX 943 686-003 Accessories ETHERNET manual 943 320-011 Manual Basics i ETHERNET and TCP/IP 280 720-834... - Page 7 Notizen / Notes...
