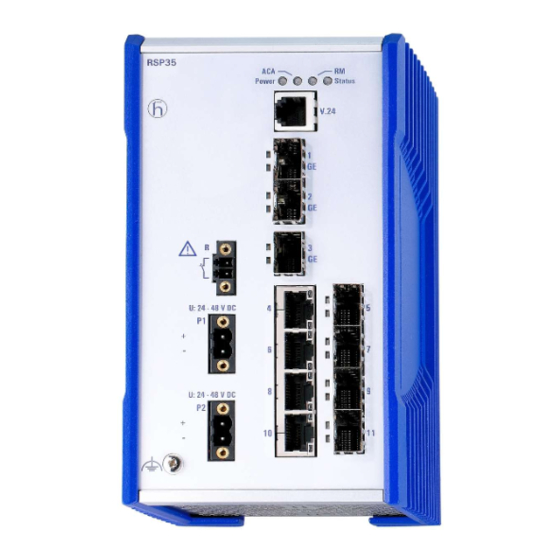

Hirschmann RSPL 20 User Manual

Industrial ethernet rail switch power lite
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
Installation
Industrial Ethernet Rail Switch Power Lite
RSPL 20/30
Installation RSPL 20/30
Technical support
Release 04 02/2013
https://hirschmann-support.belden.eu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSPL 20 and is the answer not in the manual?

Questions and answers

Related Manuals for Hirschmann RSPL 20

Summary of Contents for Hirschmann RSPL 20

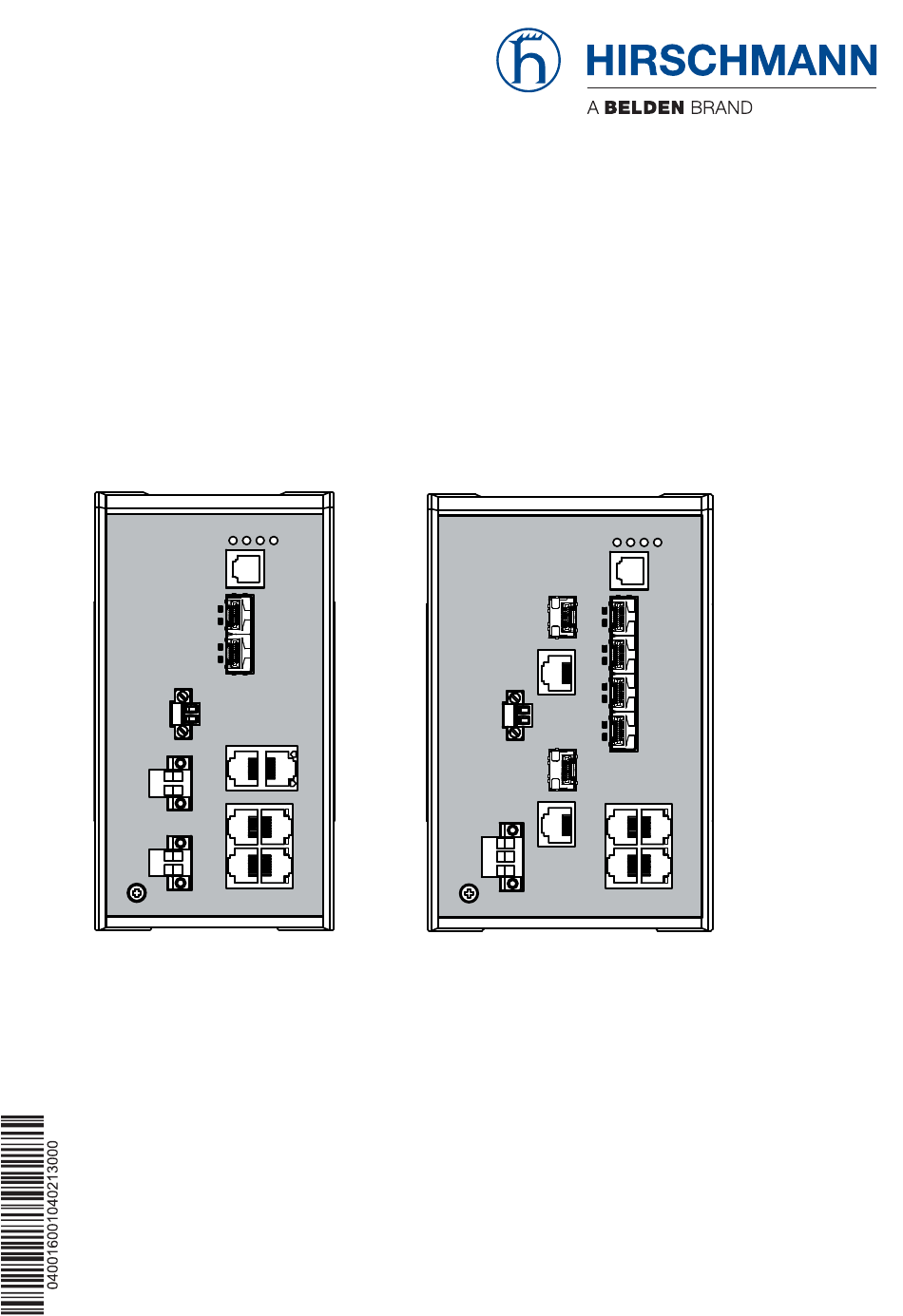

  • Page 1 User Manual Installation Industrial Ethernet Rail Switch Power Lite RSPL 20/30 Installation RSPL 20/30 Technical support Release 04 02/2013 https://hirschmann-support.belden.eu.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Printed in Germany Hirschmann Automation and Control GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    Signal contact Device installation Unpacking and checking Installing the SD card (optional) Installing the device and grounding 2.3.1 Mounting on the DIN rail 2.3.2 Grounding Installing the SFP transceivers (optional) Connecting the terminal blocks Installation RSPL 20/30 Release 04 02/2013...
  • Page 4 2.7.2 100 Mbit/s F/O connection 2.7.3 10/100 Mbit/s twisted pair connection Insert data in label area Basic set-up Monitoring the ambient air temperature Maintenance and service Disassembly Disassembling the device Removing the SFP transceivers Technical data Further Support Installation RSPL 20/30 Release 04 02/2013...

  • Page 5: Safety Instructions

    Safety instructions Certified usage  Only use the device for application cases that are described in the Hirschmann product information, including this manual. Only operate the device according to the technical specifications. Supply voltage  Note: The supply voltage is only connected with the chassis via protective elements.
  • Page 6 The power supply lines are made up of copper wire (75 °C). WARNING ELECTRIC SHOCK Only start connecting the supply voltage if all the above mentioned requirements are fulfilled. Failure to follow these instructions can result in death, serious injury, or equipment damage. Installation RSPL 20/30 Release 04 02/2013...
  • Page 7  The shielded ground wire of the twisted pairs lines is connected to the front panel as a conductor.  Beware of possible short circuits when connecting a cable section with conductive shield braiding. Installation RSPL 20/30 Release 04 02/2013...
  • Page 8 Failure to follow these instructions can result in death, serious injury, or equipment damage. Only technicians authorized by the manufacturer are permitted to open the housing. Installation RSPL 20/30 Release 04 02/2013...
  • Page 9 General safety instructions  This device is operated by electricity. You must follow precisely the prescribed safety requirements for the voltage connections in this document. “Supply voltage” on page Installation RSPL 20/30 Release 04 02/2013...
  • Page 10 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Installation RSPL 20/30 Release 04 02/2013...
  • Page 11 Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany Tel.: +49 1805 141538 The product can be used in the industrial sector.  Interference immunity: EN 61000-6-2  Emitted interference: EN 55022  Reliability: EN 60950-1 You will find more information on norms and standards here: “Technical data”...

  • Page 12: About This Manual

    Event handling  Client/server structure  Browser interface  ActiveX control for SCADA integration  SNMP/OPC gateway. The symbols used in this manual have the following meanings:  Listing Work step   Subheading Installation RSPL 20/30 Release 04 02/2013...

  • Page 13: Device Description

     Voltage range  Certifications The RSPL 20/30 devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also provide long-term reliability and flexibility.

  • Page 14: Device Name And Product Code

    The Hirschmann network components help you ensure continuous communication across all levels of the company. Device name and product code The device name corresponds to the product code. The product code is made up of characteristics with defined positions. The characteristic values stand for specific product properties.
  • Page 15 23 ... 24 Customization Hirschmann Standard Table 1: Device name and product code a. Only for twisted pair connections b. Only for twisted pair connections c. Certificates and declarations in brackets are being prepared. Installation RSPL 20/30 Release 04 02/2013...
  • Page 16 Figure 1: Example of a device name: RSPL20-08002Z6TT-SCCZ9HS Installation RSPL 20/30 Release 04 02/2013...

  • Page 17: Combination Options

    – 08 YT; ZT – S; T; E CC; M9 Z9; Y9; X9; V9; VY; VT; T9; TY Table 2: Combination options of the RSPL 20/30 device variants a. Only for twisted pair connections b. Only for twisted pair connections...

  • Page 18: Device Views

    2-pin terminal block device variant  Operating voltage 1 voltage input of the type:  3-pin terminal block Connection for the signal contact Table 3: Front view: left: Device variants RSPL20..2Z6YT..CC..right: Device variants RSPL20..2Z6TT..M9..Installation RSPL 20/30 Release 04 02/2013...
  • Page 19 2-pin terminal block device variant Operating voltage  1 voltage input  of the type: 3-pin terminal block Connection for the signal contact Table 4: Front view: left: Device variants RSPL30..2O7YT..CC..right: Device variants RSPL30..2O7ZT..M9..Installation RSPL 20/30 Release 04 02/2013...

  • Page 20: Rear View

    A 3-pin terminal block is available to supply the device. You will find more information on page 1.5.2 Operating voltage type CC For the redundant supply of the device, two 2-pin terminal blocks are available. You will find more information on page Installation RSPL 20/30 Release 04 02/2013...

  • Page 21: Ethernet Ports

    Function BI_DB+ BI_DB− BI_DA+ BI_DD+ BI_DD− BI_DA− BI_DC+ BI_DC− Table 5: Pin assignment of a 10/100/1000 Mbit/s TP interface in MDI-X mode, RJ45 socket 100/1000 Mbit/s F/O connection  These ports are SFP slots. Installation RSPL 20/30 Release 04 02/2013...

  • Page 22: 10/100 Mbit/S Twisted Pair Connection

    100 MBit/s F/O ports enable the connection of terminal devices or independent network segments in compliance with the IEEE 802.3 100BASE-FX standard. These ports support:  100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode Default setting: Full duplex Installation RSPL 20/30 Release 04 02/2013...

  • Page 23: Display Elements

    The storage medium ACA is not inserted. ACA31 Green Lights up The storage medium ACA is inserted. Flashes 3 The device allows read and write access. times a period Yellow Lights up The storage medium ACA is out of order. Installation RSPL 20/30 Release 04 02/2013...

  • Page 24: Port State

    9,600 Baud Data 8 bit Stopbit 1 bit Handshake Parity none The socket housing is electrically connected to the front panel of the device. The V.24 interface is electrically insulated from the supply voltage. Installation RSPL 20/30 Release 04 02/2013...

  • Page 25: Sd Card Interface

    Data line (bit 1) DAT2 I/O/PP Data line (bit 2) Table 7: Pin connection of SD card S - voltage supply I - input O - output, uses push-pull driver PP - I/O, uses push-pull driver Installation RSPL 20/30 Release 04 02/2013...

  • Page 26: Signal Contact

    The management setting specifies which events switch a contact. You can also use the management to switch the signal contact manually and thus control external devices. Installation RSPL 20/30 Release 04 02/2013...

  • Page 27: Device Installation

     Deactivate the write protection on the SD card.  Push the SD card into the slot with the serration facing downwards.  Tighten the knurled screw to ensure that the SD card does not fall out. Installation RSPL 20/30 Release 04 02/2013...

  • Page 28: Installing The Device And Grounding

    Failure to follow these instructions can result in death, serious injury, or equipment damage. 2.3.1 Mounting on the DIN rail Figure 4: Mounting on the DIN rail Note: Make sure there is at least 10 cm of space above and below the device. Installation RSPL 20/30 Release 04 02/2013...

  • Page 29: Grounding

     Before attaching an SFP transceiver, first remove the protective cap over the socket.  Push the SFP transceiver with the lock closed into the socket until you hear it latch in. Note: Only use Hirschmann SFP transceivers (see page 49 “Accessories”). Installation RSPL 20/30...

  • Page 30: Connecting The Terminal Blocks

    −/N Neutral conductor Voltage range AC incl. Protective conductor maximum tolerances 88 V ... 265 V, 47 Hz ... 63 Hz Table 8: Operating voltage type M9: Type and size of the supply voltage, connections Installation RSPL 20/30 Release 04 02/2013...
  • Page 31 − Minus terminal of the supply Voltage range DC incl. voltage maximum tolerances 18 V ... 60 V Class 2 Table 9: Operating voltage type CC: Type and size of the supply voltage, connections Installation RSPL 20/30 Release 04 02/2013...
  • Page 32 The connected voltage is limited by a current limitation device or a fuse. Observe the electrical threshold values for signal contact (see on page 40 “General technical data”).  Connect the signal contact lines to the terminal block. Installation RSPL 20/30 Release 04 02/2013...
  • Page 33 You have the option to alternatively connect F/O (via SFP transceivers) or twisted pairs to a combo port. When you are using an SFP transceiver, you get an optical interface. You thus deactivate the corresponding TP interface. Installation RSPL 20/30 Release 04 02/2013...

  • Page 34: Insert Data In Label Area

     Install the data lines according to your requirements. Insert data in label area The information field for the IP address on the front of the device helps you to structure your network installation clearly. Installation RSPL 20/30 Release 04 02/2013...

  • Page 35: Basic Set-Up

    (read/write)  V.24 data rate: 9,600 Baud  Ethernet ports: link status is not evaluated (signal contact)  Optical ports: Full duplex TP ports: Autonegotiation  RSTP (Rapid Spanning Tree) activated Installation RSPL 20/30 Release 04 02/2013...

  • Page 36: Monitoring The Ambient Air Temperature

    It is higher than the ambient air temperature. The maximum internal temperature of the device named in the technical data is a guideline that indicates to you that the maximum ambient air temperature has possibly been exceeded. Installation RSPL 20/30 Release 04 02/2013...

  • Page 37: Maintenance And Service

    Maintenance and service  When designing this device, Hirschmann was largely able to forego using parts that are subject to waer and tear. The parts subject to wear are designed to last longer than the lifetime of the product when it is operated properly.

  • Page 38: Disassembly

    Note: For safety reasons, make sure you disconnect the grounding from all connections last.  To remove the device from the DIN rail, press the device downwards and pull it out from under the DIN rail. Figure 8: Removal from the DIN rail Installation RSPL 20/30 Release 04 02/2013...

  • Page 39: Removing The Sfp Transceivers

    Removing the SFP transceivers  Pull the SFP transceiver out of the socket by means of the opened lock. Figure 9: Deinstalling an SFP transceiver Installation RSPL 20/30 Release 04 02/2013...

  • Page 40: Technical Data

    (standard): 83 °C Devices with operating temperature type E and type T (extended): 93 °C Humidity 5 % ... 95 % (non-condensing) Air pressure minimum 700 hPa (+3000 m) maximum 1060 hPa (−400 m) Installation RSPL 20/30 Release 04 02/2013...
  • Page 41 Degree of protection IP 20 a. Hirschmann recommends to use SFP transceivers with the “EEC” extension. b. Only use SFP transceivers with the “EEC” extension, otherwise the standard temperature range applies. c. Only use SFP transceivers with the “EEC” extension, otherwise the standard temperature range applies.
  • Page 42 Dimension drawings  114,7 6,55 4.52 inch 0.26 2.76 89,9 3.54 Figure 10: Dimensions of device variants RSPL20-... 114,7 6,55 inch 4.26 4.52 0.26 2.76 Figure 11: Dimensions of device variants RSPL30-... Installation RSPL 20/30 Release 04 02/2013...
  • Page 43 EMC and immunity  Stability Standard Railway Sub-station applications applications applications (trackside) IEC 60068-2-6, test Fc Vibration — — 2 Hz ... 9 Hz with 3 mm amplitude 5 Hz ... 8.4 Hz with 5 Hz ... 8.4 Hz with 5 Hz ...
  • Page 44 EMC emitted interference Standard Railway Sub-station applications applications applications (trackside) Emitted interference EN 55022 Class A Class A Class A GL Guidelines — — — FCC 47 CFR Part 15 Class A Class A Class A EN 61000-6-4 Fulfilled Fulfilled Fulfilled Conducted interference EN 55022...
  • Page 45 EMC interference Standard Railway Sub-station immunity applications applications applications (trackside) Electrostatic discharge EN 61000-4-2 Contact discharge ± 4 kV ± 6 kV ± 8 kV IEEE C37.90.3 EN 61000-4-2 Air discharge ± 8 kV ± 8 kV ± 15 kV IEEE C37.90.3 Electromagnetic field EN 61000-4-3...
  • Page 46 EMC interference Standard Railway Sub-station immunity applications applications applications (trackside) Damped vibration - AC/DC supply connection EN 61000-4-12 line/ground — — 2.5 kV IEEE C37.90.1 EN 61000-4-12 line/line — — 1 kV IEEE C37.90.1 Damped vibration - data line EN 61000-4-12 line/ground —...
  • Page 47 LH 1590 nm 1490 nm 9/125 µm 5-24 dB 23-80 km 0.25 19 ps/(nm·km) LH/LC dB/km Table 11: F/O port (bidirectional Gigabit Ethernet SFP Transceiver) a. including 3 dB system reserve when compliance with the fiber data is observed Installation RSPL 20/30 Release 04 02/2013...
  • Page 48 MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul TP port Length of a twisted pair segment max. 100 m/328 ft (for cat5e cable) Table 13: TP port 10BASE-T / 100BASE-TX / 1000BASE-T Installation RSPL 20/30 Release 04 02/2013...
  • Page 49 Network management software Industrial HiVision 943 156-xxx Gigabit Ethernet SFP transceiver Order number M-SFP-SX/LC 943 014-001 M-SFP-SX/LC EEC 943 896-001 M-SFP-MX/LC 942 035-001 M-SFP-LX/LC 943 015-001 M-SFP-LX/LC EEC 943 897-001 M-SFP-LX+/LC 942 023-001 M-SFP-LX+/ LC EEC 942 024-001 Installation RSPL 20/30 Release 04 02/2013...
  • Page 50 IEEE 802.1 Q Virtual Bridged Local Area Networks (VLAN Tagging, GVRP) IEEE 802.3 Ethernet Table 14: List of norms and standards The device generally fulfills the norms and standards named in their current versions. Installation RSPL 20/30 Release 04 02/2013...
  • Page 51 The device has a certification based on a specific standard only if the certification indicator appears on the housing. Installation RSPL 20/30 Release 04 02/2013...

  • Page 52: A Further Support

    Further Support Technical Questions  For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com Contact our support at https://hirschmann-support.belden.eu.com You can contact us in the EMEA region at ...
  • Page 53 Installation RSPL 20/30 Release 04 02/2013...
