Summary of Contents for Hirschmann SPIDER PL

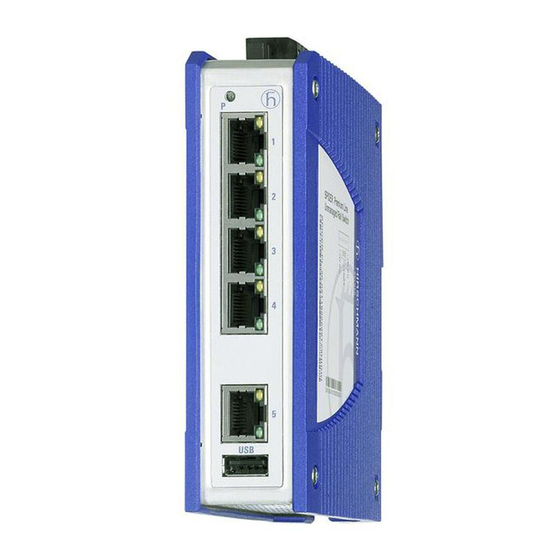

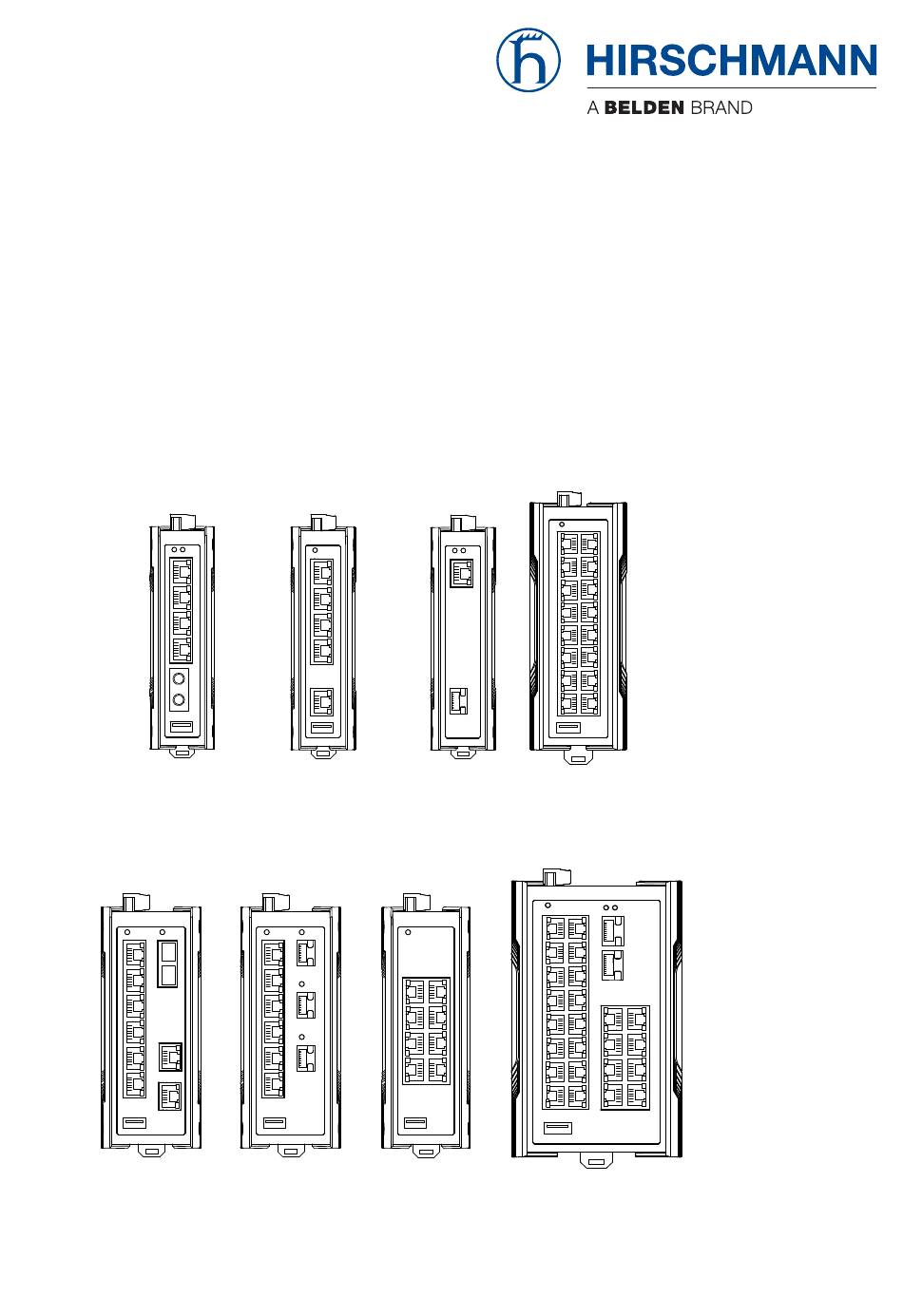

- Page 1 User Manual Installation Industrial Ethernet Rail Switch SPIDER Premium Line Installation SPIDER PL Technical support Release 08 09/2018 https://hirschmann-support.belden.com...
- Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
4.2.2 Mounting on a flat surface Grounding the device Installing an SFP transceiver (optional) Connecting the terminal block Operating the device 4.6.1 Installing terminal blocks, switching on the supply voltage 4.6.2 Connecting data cables Installation SPIDER PL Release 08 09/2018... - Page 4 Technical data General technical data Dimension drawings Stability Electromagnetic compatibility (EMC) Network range Power consumption/power output Scope of delivery, order numbers and accessories Underlying technical standards Open Source Software used in the product Further support Installation SPIDER PL Release 08 09/2018...
-
Page 5: Safety Instructions
Hirschmann for inspection. Certified usage Use the device solely for the application cases described in the Hirschmann product information, including this manual. Operate the device solely according to the technical specifications. See “Technical data” on page 45. Installation site requirements ... - Page 6 See “General technical data” on page 45. Table 2: Requirements for connecting the signal contact Requirements for connecting the supply voltage Before connecting the supply voltage, always verify that the requirements listed are complied with. Installation SPIDER PL Release 08 09/2018...
- Page 7 The power supply cable is suitable for the voltage, the current and the physical load. Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 up to AWG18). The following requirements apply alternatively:...
- Page 8 32:(5 +$6 %((1 6:,7&+(' 2)) 25 7+( $5($ ,6 .12:1 72 %( 121+$=$5'286 &RQWURO 'UDZLQJ 63,'(5 ,,, 3/ 6HULHV IRU 8VH LQ +D]DUGRXV /RFDWLRQV &ODVV , 'LYLVLRQ *URXSV $ % & ' 5HY 'RFXPHQW 1R '15 3DJH Installation SPIDER PL Release 08 09/2018...
- Page 9 6XLWDELOLW\ IRU LQVWDOODWLRQ LQ SDUWLFXODU DSSOLFDWLRQV LV DW WKH GLVFUHWLRQ RI WKH $XWKRULW\ +DYLQJ -XULVGLFWLRQ $+- &RQWURO 'UDZLQJ 63,'(5 ,,, 3/ 6HULHV IRU 8VH LQ +D]DUGRXV /RFDWLRQV &ODVV , 'LYLVLRQ *URXSV $ % & ' 5HY 'RFXPHQW 1R '15 3DJH Installation SPIDER PL Release 08 09/2018...
- Page 10 ATEX directive 2014/34/EU – specific regulations for safe operation Relevant for SPIDER PL devices labeled with an ATEX certificate number when operating in explosive gas atmospheres according to ATEX Directive 2014/34/EU, the following applies: Make sure that the device has the following label: DEKRA 16ATEX0108X ...
- Page 11 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany www.hirschmann.com The device can be used in the industrial sector.
- Page 12 Recycling note After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country. Installation SPIDER PL Release 08 09/2018...
-
Page 13: About This Manual
Documentation mentioned in the "Installation" user manual that is not supplied with your device in print can be found as PDF download on the Internet at the Hirschmann product pages (www.hirschmann.com). Installation SPIDER PL Release 08 09/2018... -
Page 14: Key
The symbols used in this manual have the following meanings: Listing Work step Subheading Installation SPIDER PL Release 08 09/2018... -
Page 15: Description
Description General device description The SPIDER PL devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility. The devices allow you to set up switched industrial Ethernet networks that conform to the IEEE 802.3 standard. -
Page 16: Device Name And Product Code
SFP slot for 1000 Mbit/s connections SFP slot for 100 Mbit/s F/O connections without 22 ... 23 Optical fiber port 3 SFP slot for 100 Mbit/s F/O connections without Table 4: Device name and product code Installation SPIDER PL Release 08 09/2018... - Page 17 See “General technical data” on page 45. Table 4: Device name and product code a. For the device variant SPIDER PL-20-06T1Z6Z6Z6..., the maximum permitted ambient air temperature has to be reduced to +140 °F (+60 °C). Installation SPIDER PL Release 08 09/2018...
-
Page 18: Device View
Front view SPIDER PL-40-08T1... SPIDER PL-40-05T1... SPIDER PL-40-01T1... Front view using example of the device variants SPIDER PL-40... SPIDER PL 40-08T1... LED display elements for device status 6-pin, pluggable terminal block for power supply and signal contact 3 ... 6 4 × RJ45 socket for 10/100/1000 Mbit/s twisted Pair connections... - Page 19 15 16 SPIDER PL-20-16T1... SPIDER PL-20-24T1... SPIDER PL-30-24T1... Front view using example of the device variants SPIDER PL-20... and SPIDER PL-30... SPIDER PL-20-08T1... (depending on the device variant) LED display elements for device status 6-pin, pluggable terminal block for power supply and signal contact...
-
Page 20: Power Supply
Power supply via a 6-pin terminal block A 6-pin terminal block is available for the power supply to the device. You will find more information here: See “Installing terminal blocks, switching on the supply voltage” on page 33. Installation SPIDER PL Release 08 09/2018... -
Page 21: Ethernet Ports
100 Mbit/s half duplex, 100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver 100 Mbit/s F/O port The 100 Mbit/s F/O port allows you to connect network components according to the IEEE 802.3 100BASE-FX standard. Installation SPIDER PL Release 08 09/2018... -
Page 22: Pin Assignments
1000 Mbit/s MDI mode BI_DA+ TX− BI_DA− BI_DB+ — BI_DC+ — BI_DC− RX− BI_DB− — BI_DD+ — BI_DD− MDI-X mode BI_DB+ RX− BI_DB− BI_DA+ — BI_DD+ — BI_DD− TX− BI_DA− — BI_DC+ — BI_DC− Installation SPIDER PL Release 08 09/2018... -
Page 23: Display Elements
Supply voltage is too low yellow lights up Device variants with redundant power supply: Supply voltage 1 or 2 is on green lights up Device variants with redundant power supply: Supply voltage 1 and 2 is on Installation SPIDER PL Release 08 09/2018... -
Page 24: Port Status
Device detects an invalid or missing link green lights up Device detects a valid link green flashing Device is transmitting and/or receiving data yellow/ flashing alternately Updating configuration using the green USB interface Installation SPIDER PL Release 08 09/2018... -
Page 25: Configuration Interface
Supports the USB master mode Supports USB 2.0 Supplies current of max. 500 mA Voltage not potential-separated Function 1 2 3 4 VCC (VBus) - Data + Data Ground (GND) Installation SPIDER PL Release 08 09/2018... -
Page 26: Signal Contact
The link state can be masked for each port using the configuration. In the delivery state, link monitoring is inactive. Figure Function + 24 V DC FAULT +24 V +24 V FAULT + 24 V DC Installation SPIDER PL Release 08 09/2018... -
Page 27: Installation
Configuration (optional) Checking the package contents Proceed as follows: Check whether the package includes all items named in the section “Scope of delivery” on page Check the individual parts for transport damage. Installation SPIDER PL Release 08 09/2018... -
Page 28: Mounting The Device
Slide the upper snap-in guide of the device into the DIN rail. Use a screwdriver to pull the rail lock slide downwards. Snap in the device by releasing the rail lock slide. Installation SPIDER PL Release 08 09/2018... - Page 29 Device variants SPIDER PL-20-16T1... , SPIDER PL-20- 24T1... , SPIDER PL-30-24T1... The device is for mounting on a 35 mm DIN rail in accordance with DIN EN 60715. Proceed as follows: Slide the upper snap-in guide of the device into the DIN rail.
-
Page 30: Mounting On A Flat Surface
Mount the device on the wall mounting plate. Insert the upper snap-in guide of the device into the rail and press it down against the rail until it snaps into place. Two models of wall mounting plates are available. See “Accessories” on page 57. Installation SPIDER PL Release 08 09/2018... -
Page 31: Grounding The Device
Ground the device via the ground screw. The grounding screw is located on the topside as shown in the illustration. Installing an SFP transceiver (optional) Prerequisites: Exclusively use Hirschmann SFP transceivers. See “Accessories” on page 57. Figure 1: Installing SFP transceivers: Installation sequence Installation SPIDER PL... -
Page 32: Connecting The Terminal Block
You can help prevent this message by applying the supply voltage via both inputs, or by changing the configuration. Figure Function + 24 V DC FAULT +24 V +24 V FAULT + 24 V DC Installation SPIDER PL Release 08 09/2018... -
Page 33: Operating The Device
If reducing the inductive coupling is necessary, verify that the power supply cables and data cables cross at a 90° angle. Use SF/UTP cables as per ISO/IEC 11801:2002. Connect the data cables according to your requirements. Installation SPIDER PL Release 08 09/2018... -
Page 34: Configuration (Optional)
See table 6 on page 38. Prerequisite: Install the Switch Programming Tool on your computer. You can download the software for free on the Internet from the Hirschmann product pages:http://www.hirschmann.com/en/QR/Switch-Programing-Tool Proceed as follows: Connect a storage medium to your PC. - Page 36 Save the configuration file to the storage medium. Disconnect the storage medium from your PC. Transfer the configuration data to your device by following these steps: Verify that the device is switched off. Connect the storage medium to the device. ...
- Page 37 Parameter Values Default values Comment global PSU alarm PSU 1/2 enabled / PSU 1 / 2 enabled disabled Aging time Aging time in s 300 s QoS 802.1p mapping VLAN Priority 0 ... 7 VLAN Priority Traffic Class Traffic Class 0 ... 3 QoS DSCP mapping DSCP value 0 ...
- Page 38 Parameter Values Default values Comment per TP port Autonegotiation enabled / disabled enabled Speed 100 Mbit/s, 10 Mbit/s 100 Mbit/s Only if autonegotiation is disabled, no forced mode 1000 Mbit/s Duplex mode FDX / HDX Only if autonegotiation is disabled Autocrossing enabled / disabled enabled...
-
Page 39: Configuration Readout
When the text file “ShowRunningConfiguration.txt” in the root directory of the device is found, the device creates a file with the current configuration. You find this file in the root directory of the storage medium under the name “RunningConfig.txt”. Installation SPIDER PL Release 08 09/2018... -
Page 40: Monitoring The Ambient Air Temperature
The ambient air temperature is the temperature of the air at a distance of 2 in (5 cm) from the device. It depends on the installation conditions of the device, for example the distance from other devices or other objects, and the output of neighboring devices. Installation SPIDER PL Release 08 09/2018... -
Page 41: Maintenance And Service
Maintenance and service When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications. -
Page 42: Disassembly
Open the locking mechanism of the SFP transceiver (1). Pull the SFP transceiver out of the slot via the open locking mechanism (2). Close the SFP transceiver with the protection cap (3). Installation SPIDER PL Release 08 09/2018... -
Page 43: Removing The Device
To remove the device from the DIN rail, you proceed as follows: Insert a screwdriver horizontally below the casing into the locking gate. Without tilting the screwdriver, pull the locking gate down and tilt the device upwards. Installation SPIDER PL Release 08 09/2018... - Page 44 Device variants SPIDER PL-20-16T1... , SPIDER PL-20- 24T1... , SPIDER PL-30-24T1... WARNING ELECTRIC SHOCK Disconnect the grounding only after disconnecting all other cables. Failure to follow this instruction can result in death, serious injury, or equipment damage. To prepare the deinstallation, you proceed as follows: ...
-
Page 45: Technical Data
SPIDER-PL-40-05T1999999TY9HHHH 14.46 oz (410 g) SPIDER-PL-40-08T1999999TY9HHHH 14.48 oz (450 g) Power supply Configuration: Hirschmann standard (characteristic value HH) Rated voltage 12 V DC ... 24 V DC Voltage range incl. maximum tolerances 9.6 V DC ... 32 V DC Configuration: Extended voltage range (characteristic value HV) Rated voltage 12 V DC ... - Page 46 IP40 a. Temperature of the ambient air at a distance of 2 in (5 cm) from the device b. For the device variant SPIDER PL-20-06T1Z6Z6Z6..., the maximum permitted ambient air temperature has to be reduced to +140 °F (+60 °C).
-
Page 47: Dimension Drawings
Dimension drawings inch SPIDER PL-20-08T1... SPIDER PL-20-04T1... SPIDER PL-20-06T1... 6,65 114,7 4.52 0.26 0.39 0.39 inch 93,97 SPIDER PL-20-24T1... SPIDER PL-20-16T1... SPIDER PL-30-24T1... Figure 3: Dimensions of device variants SPIDER PL-20... and SPIDER PL-30... Installation SPIDER PL Release 08 09/2018... - Page 48 SPIDER PL-040-01T1... SPIDER PL-40-08T1... SPIDER PL-40-05T1... Figure 4: Dimensions of device variants SPIDER-PL-40... Installation SPIDER PL Release 08 09/2018...
-
Page 49: Stability
Stability Stability Standard Marine Railway Sub-station applications applications applications applications (trackside) IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 2 Hz ... 13.2 Hz — 2 Hz ... 9 Hz with 0.14 in. (3.5 mm) with 0.04 in (1 mm) 0.11 in (3 mm) amplitude amplitude... -
Page 50: Electromagnetic Compatibility (Emc)
Electromagnetic compatibility (EMC) EMC interference emission Standard Merchant Navy Railway Sub-station applications applications applications (trackside) Radiated emission EN 55032 Class A Class A Class A Class A DNV GL Guidelines — EMC 1 — — FCC 47 CFR Part 15 Class A Class A Class A... - Page 51 EMC interference immunity Standard Marine Railway Sub-station applications applications applications applications (trackside) Electromagnetic field EN 61000-4-3 10 V/m 10 V/m 20 V/m 10 V/m IEEE 1613 — — — 35 V/m Fast transients (burst) EN 61000-4-4 Supply connection ±2 kV ±2 kV ±2 kV ±4 kV...
-
Page 52: Network Range
Network range Note: The line lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and BLP/ dispersion). Product code Mode Wave length Fiber System Example for F/O cable Fiber attenuation BLP /Dispersion M-SFP-... attenuation length -SX/LC... 850 nm 50/125 µm 0 dB ... - Page 53 c. Using the bandwidth-length product is inappropriate for expansion calculations. d. With F/O adapter compliant with IEEE 802.3-2002 Clause 38 (single-mode fiber offset-launch mode conditioning patch cord). e. With F/O adapter compliant with IEEE 802.3-2002 Clause 38 (single-mode fiber offset-launch mode conditioning patch cord). Including 2.5 dB system reserve when compliance with the fiber data is observed.
- Page 54 Product code Mode Wave length Fiber System Example for F/O cable Fiber attenuation BLP/Dispersion M-FAST-SFP-... attenuation length -LH/LC... 1550 nm 9/125 µm 10 dB ... 29 dB 29.20 mi ... 64.62 mi 0.25 dB/km 19 ps/(nm×km) (47 km ... 104 km) -LH/LC...
-
Page 55: Power Consumption/Power Output
17.0 Btu (IT)/h SPIDER PL-40-08.....HH-.. 6.0 W 20.4 Btu (IT)/h SPIDER PL-40-08.....HV-.. 7.9 W 26.8 Btu (IT)/h Table 12: Power consumption/power output of the device variants SPIDER PL-20... , SPIDER PL-30... and SPIDER PL-40..Installation SPIDER PL Release 08 09/2018... -
Page 56: Scope Of Delivery, Order Numbers And Accessories
942141126 SPIDER PL-20-05T1999999TX9HHHH 942141116 SPIDER PL-20-06T1Z6Z6Z6TX9HHHH 942141127 SPIDER PL-20-07T1M2M299TX9HHHH 942141130 SPIDER PL-20-07T1S2S299TX9HHHH 942141131 SPIDER PL-20-08T1M29999TX9HHHH 942141128 SPIDER PL-20-08T1999999TX9HHHH 942141117 SPIDER PL-20-08T1S29999TX9HHHH 942141129 SPIDER PL-40-01T1O69999TX9HHHH 942141133 SPIDER PL-40-04T1O69999TX9HHHH 942141134 SPIDER PL-40-05T1999999TX9HHHH 942141119 SPIDER PL-40-08T1999999TX9HHHH 942141120 Installation SPIDER PL Release 08 09/2018... - Page 57 SFP-FAST-MM/LC EEC 942 194-002 SFP-FAST-SM/LC 942 195-001 SFP-FAST-SM/LC EEC 942 195-002 a. You find further information on certifications on the Internet at the Hirschmann product pages (www.hirschmann.com). Bidirectional Gigabit Ethernet SFP transceiver Order number M-SFP-BIDI Type A LX/LC EEC 943 974-001...
- Page 58 942 024-001 M-SFP-LH/LC 943 042-001 M-SFP-LH/LC EEC 943 898-001 M-SFP-LH+/LC 943 049-001 SFP-GIG-LX/LC 942 196-001 SFP-GIG-LX/LC EEC 942 196-002 a. You find further information on certifications on the Internet at the Hirschmann product pages (www.hirschmann.com). Installation SPIDER PL Release 08 09/2018...
-
Page 59: 11 Underlying Technical Standards
If your device has a shipping approval according to DNV GL, you find the approval mark printed on the device label. You will find out whether your device has other shipping approvals on the Hirschmann website at www.hirschmann.com in the product information. -
Page 60: A Open Source Software Used In The Product
Hirschmann Automation and Control GmbH provides no warranty for the Open Source Software contained in this product, if such Open Source Software is used in any manner other than intended by Hirschmann Automation and Control GmbH. The licenses listed below define the warranty, if any, from the authors or licensors of the Open Source Software. - Page 61 Hirschmann Automation and Control GmbH specifically disclaims any warranty for defects caused by altering any Open Source Software or the product's configuration. Any warranty claims against Hirschmann Automation and Control GmbH in the event that the Open Source Software contained in this product infringes the intellectual property rights of a third party are excluded.
- Page 62 CMSIS is released under the terms of the end user license agreement (“CMSIS END USER LICENCE AGREEMENT.pdf”). Any user of the software package is bound to the terms and conditions of the end user license agreement. Installation SPIDER PL Release 08 09/2018...
- Page 63 (DSP) algorithms and the application programming interface as defined in the DSP Library Specification. The DSP Library Implementation makes use of CMSIS application programming interface and therefore is targeted at Cortex-M class processors. Installation SPIDER PL Release 08 09/2018...
- Page 64 DSP Library Specification and provided that you do not use ARM's name, logo or trademarks to market such products; Installation SPIDER PL Release 08 09/2018...
- Page 65 ARM Deliverables only for your benefit, and (ii) agree to assign all their work product and any rights they create therein in the supply of such work to you. Installation SPIDER PL Release 08 09/2018...
- Page 66 7.2 Without prejudice to any of its other rights if you are in breach of any of the terms and conditions of this Licence then ARM may terminate this Licence immediately upon giving written notice to you. You may terminate this Licence at any time. Installation SPIDER PL Release 08 09/2018...
- Page 67 ARM's rights to enforce such provision or any other provision of this Licence in the future. This Licence may not be assigned without the prior written consent of ARM. ARM contract reference LEC-PRE-00489-V6.0 06 December, 2010 Installation SPIDER PL Release 08 09/2018...
-
Page 68: B Further Support
Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at http:// www.hirschmann.com. A list of local telephone numbers and email addresses for technical support... - Page 69 Installation SPIDER PL Release 08 09/2018...
