Hirschmann GRS103 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

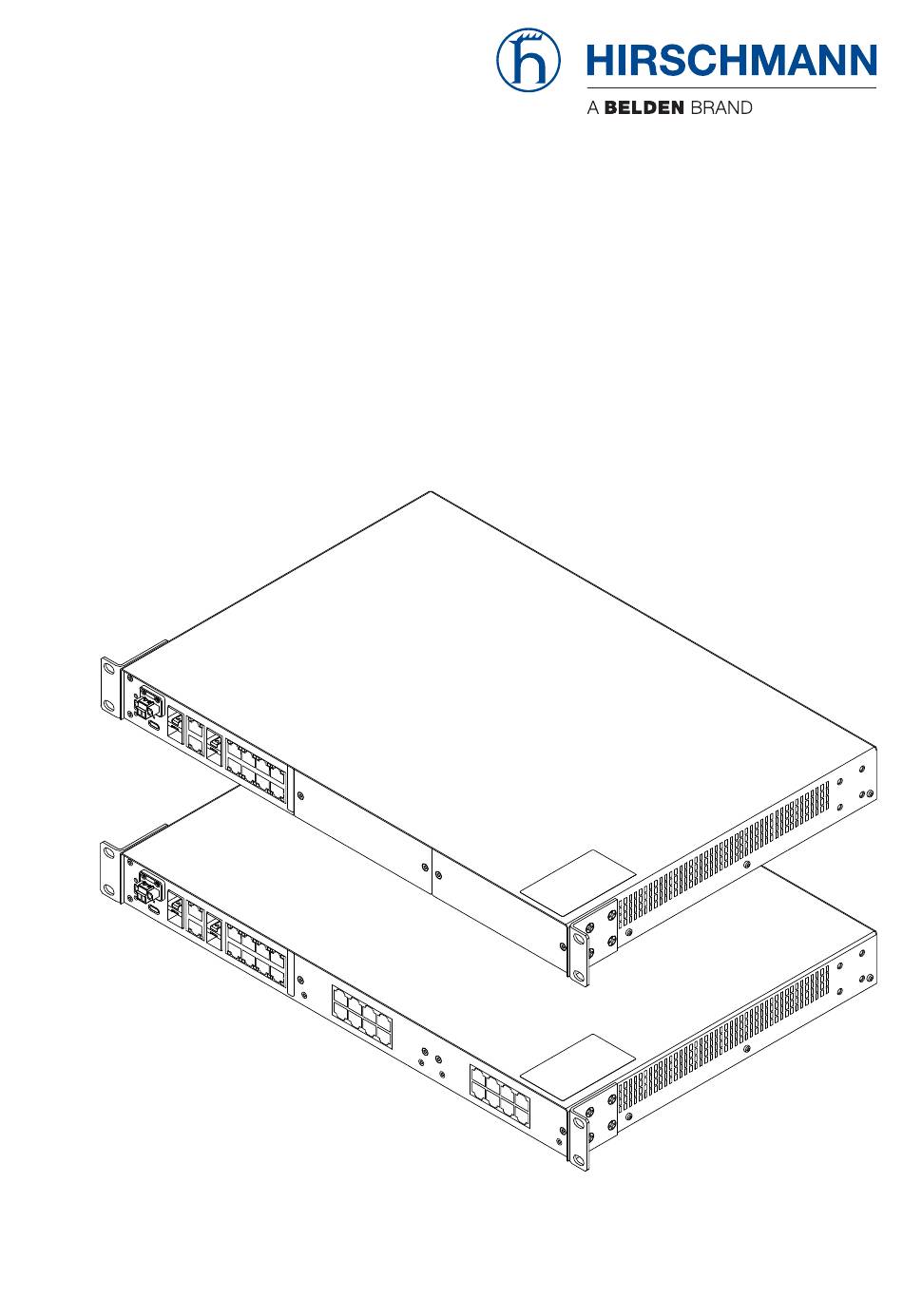

User Manual
Installation
Industrial ETHERNET Workgroup Switch
GRS103 Family
Installation GRS103
Technical support
Release 01 03/2022
https://hirschmann-support.belden.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRS103 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hirschmann GRS103 Series

Summary of Contents for Hirschmann GRS103 Series

  • Page 1 User Manual Installation Industrial ETHERNET Workgroup Switch GRS103 Family Installation GRS103 Technical support Release 01 03/2022 https://hirschmann-support.belden.com...
  • Page 2 Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right to change the contents of this document without prior notice. Hirschmann can give no guarantee in respect of the correctness or accuracy of the information in this document.

  • Page 3: Table Of Contents

    Contents About this manual General safety instructions Warning symbols Intended use National and international safety regulations Installation site requirements Qualification requirements for personnel 2.5.1 Media modules Device casing 2.6.1 ESD Guidelines Strain relief Shielded ground Electrical connections 2.9.1 Grounding the device 2.9.2 Requirements for connecting electrical wires 2.9.3 Requirements for connecting the supply voltage 2.9.4 Requirements for connecting the signal contact...
  • Page 4 5.1.1 GRS103 basic devices 5.1.2 Modular GRS103 basic devices 5.1.3 GRS103 media modules Device views 5.2.1 Basic device 5.2.2 Modular basic device 5.2.3 Rear view 5.2.4 Port assignment Power supply 5.3.1 Basic device 5.3.2 PoE supply voltage for M1-8TP-RJ45 PoE media module Management interfaces 5.4.1 Signal contact...
  • Page 5 Connecting the signal contact (optional) Connecting the supply voltage Connecting the PoE supply voltage to the M1-8TP- RJ45 PoE media module (optional) 6.10 Connecting data cables 6.11 Support of PoE 6.12 Filling out the inscription label Operating the device Making basic settings Default settings First login (Password change) Monitoring the ambient conditions...
  • Page 6 12.6 Climatic conditions during storage 12.7 Dimension drawings Immunity Network range 15.1 10/100/1000 Mbit/s twisted pair port 15.2 Fast Ethernet SFP transceiver 15.3 Bidirectional Fast Ethernet SFP transceiver 15.4 Gigabit Ethernet SFP transceiver 15.5 Bidirectional Gigabit Ethernet SFP transceiver Scope of delivery 16.1 Basic device 16.2 Media modules Order numbers...

  • Page 7: About This Manual

    Documentation mentioned in the “User Manual Installation” that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://www.doc.hirschmann.com Installation GRS103 Release 01 03/2022...

  • Page 8: General Safety Instructions

     Operate the device with undamaged components exclusively.  The device is free of any service components. In case of a damaged or malfunctioning device, turn off the supply voltage and return the device to Hirschmann for inspection. WARNING UNCONTROLLED MACHINE ACTIONS To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually.

  • Page 9: Intended Use

    Intended use  Use the product only for the application cases described in the Hirschmann product information, including this manual.  Operate the product only according to the technical specifications. See “General technical data” on page 62.  Connect to the product only components suitable for the requirements of the specific application case.

  • Page 10: National And International Safety Regulations

    National and international safety regulations  Verify that the electrical installation meets local or nationally applicable safety regulations. Installation site requirements Operate the device only at the specified ambient temperature (temperature of the ambient air at a distance of 5 cm (2 in) from the device) and at the specified relative humidity.

  • Page 11: Device Casing

     If you are operating the device in a 19" switch cabinet: install sliding/ mounting rails for supporting the weight of the device.  Exclusively use Hirschmann mounting brackets.  Exclusively use the provided screws when you reposition the attached mounting brackets or install additional mounting brackets.

  • Page 12: Strain Relief

    Strain relief Note: If the strain relief is insufficient, there is a potential risk of torsion, contact problems and creeping interruptions.  Relieve the connection points of cables and lines from mechanical stress.  Design strain reliefs in such a way that they help prevent any mechanical damage to cables, wires or conductors caused by external influences or their own weight.

  • Page 13: Requirements For Connecting The Supply Voltage

     Only switch on the device when the casing is closed.  Relevant for North America: Exclusively use +60/+75 °C (+140/+167 °F) or +75 °C (+167 °F) copper (Cu) wire. 2.9.3 Requirements for connecting the supply voltage The supply voltage is connected to the device casing through protective elements exclusively.

  • Page 14: Requirements For Connecting The Signal Contact

    2.9.4 Requirements for connecting the signal contact Before connecting the signal contact, always verify that the requirements listed are complied with. The following requirements apply without restrictions:  The switched voltage complies with the requirements for a safety extra- low voltage (SELV) according to IEC 60950-1 or ES1 according to IEC/ EN 62368-1.

  • Page 15: Led Or Laser Components

    2.11 LED or laser components LED or LASER components according to IEC 60825-1 (2014): CLASS 1 LASER PRODUCT CLASS 1 LED PRODUCT 2.12 Recycling note After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country.

  • Page 16: Approvals

    In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany You find the EU conformity declaration as PDF file for downloading on the Internet at: https://www.doc.hirschmann.com/certificates.html...

  • Page 17: Ukca Marking

    Note: The assembly guidelines provided in these instructions must be strictly adhered to in order to observe the EMC threshold values. UKCA marking The labeled devices comply with the following UK regulations: S.I. 2012 No. 3032 Restriction of the Use of Certain Hazardous Substances in Electrical and Electronical Equipment Regulations S.I.

  • Page 18: Fcc Note

    FCC note Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information GRS103 GRS103 modules U.S. Contact Information Belden – St. Louis 1 N. Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 19  Mechanical stress: Check for potential dangers resulting from unevenly distributed weight when you install the device in a switch cabinet.  Electric circuit overloading: Observe the effects of electric circuit overloads on the overload current protection and the power supply cables when you connect devices to the power supply.

  • Page 20: Key

    The symbols used in this manual have the following meanings:  Listing Work step   Subheading Installation GRS103 Release 01 03/2022...

  • Page 21: Description

    Description General device description The GRS103 device is a managed switch with up to 22 × 10/100 Mbit/s Twisted pair ports and 4 × 10/100/1000 Mbit/s Combo ports. The GRS103 variants consist of either a single device, or – depending on the device variant –...

  • Page 22: Grs103 Basic Devices

    Network management software (for example Industrial HiVision) The Network Management Software Industrial HiVision provides you with options for smooth configuration and monitoring. You find further information on the Internet at the Hirschmann product pages: http://www.hirschmann.com/en/QR/INET-Industrial-HiVision  USB-C interface (locally on the device) The device provides you with a large range of functions, which the manuals for the operating software inform you about.

  • Page 23: Modular Grs103 Basic Devices

     The Gigabit Ethernet Combo ports (alternatively connectable via F/O or TX) of the basic devices are suitable for connecting end devices or network segments according to the standards IEEE 802.3 1000BASE-X/ 100BASE-FX (SFP slot) and IEEE 802.3 1000BASE-T/100BASE-TX / 10BASE-T (RJ45 socket).

  • Page 24: Grs103 Media Modules

    5.1.3 GRS103 media modules Figure 3: Media module for GRS103, Example: M1-8MM-SC The modular GRS103 device variants GRS103-6TX/4C... use the M1 family of media modules, which are also compatible with MACH102 devices. The GRS103 media modules form the interface from the device to the LAN. The media modules are hot-plug-compatible.
  • Page 25 GRS103 media TP ports 10/ TP ports 10/ F/O ports F/O ports SFP ports modules 100 Mbit/s 100 Mbit/s Multimode Singlemode Multimode Module type 100 Mbit/s 100 Mbit/s Singlemode Longhaul 100 Mbit/s M1-8TP-RJ45 8, RJ45 – – – – M1-8TP-RJ45 PoE – 8, RJ45 –...
  • Page 26 You can connect PoE terminal devices (PD, Powered Device, Type 1 or Type 2) from Class 0 to Class 4. Connect only PDs with a collective power budget at PSE <124 W. Example: 7 × Class 3 PD + 1 × Class 2 PD = 114.8 W, thus permitted 8 ×...
  • Page 27 100 Mbit/s full duplex (FDX) and support FEFI. These ports are SFP slots and are designed for the M-FAST SFP-... Hirschmann SFP module types. See “Accessories” on page 77. Figure 8: Media module M1-8SFP: Front view...

  • Page 28: Device Views

    Device views 5.2.1 Basic device Status Relay 1.10 LED display elements for device status Signal contact 2-pin terminal block Port group I 4 × Combo port for 10/100/1000 Mbit/s TP connections or 100/1000 Mbit/s F/O connections 6 × 10/100 Mbit/s twisted pair port MAC address of device (label) Port group II 8 ×...

  • Page 29: Rear View

    5.2.3 Rear view Power supply unit 1 Table 7: Rear view: Device variants with non-redundant power supply Power supply unit 2 Power supply unit 1 Table 8: Rear view: Device variants with redundant power supply 5.2.4 Port assignment 1.5 1.7 1.9 2.1 2.3 2.5 2.7 3.1 3.3 3.5 3.7 Status...

  • Page 30: Power Supply

    Power supply WARNING ELECTRIC SHOCK Connect only a supply voltage that corresponds to the type plate of your device. Failure to follow these instructions can result in death, serious injury, or equipment damage. Note: Note the safety instructions in “Requirements for connecting electrical wires”...

  • Page 31: Poe Supply Voltage For M1-8Tp-Rj45 Poe Media Module

    Figure 10: Supply voltage: Non-heating-appliance cable connection with built-in C14 plug (according to IEC 60320-1) 5.3.2 PoE supply voltage for M1-8TP-RJ45 PoE media module − Figure 11: 3-pin terminal block for external PoE power supply The PoE power is supplied via the wire pairs transmitting the signal (Alternative A/phantom voltage).

  • Page 32: Management Interfaces

    Management interfaces 5.4.1 Signal contact Figure 12: Signal contact: 2-pin terminal block with screw locking casing Status Relay Figure 13: Signal contact: 2-pin terminal block with screw lock; position on the device The signal contact is a potential-free relay contact. When the device is not connected to a power supply, the signal contact is open.

  • Page 33: Usb-C Interface: Aca22-Usb-C

    You will find detailed information on possible applications and the configuration of the signal contact in the software user documentation. You will find the software user documentation as PDF files on the Internet at https://www.doc.hirschmann.com 5.4.2 USB-C interface: ACA22-USB-C The USB-C interface allows you to connect the AutoConfiguration Adapter ACA22 storage medium.

  • Page 34: Ethernet Ports

    Ethernet ports You can connect end devices and other segments to the device ports using twisted pair cables or optical fibers (F/O). 5.5.1 10/100 Mbit/s twisted pair port This port is an RJ45 socket. The 10/100 Mbit/s twisted pair port allows you to connect network components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.

  • Page 35: 10/100/1000 Mbit/S Twisted Pair Port

    The individual ports (joint PoE voltage) are not electrically insulated from each other. The pin assignment corresponds to MDI-X. Function PoE voltage Receive path Minus terminal Receive path Minus terminal Transmission path Plus terminal Transmission path Plus terminal 4, 5, 7, 8 — Table 11: Pin assignment 10/100-Mbit/s PoE port, RJ45 socket, MDI-X mode, phantom supply 5.5.3...

  • Page 36: 10/100/1000 Mbit/S Twisted Pair Port

    Exclusively media module M1-8TP-RJ45 PoE supports Power over Ethernet (PoE). Prerequisites for the support of PoE:  At least 1 media module with PoE functionality (M1-8TP-RJ45 PoE) is mounted in the basic device. The 10/100 Mbit/s PoE port allows you to connect network components as a PoE voltage sink according to the standard IEEE 802.3 10BASE-T/ 100BASE-TX and IEEE 802.3af.

  • Page 37: 100/1000 Mbit/S Combo Port

    This port supports:  Full or half duplex mode Default setting: Full duplex Note: Verify that the LH ports are connected only with LH ports, SM ports only with SM ports, and MM ports only with MM ports. 5.5.6 100/1000 Mbit/s Combo port This port is a combo port SFP slot.
  • Page 38 Status Relay Figure 16: Device status: Device status LED locations on the device Display Color Activity Meaning Supply none Supply voltage is too low Power voltage yellow lights up Device variants with redundant power supply: Supply voltage 1 or 2 is on flashes 4 ×...

  • Page 39: Port Status

    5.6.2 Port status These LEDs display port-related information. Figure 17: Port status: Port status LED locations on the device Display Color Activity Meaning Link status – none Device detects an invalid or missing link green lights up Device detects a valid link flashes 1 ×...

  • Page 40: Installation

    Installation The device was developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. To install the device, perform the following work steps:  Checking the package contents  Installing an SFP transceiver (optional) ...

  • Page 41: Installing An Sfp Transceiver (Optional)

    Installing an SFP transceiver (optional) Prerequisites: Exclusively use Hirschmann SFP transceivers. See “Accessories” on page 77. Figure 18: Installing SFP transceivers: Installation sequence Perform the following work steps:  Take the SFP transceiver out of the transport packaging (1).  Remove the protection cap from the SFP transceiver (2).

  • Page 42: Installing The Device

    Note: If you are replacing media modules, for example removing a TP media module and plugging in an F/O media module in its place, the GRS103 device performs a warm start. This also applies if you plug a GRS103 media module into a previously empty media module slot.

  • Page 43: Selecting The Installation Location

    WARNING ELECTRIC SHOCK Exclusively install this device in a switch cabinet or in a restricted access location according to EN 62368-1, to which maintenance staff have exclusive access. Failure to follow these instructions can result in death, serious injury, or equipment damage. CAUTION OVERHEATING OF THE DEVICE Verify that all ventilation slots are clear when installing the device.

  • Page 44: Mounting On A Flat Surface

    6.5.2 Mounting on a flat surface Install the device in line with the criteria listed in “Installing the device” on page Perform the following work steps:  Remove the screws on the pre-installed mounting brackets.  Move the 2 pre-installed mounting brackets on the front side into the position shown in figure Figure 20: Mounting on a flat surface...

  • Page 45: Mounting On A Vertical Flat Surface

    6.5.3 Mounting on a vertical flat surface WARNING FIRE HAZARD Install the device in a fire enclosure according to EN 62368-1 if you install the device vertically. Failure to follow these instructions can result in death, serious injury, or equipment damage. Install the device in line with the criteria listed in “Installing the device”...

  • Page 46: Mounting In A Switch Cabinet

     Use the screws to secure the mounting brackets on the device.  Attach 2 additional mounting brackets to the back of the device. (see figure 20) You obtain the additional brackets as accessories. See “Accessories” on page 77.  Fasten the device by screwing the brackets to the flat surface. Completely screw the device to the flat surface using screws through each mounting hole.
  • Page 47 Figure 22: Assembly in a switch cabinet with sliding/mounting rails 1 - device 2 - sliding/mounting rail 3 - 19" switch cabinet Perform the following work steps:  Assemble the sliding or mounting rails in the 19" switch cabinet as specified by the manufacturer.
  • Page 48 Figure 23: Mounting in a switch cabinet: Mounting brackets with oblong holes Note: When operating the device in an environment with continuous vibration loads, it is necessary to additionally fasten the device to the switch cabinet using 2 mounting brackets on the front or rear side of the device. You obtain the additional brackets as accessories.

  • Page 49: Grounding The Device

    Grounding the device The device is grounded via the power supply connection(s). Connecting the signal contact (optional) FAULT Figure 24: 2-pin terminal block Note: Observe the electrical threshold values for the signal contact (see on page 65 “Signal contact”). Status Relay Figure 25: Signal contact: 2-pin terminal block with screw lock;...

  • Page 50: Connecting The Supply Voltage

    Connecting the supply voltage Figure 26: Supply voltage: Non-heating-appliance cable connection with built-in C14 plug (according to IEC 60320-1) For every supply voltage to be connected, perform the following step:  On the rear side of the device, plug a non-heating device cable with C13 coupling according to IEC 60320-1 into the power supply connection (built-in C14 plug) of the device.
  • Page 51 The PoE power is supplied via the wire pairs transmitting the signal (phantom voltage). The individual ports (joint PoE voltage) are not electrically insulated from each other. The following values apply to the PoE supply voltage of the module: Rated voltage 48 V DC SELV Minimum voltage 46 V DC...

  • Page 52: Connecting Data Cables

    Note: Make sure the following requirements are met:  Supply line length < 3 m  Supply line cross section is suitable for 5 A  Pull the terminal block(s) off the switch and connect the voltage supply lines as follows: ...

  • Page 53: Filling Out The Inscription Label

    Prerequisites for the support of PoE:  At least 1 media module with PoE functionality (M1-8TP-RJ45 PoE) is mounted in the basic device. The 10/100 Mbit/s PoE port allows you to connect network components as a PoE voltage sink according to the standard IEEE 802.3 10BASE-T/ 100BASE-TX and IEEE 802.3af/IEEE 802.3at.

  • Page 54: Operating The Device

    Operating the device WARNING ELECTRIC SHOCK Connect only a supply voltage that corresponds to the type plate of your device. Failure to follow these instructions can result in death, serious injury, or equipment damage. Note: Note the safety instructions in “Requirements for connecting electrical wires”...

  • Page 55: Making Basic Settings

     AutoConfiguration Adapter  Input via the HiView or Industrial HiVision application. You find further information about the applications HiView or Industrial HiVision on the Internet at the Hirschmann product pages: HiView http://www.hirschmann.com/en/QR/INET-HiView Industrial HiVision http://www.hirschmann.com/en/QR/INET-Industrial-HiVision Further information on the basic settings of the device can be found in the “Basic Configuration”...

  • Page 56: First Login (Password Change)

     Log on to the device again with your new password. Note: If you lost your password, then use the System Monitor to reset the password. For further information see: https://hirschmann-support.belden.com/en/kb/required-password-change- new-procedure-for-first-time-login Installation GRS103 Release 01 03/2022...

  • Page 57: Monitoring The Ambient Conditions

    Monitoring the ambient conditions Monitoring the ambient air temperature Operate the device below the specified maximum ambient air temperature exclusively. See “General technical data” on page 62. The ambient air temperature is the temperature of the air at a distance of 5 cm (2 in) from the device.

  • Page 58: 10 Maintenance And Service

    10 Maintenance and service  When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications.

  • Page 59: 11 Disassembly

    11 Disassembly Perform the following work steps: “Removing an SFP transceiver (optional)”  “Removing a media module”  “Removing the device”  11.1 Removing an SFP transceiver (optional) Figure 28: De-installing SFP transceivers: De-installation sequence Perform the following work steps: ...

  • Page 60: Removing The Device

     To remove the media module, first remove the two screws at the corners of the media module.  Pull the media module out of the slot.  Fasten the protective cover to the slot using the two screws. 11.3 Removing the device WARNING ELECTRIC SHOCK...
  • Page 61 Figure 29: Removing the device: Mounting brackets with oblong holes  To detach the device from a switch cabinet or a plain surface, remove the screws from the mounting brackets on the device. Installation GRS103 Release 01 03/2022...

  • Page 62: 12 Technical Data

    12 Technical data 12.1 General technical data 12.1.1 Basic device Dimensions See “Dimension drawings” on page 66. Weight GRS103-6TX/4C-1HV-2S 3.6 kg (7.94 lb) GRS103-6TX/4C-1HV-2A 3.6 kg (7.94 lb) GRS103-6TX/4C-2HV-2S 3.85 kg (8.49 lb) GRS103-6TX/4C-2HV-2A 3.85 kg (8.49 lb) GRS103-22TX/4C-1HV-2S 3.85 kg (8.49 lb) GRS103-22TX/4C-1HV-2A 3.85 kg (8.49 lb) GRS103-22TX/4C-2HV-2S...

  • Page 63: Media Modules

    12.1.2 Media modules Dimensions See “Dimension drawings” on page 66. Weight M1-8TP-RJ45 210 g (0.46 lb) M1-8MM-SC 210 g (0.46 lb) M1-8SM-SC 180 g (0.4 lb) M1-8SFP 130 g (0.29 lb) M1-8TP-RJ45 PoE 260 g (0.57 lb) Installing the media modules Tightening torque 0.34 Nm (3 lb-in) Mounting of the cover panel...

  • Page 64: Power Consumption/Power Output

    Connection type 3-pin terminal block Tightening torque 0.34 Nm (3 lb-in) min. conductor diameter 1 mm² (AWG16) max. conductor diameter 1.3 mm² (AWG16) Rated power 2.5 A Rated voltage range Type 2 PD, SELV/ES1 54 V DC Voltage range including maximum 51 V DC ...

  • Page 65: Signal Contact

    12.4 Signal contact Nominal value Switching current max. 1 A Switching voltage max. 60 V DC or max. 30 V AC SELV according to IEC 60950-1 or ES1 according to IEC/EN 62368-1 Connection type 2-pin terminal block with screw lock Tightening torque 0.34 Nm (3 lb-in) min.

  • Page 66: Climatic Conditions During Storage

    12.6 Climatic conditions during storage Climatic conditions during storage Ambient -40 °C ... +70 °C (-40 °F ... +158 °F) up to 1 year temperature -40 °C ... +50 °C (-40 °F ... +122 °F) up to 2 years 0 °C ... +30 °C (+32 °F ... +86 °F) up to 10 years Humidity 10 % ...

  • Page 67: 13 Emc

    13 EMC EMC interference emission Standard applications EN 55032 Class A Fulfilled FCC 47 CFR Part 15 Class A Fulfilled EN 61000-6-4 Fulfilled...

  • Page 68: 14 Immunity

    14 Immunity Immunity Standard applications IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 3.5 mm (0.14 in) amplitude 8.4 Hz ... 200 Hz with 1 g IEC 60068-2-27, test Ea Shock 15 g at 11 ms EMC interference immunity Standard applications Electrostatic discharge EN 61000-4-2...

  • Page 69: 15 Network Range

    15 Network range Note: The line lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and Bandwidth Length Product (BLP)/ Dispersion). 15.1 10/100/1000 Mbit/s twisted pair port 10/100/1000 Mbit/s twisted pair port Length of a twisted pair segment max.
  • Page 70 MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul b. Including 3 dB system reserve when compliance with the fiber data is observed. c. With ultra-low-loss optical fiber. d. You will find further information on certifications on the Internet on the Hirschmann product pages (www.hirschmann.com).

  • Page 71: Bidirectional Fast Ethernet Sfp Transceiver

    15.3 Bidirectional Fast Ethernet SFP transceiver Product code Mode Wave length Wave length Fiber System Example for F/O Fiber BLP/Dispersion attenuation line length attenuation SFP-FAST-BA 1310 nm 1550 nm 50/125 µm 0 dB ... 16 dB 0 km ... 2 km 1.0 dB/km 800 MHz×km MM/LC EEC...

  • Page 72: Gigabit Ethernet Sfp Transceiver

    15.4 Gigabit Ethernet SFP transceiver Product code Mode Wave length Fiber System Example for F/O line Fiber attenuation BLP/Dispersion attenuation length M-SFP-SX/LC... 850 nm 50/125 µm 0 dB ... 7.5 dB 0 km ... 0.55 k 3.0 dB/km 400 MHz×km (0 mi ...

  • Page 73: Bidirectional Gigabit Ethernet Sfp Transceiver

    Product code Mode Wave length Fiber System Example for F/O line Fiber attenuation BLP/Dispersion attenuation length SFP-GIG-LX/LC... 1310 nm 50/125 µm 0 dB ... 10.5 dB 0 km ... 0.55 km 1.0 dB/km 800 MHz×km (0 mi ... 0.34 mi) SFP-GIG-LX/LC...
  • Page 74 Product code Mode Wave length Wave length Fiber System Example for F/O line Fiber BLP/Dispersion attenuation length attenuation M-SFP-BIDI Type 1590 nm 1490 nm 9/125 µm 5 dB ... 24 dB 23 km ... 80 km 0.25 dB/km 19 ps/(nm×km) B LH/LC EEC (14.29 mi ...

  • Page 75: 16 Scope Of Delivery

    16 Scope of delivery 16.1 Basic device Amount Article 1 × GRS103 device 1 × Safety and general information sheet 1 × 2-pin terminal block for signal contact 2 × Cover panel for media module slot 16.2 Media modules Amount Article 1 ×...

  • Page 76: 17 Order Numbers

    17 Order numbers GRS103 devices Order number GRS103-6TX/4C-1HV-2S 942 298-001 GRS103-6TX/4C-1HV-2A 942 298-002 GRS103-6TX/4C-2HV-2S 942 298-003 GRS103-6TX/4C-2HV-2A 942 298-004 GRS103-22TX/4C-1HV-2S 942 298-005 GRS103-22TX/4C-1HV-2A 942 298-006 GRS103-22TX/4C-2HV-2S 942 298-007 GRS103-22TX/4C-2HV-2A 942 298-008 M1 modules Order number M1-8TP-RJ45 943 970-001 M1-8MM-SC 943 970-101 M1-8SM-SC 943 970-201 M1-8SFP...

  • Page 77: 18 Accessories

    942 195-001 SFP-FAST-SM/LC EEC 942 195-002 Table 27: Accessory: Fast Ethernet SFP transceiver a. You will find further information on certifications on the Internet on the Hirschmann product pages (www.hirschmann.com). Bidirectional Fast Ethernet SFP transceivers Order number SFP-FAST-BA MM/LC EEC...
  • Page 78 942 119-001 SFP-GIG-LX/LC 942 196-001 SFP-GIG-LX/LC EEC 942 196-002 a. You will find further information on certifications on the Internet on the Hirschmann product pages (www.hirschmann.com). Bidirectional Gigabit Ethernet SFP transceiver Order number M-SFP-BIDI Type A LX/LC EEC 943 974-001...

  • Page 79: 19 Underlying Technical Standards

    If your device has a shipping approval according to DNV, you find the approval mark printed on the device label. You will find out whether your device has other shipping approvals on the Hirschmann website at www.hirschmann.com in the product information.

  • Page 80: A Further Support

    Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at http://www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.com.
  • Page 81 Installation GRS103 Release 01 03/2022...
