5

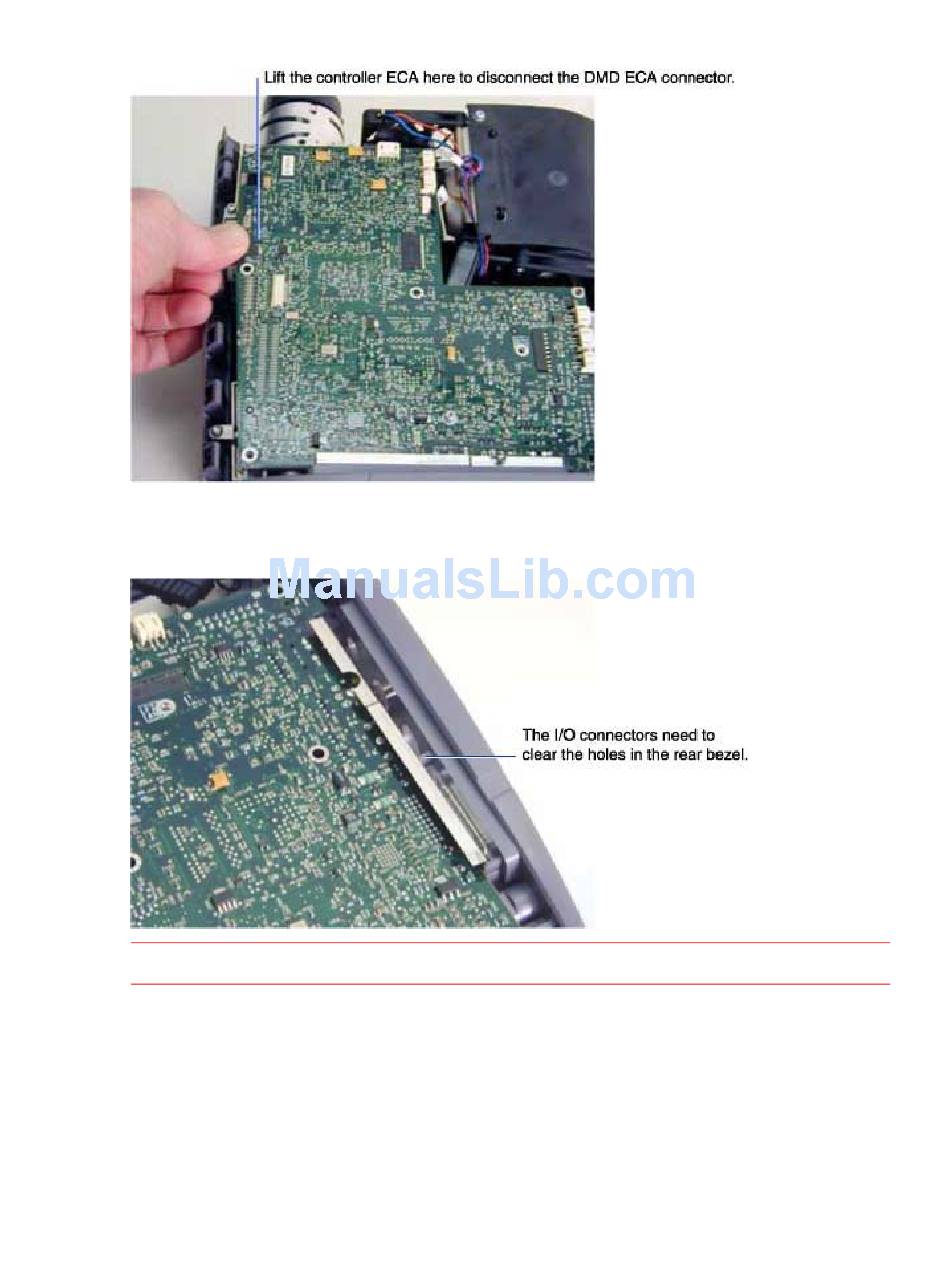

Lift the edge of the controller over the optical engine to release the DMD/controller connector.
6
Slide the controller forward slightly so the I/O connectors clear the holes the rear bezel. Then lift
the controller out of the projector.
WARNING Make sure to store the controller ECA in a static-safe container.
7
If you are replacing the controller with a new one, remove the I/O EMI shield (see page 34).
For information on installing the controller ECA, see page 32.
TDP-S3/TDP-T3/TDP-MT5 Service Manual
31
