10. Overview pages (aquasuite)

10. Overview pages (aquasuite) 10. Overview pages (aquasuite) 10. Overview pages (aquasuite)
Current sensor readings and diagrams from all supported devices can be dis-
played in overview pages. For each device a pre-configured overview page is au-
tomatically generated the first time the device is connected to the PC. These pages
can be individually modified and new pages can be created. Within one overview
page, data from all connected devices can be accessed.

10.1. Desktop mode

10.1. Desktop mode 10.1. Desktop mode 10.1. Desktop mode
Each overview page can be displayed directly on your desktop. You can enable
desktop mode for an overview page by clicking the corresponding symbol in the
list of overview pages. Desktop mode can only be enabled for one overview page
at a time. With desktop mode enabled, elements of the overview page may cover
program symbols on your desktop, but mouse clicks are transmitted to underlying
desktop symbols.
If a overview page is unlocked for editing while desktop mode is active, the page
will be displayed in the aquasuite window for editing and the current desktop will
be displayed as background for your convenience.

10.2. Creating new overview pages and activating edit mode

10.2. Creating new overview pages and activating edit mode 10.2. Creating new overview pages and activating edit mode 10.2. Creating new overview pages and activating edit mode
In order to create a new overview page, click the plus symbol in the headline
"Overview pages".
Existing overview pages can be unlocked for editing by clicking lock symbol in the
page listing.

10.3. Adding new elements

10.3. Adding new elements 10.3. Adding new elements 10.3. Adding new elements

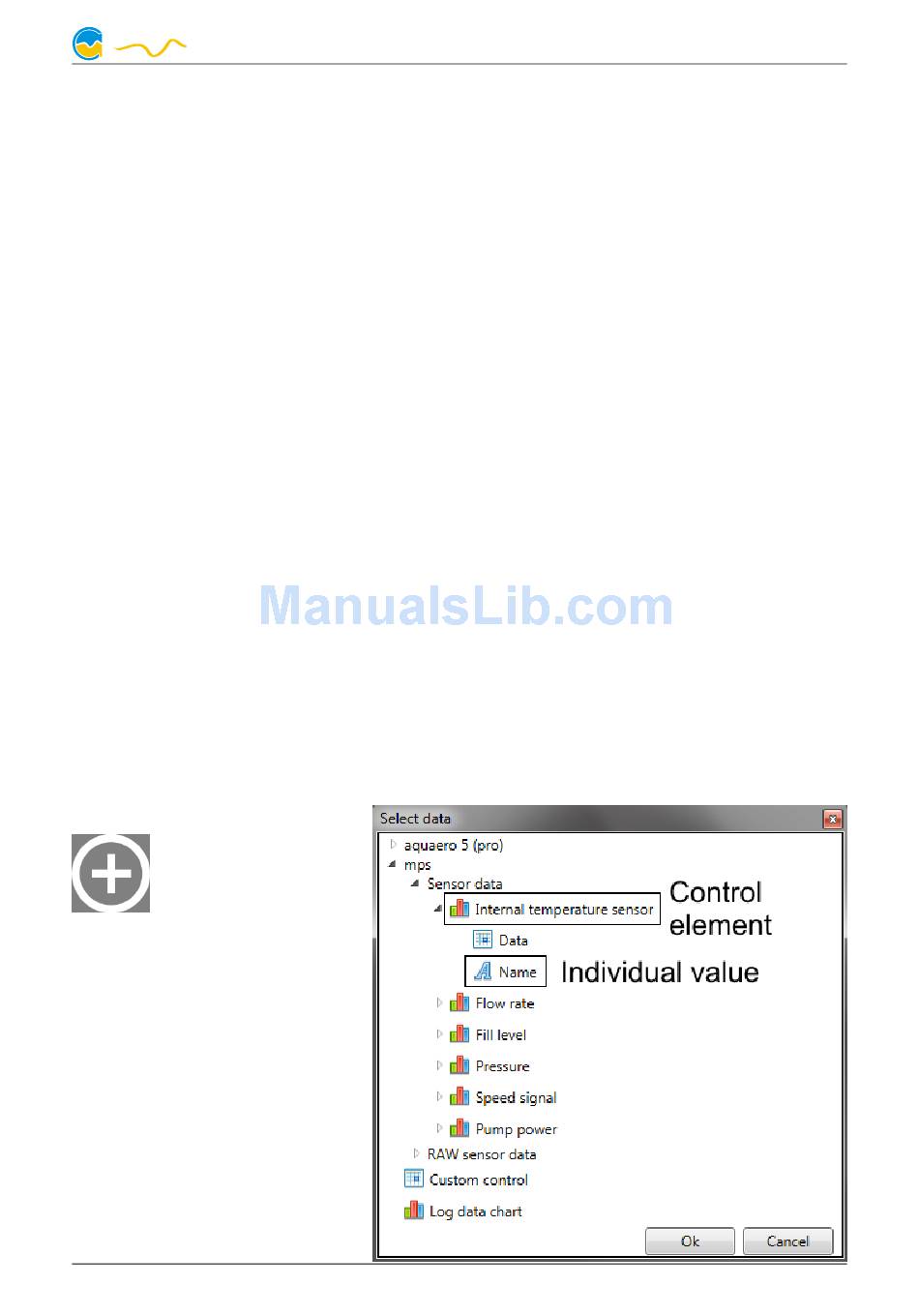

If the currently selected over-
view page is un-
locked for editing, a
white plus symbol is
displayed in the bottom right
corner of the screen. Click the
symbol to add a new element
to the page and select the de-
sired element from the follow-
ing list. All available elements
are displayed in a tree dia-
gram, click the arrow or plus
and minus symbols to access
individual items. Please note
that individual values can be
selected as well as high-
