- Page 1 AQUADUCT Operating and assembly manual aquaduct 240 and 360 XT March 2007 © 2007 Aqua Computer GmbH & Co. KG - 1 - Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 2: Table Of Contents
10. Initial operation............21 11. Mechanical fill level and flow indicator......24 12. Electronic fill level and flow indicator (aquaduct 360 XT)..24 13. Maintenance and care instructions.........25 - 2 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 3: Preface
Dear Customer, We congratulate you on the purchase of a water cooling system made by Aqua Computer GmbH & Co. KG. We are one of the oldest manu- facturers of PC-cooling systems in Germany. Parts manufactured by us meet highest quality standards. During the development we especially took into account that our cooling system is dependable and leak proof. -
Page 4: Overview About The Aquaduct

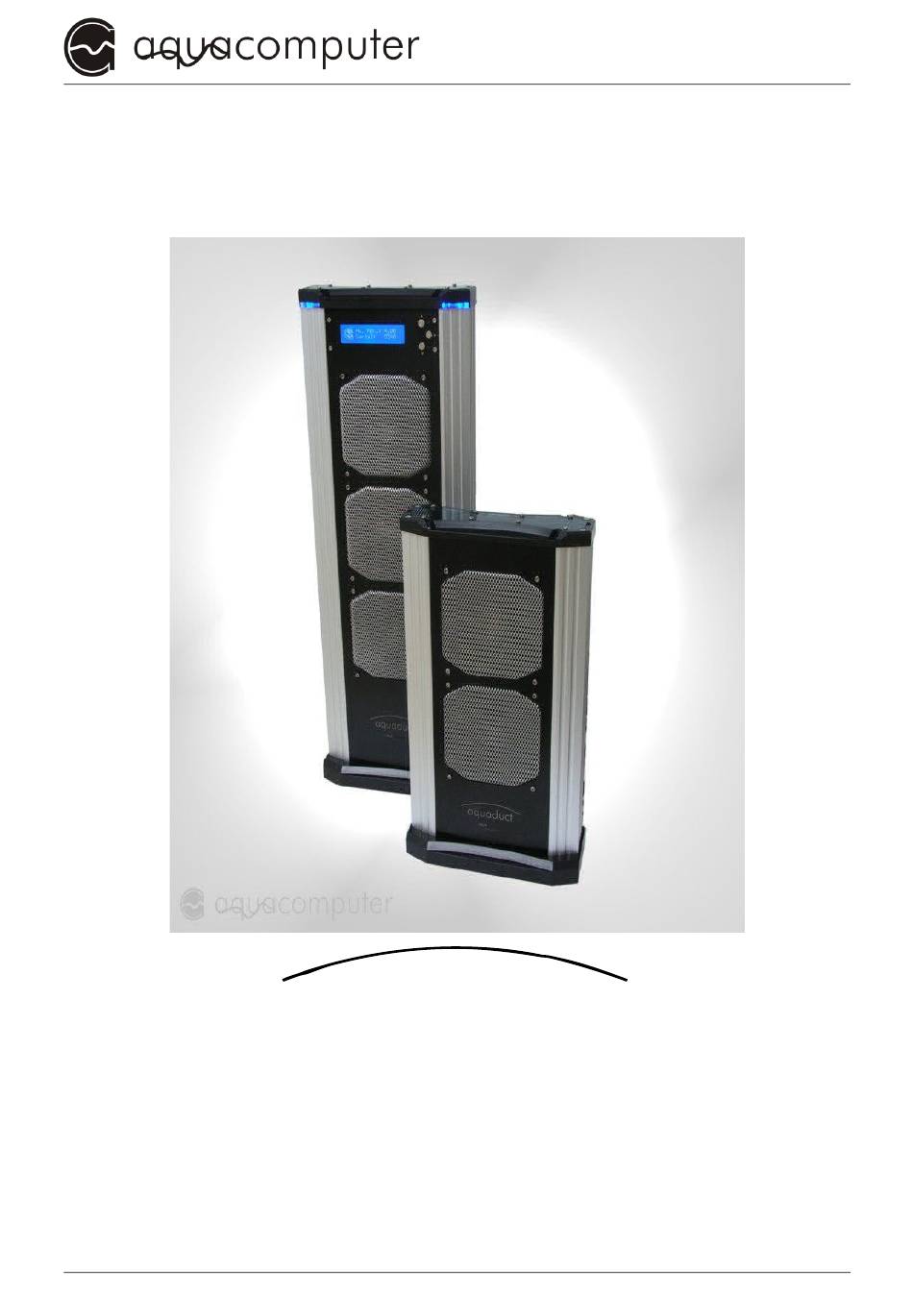

The aquaduct is a combination of passive and active radiator whereby both variants can match the required cooling performance. The aquaduct 240 contains a 230 V pump and a dual radiator which is equipped with two 120 mm fans. The aquaduct 360 XT unites the experience and developments of the last years into one product. -
Page 5: Information On The Assembly Of A Water Cooling System
To optimally carry off the heat of the CPU the cooler was made out of copper. The copper used is of very high purity, which results in an out- © 2007 Aqua Computer GmbH & Co. KG - 5 - Gelliehäuser Str. 1, 37130 Gleichen... - Page 6 Therefore it is possible that the product you pur- chased doesn’t answer exactly the descriptions or the pictures in this manual. - 6 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 7: Safety Precautions
Use a multiple socket with a switch for example, via which you connect the aquaduct AND the computer to the power outlet! (230 V versions) © 2007 Aqua Computer GmbH & Co. KG - 7 - Gelliehäuser Str. 1, 37130 Gleichen... - Page 8 Aqua Computer GmbH & Co. KG customers using or selling this product for use in such applica- tion do so at their own risk and agree to fully indemnify Aqua Computer GmbH & Co. KG for any damages resulting from such application.
-
Page 9: Contents Of The Package
- aquaero power connect - 24 pin ATX standby power / ATX break (or- der number 53047) - aquaero power connect - 20 pin ATX standby power / ATX break (or- der number 53041) © 2007 Aqua Computer GmbH & Co. KG - 9 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 10: Arranging The Elements Of The Cooling System
After each detachment of the hose from a connector the first two centimeters have to be cut off to guarantee a secure operation. - 10 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen... - Page 11 With a cross-section area of about 30 mm² the system allows a sufficient flow even in larger lengths of hose. © 2007 Aqua Computer GmbH & Co. KG - 11 - Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 12: Installation Of The Cpu-Cooler Cuplex™, Pro And Xt
Even so-called spacers do not offer absolute protection. If you are not confident in doing this yourself, please ask a dealer to do it for you. - 12 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 13: Installation With The "3-Nose-Mounting Kit" - Socket 370, A
Compress the springs putting the thumb balls on the stainless steel sheets from above and taking hold of the lid from below © 2007 Aqua Computer GmbH & Co. KG - 13 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 14: Installation With The "4-Hole-Mounting Kit" - Socket 478, 775, Am2
During this process make sure that the spring coils do not touch each other, since this can cause inadmissible high forces to build up. The spring has to - 14 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 15: Installation With „2-Hole-Mounting Kit" - Socket 754, 939, F
The pro- cedure is described in chapter 4. Use of the plug&cool connectors. © 2007 Aqua Computer GmbH & Co. KG - 15 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 16: Proper Connection Of The Cuplex Pro And Xt
The cooler reaches its full cooling performance only when connect- ed in this way while in reversed operation the cooling performance is sinificantly reduced. - 16 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 17: Installation Of The Pc Interface Circuit Board
In this case it is highly recommend to check the temperature of the system constantly as the system will eventually overheat! © 2007 Aqua Computer GmbH & Co. KG - 17 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 18: J1_Standby
"support" area. - 18 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 19: Connecting The Aquaduct
The second connection is the USB connection of the aquaduct. This connection is available on models with corresponding electronics (360 XT). Furthermore there are the out- and inlet connectors for the tubes. © 2007 Aqua Computer GmbH & Co. KG - 19 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 20: Operation Of The Ball Valves
This will considerably reduce the amount of water leaking from the tubes while disconnecting. - 20 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 21: Initial Operation
To power aquaduct versions which have a 12 V pump, an adapter is included which enables you to start the power supply unit of your PC. © 2007 Aqua Computer GmbH & Co. KG - 21 - Gelliehäuser Str. 1, 37130 Gleichen... - Page 22 Do not put the PC hardware into operation before you have made sure that there are no water leakages! If components - 22 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen...
- Page 23 After a running time of about 10 hours or at visible pollutions, it is ad- visable to change the coolant once again to remove pollutions and pos- sible production delays (e.g. oils and swarf) from the system. © 2007 Aqua Computer GmbH & Co. KG - 23 - Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 24: Mechanical Fill Level And Flow Indicator
After that the fill level is measured at every start of the aquaduct and is shown on the display as well as in the software. - 24 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 25: Maintenance And Care Instructions
If you do have any more questions we will be happy to help you per e- mail or in our support-forum. © 2007 Aqua Computer GmbH & Co. KG - 25 - Gelliehäuser Str. 1, 37130 Gleichen... - Page 26 AQUADUCT - 26 - Aqua Computer GmbH & Co. KG © 2007 Gelliehäuser Str. 1, 37130 Gleichen...
