8.3. Connector „alarm" 8.3. Connector „alarm"
8.3. Connector „alarm" 8.3. Connector „alarm"

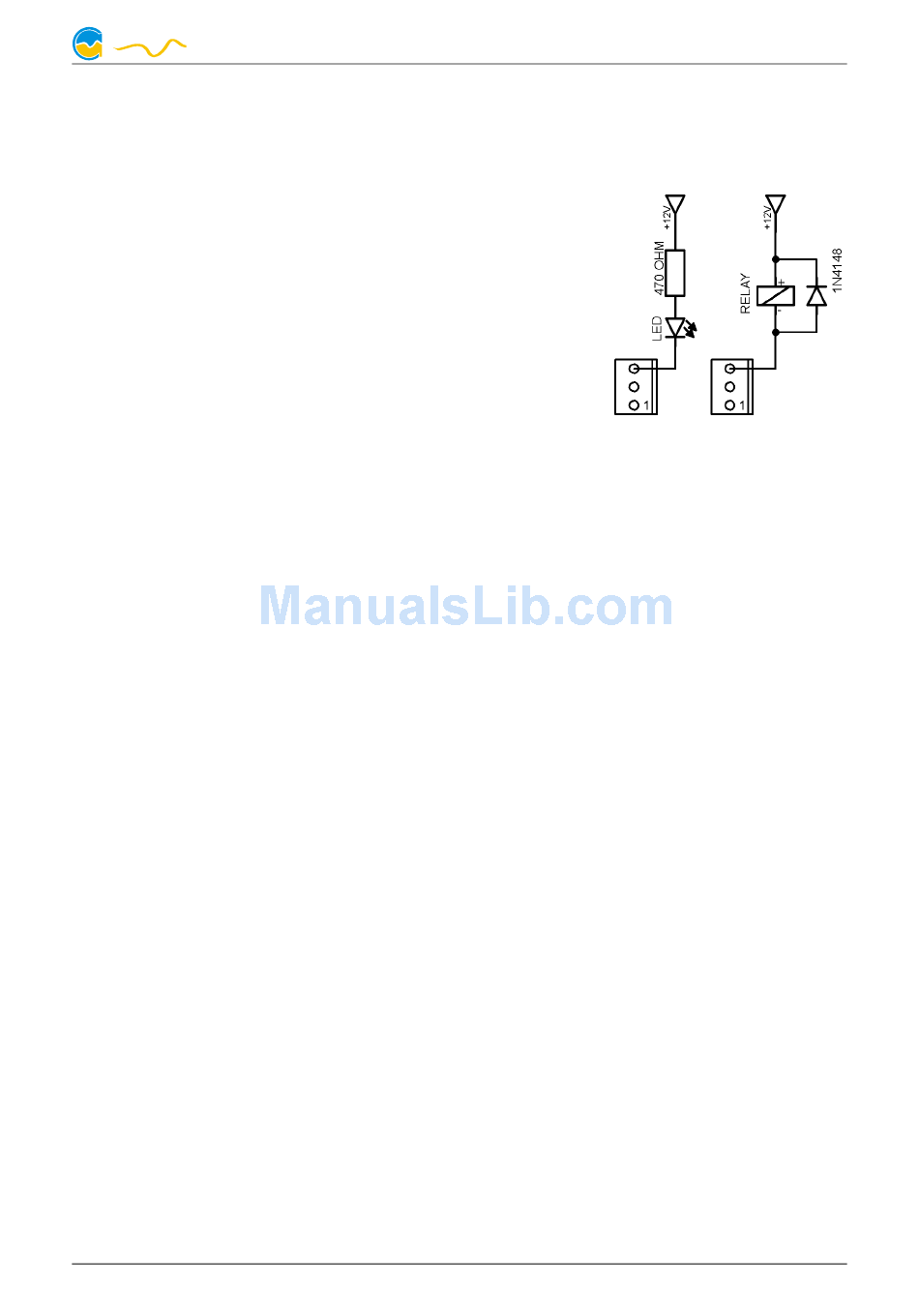

Depending on configuration, this header can either be used as a generic speed
signal or as a "open collector" switching signal.
The speed signal or the switching signal can be config-
ured to be deactivated or activated in case of an alarm
condition for monitoring purposes. For example, a
speed signal cable (93111) can be used to connect this
header to the CPU fan header of your motherboard.
Depending on on the type of motherboard and BIOS
settings, emergency shutdown of the PC upon alarm
condition or an acoustic alarm may be initiated. Please
refer to the motherboard manual for details on function-
ality and BIOS settings.
Alternatively, if configured as "power switch (53217)", this connector can be con-
nected to the power switch header of the motherboard using an additional special-
ized cable (art. 53217, not included in delivery).
Pin assignment: Pin 1: GND
Pin 2: not connected
Pin 3: RPM/open collector max. 30 V / 100 mA
8.4. Connector „temp" 8.4. Connector „temp" 8.4. Connector „temp" 8.4. Connector „temp"
Connector for a temperature sensor.
Compatible sensors:
Temperature sensor inline G1/4 (53066)
●
Temperature sensor inner/outer thread G1/4 (53067)
●
Temperature sensor G1/4 (53147)
●
Temperature sensor plug&cool (53025)
●
Temperature sensor 70 cm (53026)
●

9. aquasuite software

9. aquasuite software 9. aquasuite software 9. aquasuite software
The Windows software aquasuite is an extensive software suite and can be used
for configuration and monitoring. The software is not required for operation
though. All configuration parameters can be saved into the device's memory, so
after initial configuration, the alarm connector can be used independently from an
USB or aquabus connection (providing that power is supplied to the device).
Please note: Depending on the type of product you are using, some features may
not be available for your device.
© 2012-2016 Aqua Computer GmbH & Co. KG
Gelliehäuser Str. 1, 37130 Gleichen
MPS
- 11 -
