the cable. For further electrical connections and configuration of the pump,
please refer to chapter eight and following chapters.

7.5. Approved coolants

7.5. Approved coolants
7.5. Approved coolants 7.5. Approved coolants
The D5 pump motor may solely be used with either Aqua Computer Double Pro-
tect Ultra or a (automotive) coolant based on water and glycol!

8. Electrical connectors

8. Electrical connectors
8. Electrical connectors 8. Electrical connectors
ATTENTION: Completely turn off your power
supply or disconnect the mains power cord
from the wall outlet before connecting or dis-
connecting any cables to/from the device!
8.1. Connector „USB" 8.1. Connector „USB"
8.1. Connector „USB" 8.1. Connector „USB"

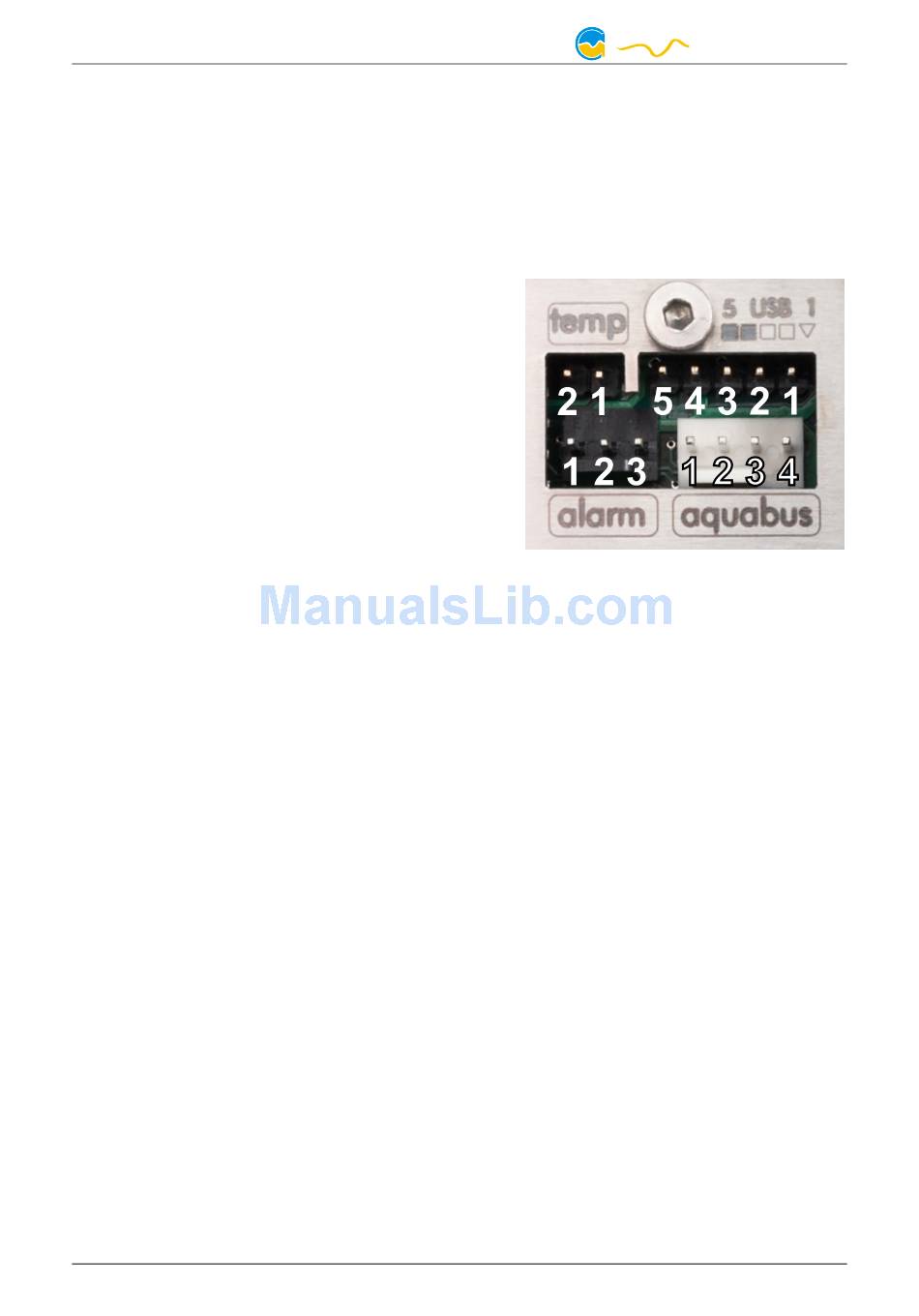

This connector is used for USB communication
to the PC and for power supply. Connect to an
internal USB header of your motherboard. Take special care to make sure the pin
alignment matches your motherboard!
Pin assignment: Pin 1: +5 V(red)
Pin 2: D-
Pin 3: D+ (green)
Pin 4: GND(black)
Pin 5: GND
8.2. Connector „aquabus" 8.2. Connector „aquabus" 8.2. Connector „aquabus" 8.2. Connector „aquabus"
Connectors for communication with other devices from Aqua Computer. If con-
nected to an aquaero 5/6 controller by a 4 pin aquabus cable (53122), the USB
connection to the PC may be disconnected after initial configuration. In this case,
power will be supplied through the aquabus connection from the aquaero 5/6.
Compatible devices:
aquaero 6 XT (53146, 53206)
●
aquaero 6 PRO (53145)
●
aquaero 6 LT (53234)
●
aquaero 5 XT (53125, 53089)
●
aquaero 5 PRO (53090)
●
aquaero 5 LT (53095)
●
Pin assignment: Pin 1: GND
Pin 2: SDA
Pin 3: SCL
Pin 4: +5 V
- 10 -
(white)
