FC 300 Instruction Manual

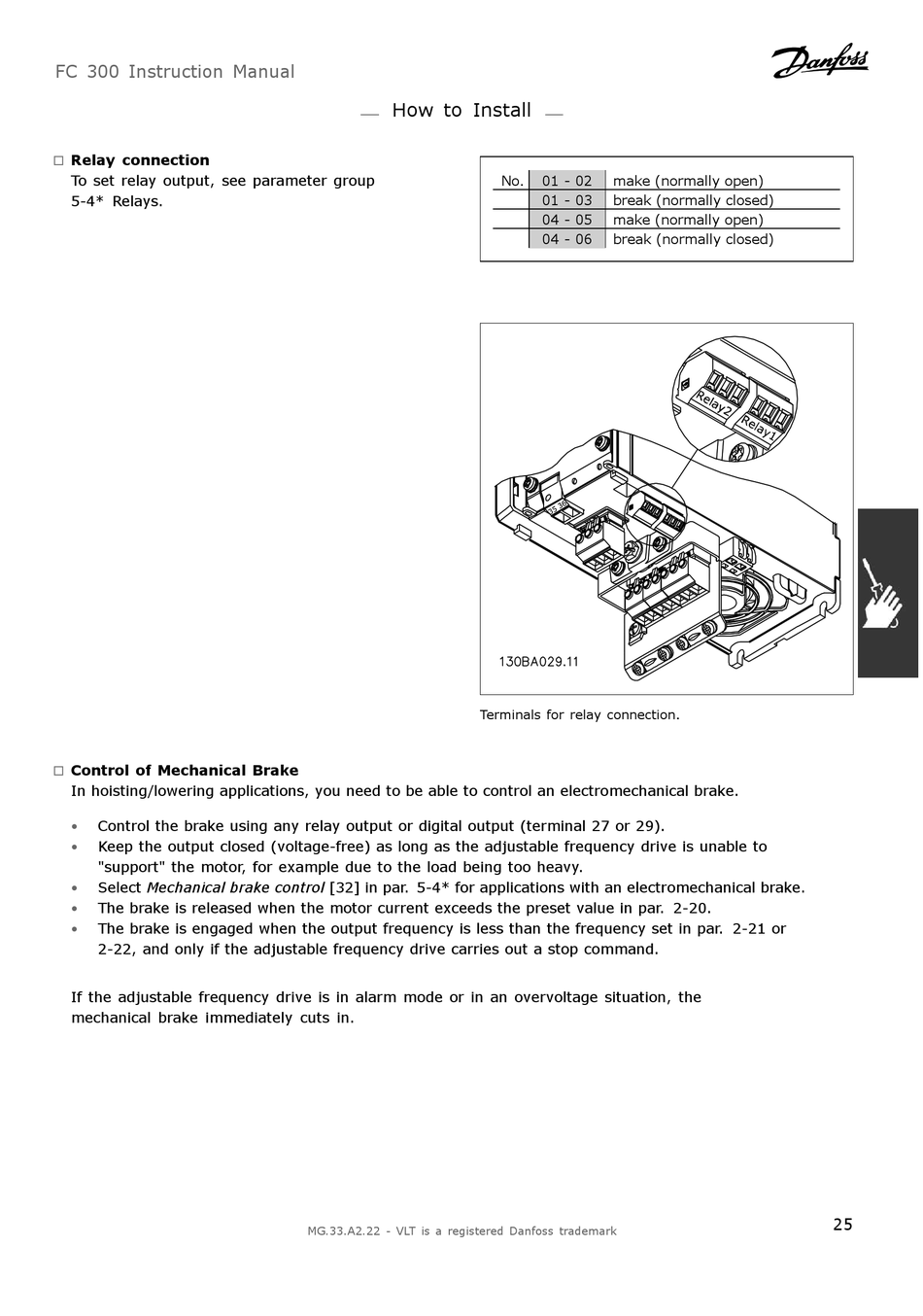

Relay connection

"
To set relay output, see parameter group
5-4* Relays.

Control of Mechanical Brake

"
In hoisting/lowering applications, you need to be able to control an electromechanical brake.
Control the brake using any relay output or digital output (terminal 27 or 29).
•
Keep the output closed (voltage-free) as long as the adjustable frequency drive is unable to
•
"support" the motor, for example due to the load being too heavy.
Select Mechanical brake control [32] in par. 5-4* for applications with an electromechanical brake.
•
• The brake is released when the motor current exceeds the preset value in par. 2-20.
The brake is engaged when the output frequency is less than the frequency set in par. 2-21 or
•
2-22, and only if the adjustable frequency drive carries out a stop command.
If the adjustable frequency drive is in alarm mode or in an overvoltage situation, the
mechanical brake immediately cuts in.
How to Install
Terminals for relay connection.
MG.33.A2.22 - VLT is a registered Danfoss trademark
No. 01 - 02 make (normally open)
01 - 03 break (normally closed)
04 - 05 make (normally open)
04 - 06 break (normally closed)
