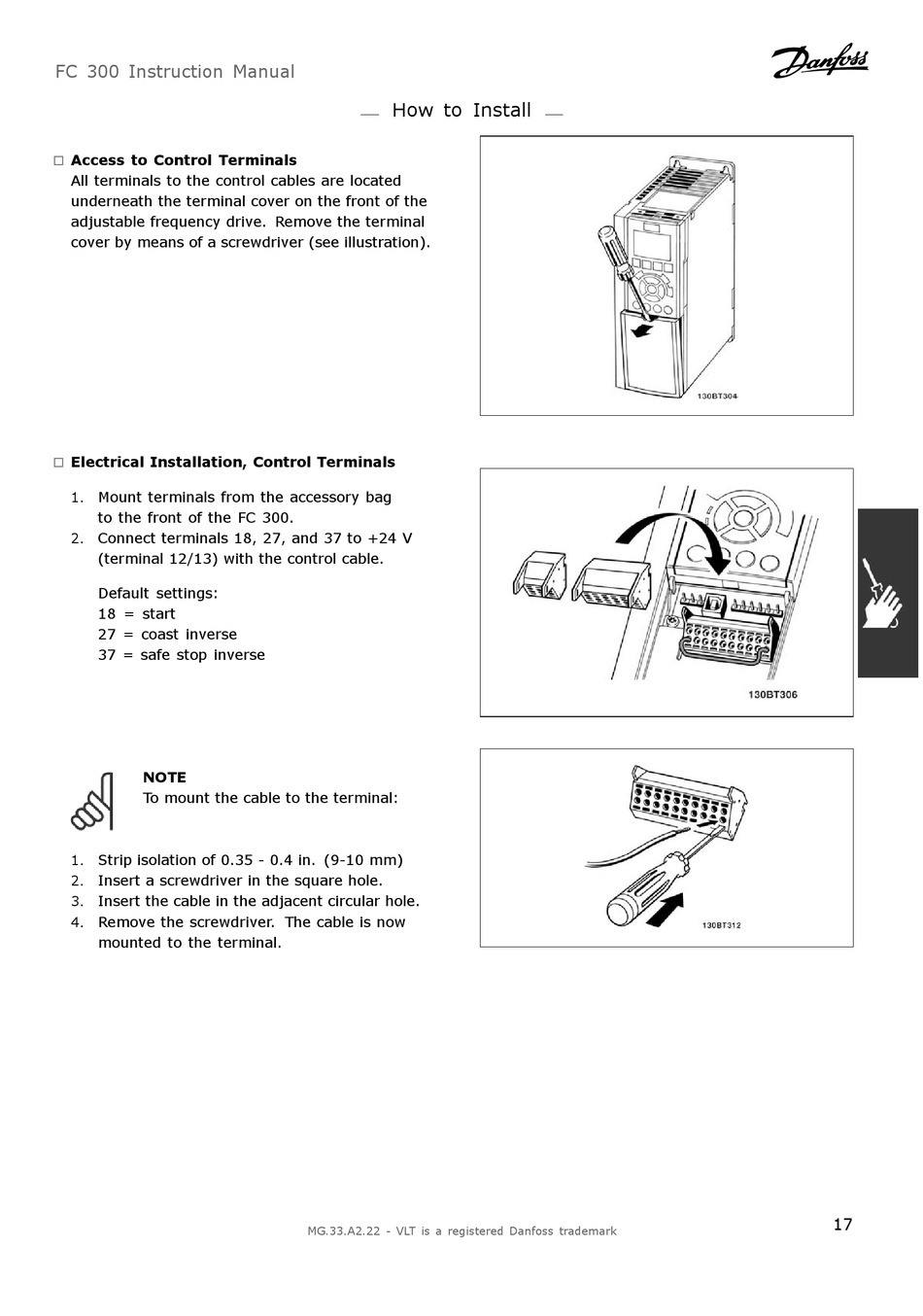

FC 300 Instruction Manual
Access to Control Terminals
"
All terminals to the control cables are located
underneath the terminal cover on the front of the
adjustable frequency drive. Remove the terminal
cover by means of a screwdriver (see illustration).
Electrical Installation, Control Terminals
"
Mount terminals from the accessory bag
1.
to the front of the FC 300.
Connect terminals 18, 27, and 37 to +24 V
2.
(terminal 12/13) with the control cable.
Default settings:
18 = start
27 = coast inverse
37 = safe stop inverse
NOTE
To mount the cable to the terminal:
Strip isolation of 0.35 - 0.4 in. (9-10 mm)
1.
Insert a screwdriver in the square hole.
2.
3.
Insert the cable in the adjacent circular hole.
Remove the screwdriver. The cable is now
4.
mounted to the terminal.
How to Install
MG.33.A2.22 - VLT is a registered Danfoss trademark
17
