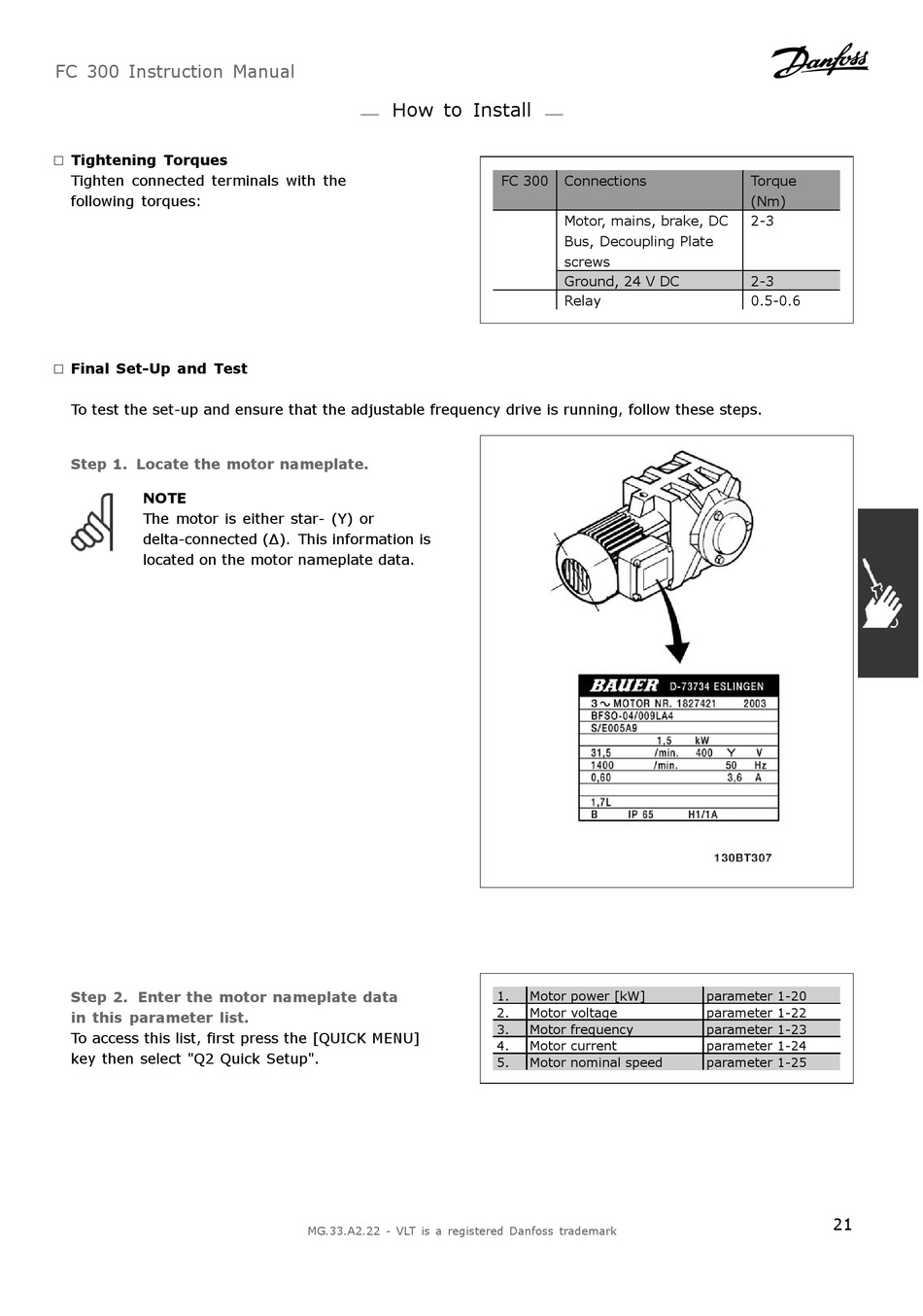

Tightening Torques
"
Tighten connected terminals with the
following torques:

Final Set-Up and Test

"
To test the set-up and ensure that the adjustable frequency drive is running, follow these steps.
Step 1. Locate the motor nameplate.
NOTE
The motor is either star- (Y) or
delta-connected (∆). This information is
located on the motor nameplate data.
Step 2. Enter the motor nameplate data
in this parameter list.
To access this list, first press the [QUICK MENU]
key then select "Q2 Quick Setup".
How to Install
MG.33.A2.22 - VLT is a registered Danfoss trademark
FC 300 Connections
Motor, mains, brake, DC
Bus, Decoupling Plate
screws
Ground, 24 V DC
Relay
1. Motor power [kW]
2. Motor voltage
3. Motor frequency
4. Motor current
5. Motor nominal speed
Torque
(Nm)
2-3
2-3
0.5-0.6
parameter 1-20
parameter 1-22
parameter 1-23
parameter 1-24
parameter 1-25
