- Page 1 AtlonA 1x4 SDI/HD-SDI/ 3G HD-SDI Distribution Amplifier User’s Manual MODEL: AT-3GSDI-14...
- Page 2 R e v . 0 9 1 1...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Introduction ................. 1 2. Features ................ 3. Package Contents ................. 4. Specifications ................ 5. Panel Description ................. 6. Installation ............... 7. Safety Information ............... 8. Warranty ............... 6 9. Atlona Product Registration ..............7... -
Page 4: Introduction

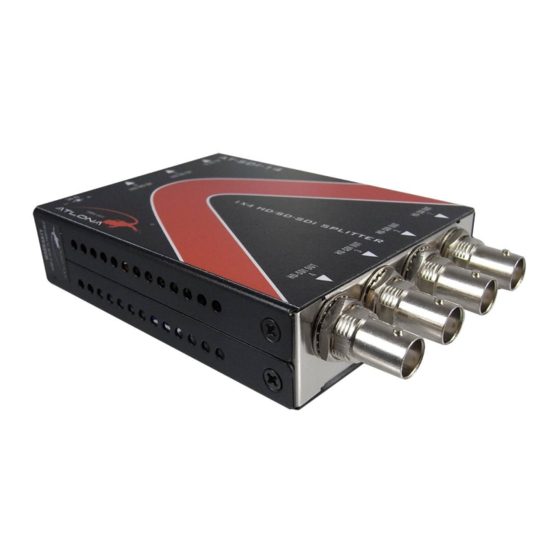

(SMPTE 259M, HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M) signals. It takes one input and distributes the signal to four identical outputs. The Atlona SDI/HD-SDI/3G HD-SDI distribution amplifier can work with High Resolutions up to 1080p and full bandwidth up to 3Gbps. -
Page 5: Specifications
SPECIFICATIONS Model name AT-3GSDI-14 Technical SDI standards SDI, HD-SDI and 3G HD-SDI Auto SDI / HD-SDI detection SMPTE 259M, SMPTE 292M, SMPTE 424M Supported protocols HDTV (1.485Gbps, 1.485/1.001Gbps and 3Gbps) Video bandwidth 1.485Gpbs, 1.485/1.001Gbps and 3Gbps 270 / 1483 / 1485 / 2970Mbps Data rates [HD] 720p50/59.94/60;... -
Page 6: Panel Description
PANEL DESCRIPTION PANEL DESCRIPTION AT-3GSDI-14 [Front Panel] 1. SDI / HD-SDI/3G HD-SD input 2. Power on/off indicator 3. Status 4. +12V DC power jack AT-3GSDI-14 [Rear Panel] 5. 3G/HD/SD-SDI output 1/LOOP OUT 6. 3G/HD/SD-SDI output 2 7. 3G/HD/SD-SDI output 3... -
Page 7: Installation
3G/HD/SD SDI 3G/HD/SD SDI 3G/HD/SD SDI 3G/HD/SD 3G/HD/SD SDI... -
Page 8: Safety Information
Attempting to do so could expose you to Precautions dangerous electrical shock or other hazards. It may also cause damage to your AT-3GSDI-14. FCC Regulations state that any unauthorized Opening the product will void the warranty. changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this... -
Page 9: Warranty
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. -
Page 10: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
