- Page 1 SB-5470 4x2 Component Video/Stereo Audio HDTV Matrix Routing Switcher...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. - Page 3 Component Digital Video/Audio Matrix Switcher Series Thank you for purchasing the SB-5470 Component Video/Audio Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this switcher.
-
Page 4: Features And Specifications
FEATURES & SPECIFICATIONS FEATURES This device can be operated in two modes: IR Remote control or Manual. In the selected by pushing the IR key/Manual button on the front panel to the Video sources position, So, if you have (4) devices hooked up to the (4) inputs and only one has its power turned on, that device will be switched to the output by IR Remote control. -
Page 5: Typical Hookup And Operation

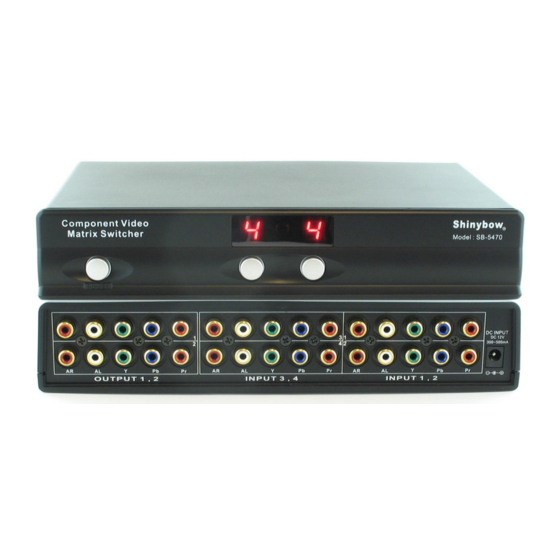

TYPICAL HOOKUP AND OPERATION SB-5470 Front View: Rear View: Power SW : ON/OFF Input : 4x Component Video/Audio IR : Remote Controller Output: 2x Component Video/Audio LED display Power DC Input : DC12V@300ma ~ 500mA Video Select Buttons Safeguards and Precautions A. -
Page 6: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 7 THIS PAGE IS INTENTIONALLY LEFT BLANK.
